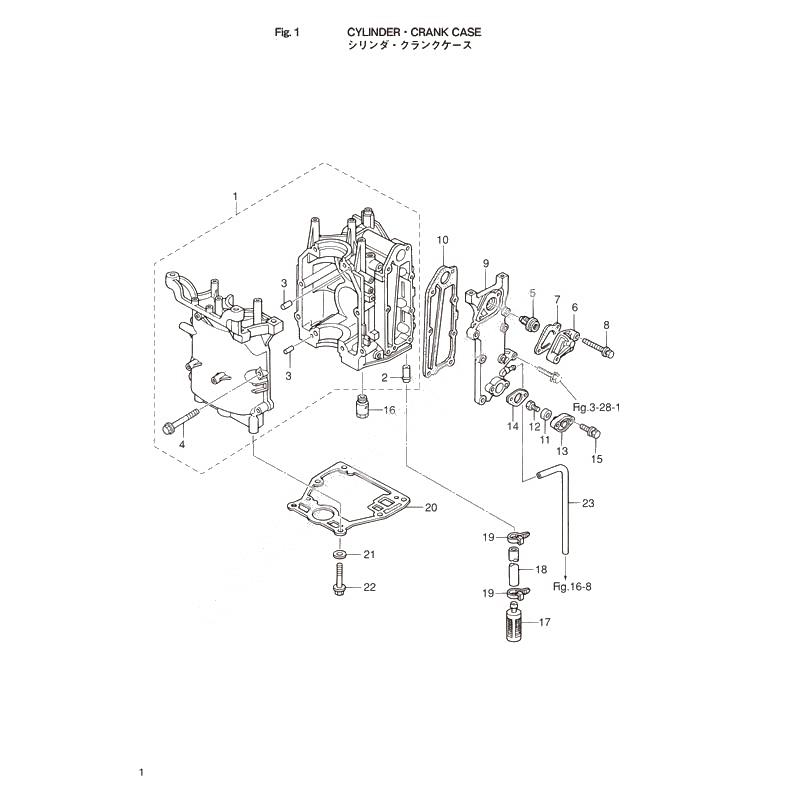

Cylinder crank case для Tohatsu MFS8A3 - 2015 года выпуска`
-
№АртикулНазвание
-
13V1B01100-0 Cylinder-Crankcase Ass'yCylinder-Crankcase Ass'y
-
23H8-02093-0 Nipple, 10-32Nipple, 10-32
-
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
43H8-01012-1 ボルト 8-50ボルト 8-50
-
53NV-01030-0 Thermostat
マーク 60Thermostat
マーク 60 -
63H6B01031-0 Cap,ThermostatCap,Thermostat
-
7346-01032-0 ガスケットサ-モスタットガスケットサ-モスタット
-
89101E3-5640 New partNew part
-
93V1B02301-0 Exhaust Cover (Outer)Exhaust Cover (Outer)
-
103V1-02305-0 Exhaust Cover GasketExhaust Cover Gasket
-
11369-60218-1 AnodeAnode
-
12910103-0616 BoltBolt
-
133H8B01143-1 Cap anodeCap anode
-
143R3-01144-0 GasketGasket
-
159101E3-5620 BoltBolt
-
163V2-07620-0 Pluger Ass'yPluger Ass'y
-
173V1-07410-1 Oil strainerOil strainer
-
1898AH-951000 ゴムホース
バルク部品(標準のホース長は120mm)ゴムホース
バルク部品(標準のホース長は120mm) -
19369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
203V1-01303-0 Gasket engine baseGasket engine base
-
219401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
223BJ-61017-1 New partNew part
-
2398AB-501000 ゴムホース 内径5mm,長さ1m
バルク部品(標準のホース長は330mm)ゴムホース 内径5mm,長さ1m
バルク部品(標準のホース長は330mm)
