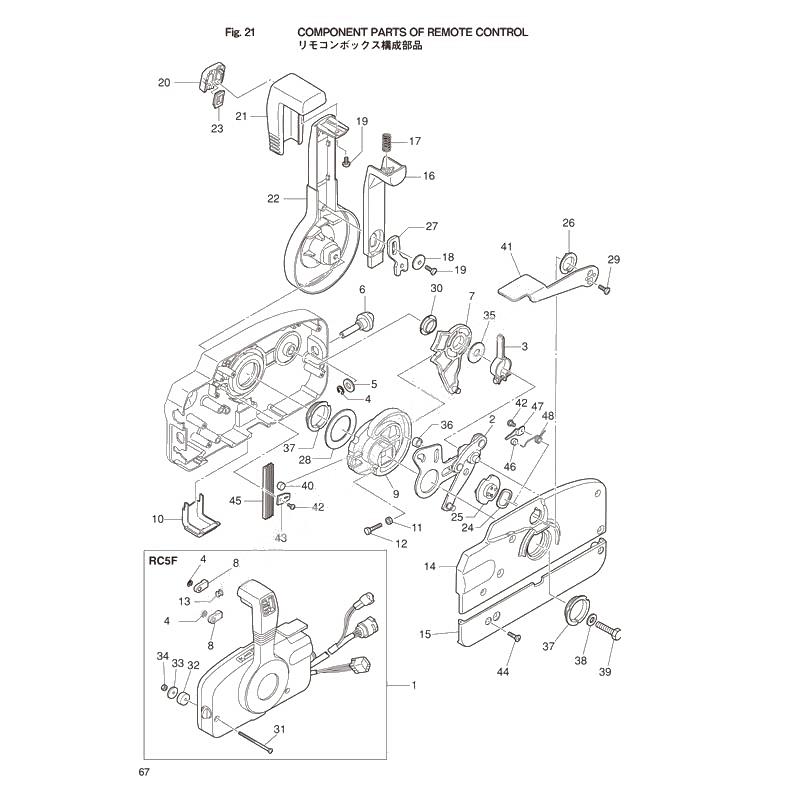

Component parts of remote control для Tohatsu MFS50A - 2015 года выпуска
-
№АртикулНазвание
-
13GFQ84500-0 リモートコントロールボックス (RC5F)
RC5F EPモデルリモートコントロールボックス (RC5F)
RC5F EPモデル -
23A3-84365-1 Throttle ArmThrottle Arm
-
33A3-84428-0 Arm Throttle FrictionArm Throttle Friction
-
4945303-0600 E-RingE-Ring
-
5353-84394-0 WasherWasher
-
63A3-84427-0 Adjust ScrewAdjust Screw
-
73A3-84381-0 Shift Gear Ass'yShift Gear Ass'y
-
83A3-83314-2 Terminal EyeTerminal Eye
-
93A3-84364-2 Drive GearDrive Gear
-
103A3-84429-0 Wire CoverWire Cover
-
11930103-0500 NutNut
-
12910103-0525 BoltBolt
-
133A3-84376-0 GrommetGrommet
-
143B7Q84441-0 Rear housingRear housing
-
153B7Q84366-0 Rear panelRear panel
-
163A3-84401-0 Arm Neutral LockArm Neutral Lock
-
173A3-84403-0 Spring Neutral LockSpring Neutral Lock
-
183A3-84407-0 Washer Lock ArmWasher Lock Arm
-
19921503-0510 ScrewScrew
-
203A3-84451-0 Finisher TiltFinisher Tilt
-
213A3-84404-0 GripGrip
-
223B7Q84343-0 コントロールレバーコントロールレバー
-
233A3-84452-0 Plug Tilt SwitchPlug Tilt Switch
-
243A3-84368-0 Wave WasherWave Washer
-
253A3-84391-0 Drum Free AccelDrum Free Accel
-
263A3-84435-0 Bushing EBushing E
-
273A3-84406-0 Plate, Lock ArmPlate, Lock Arm
-
283A3-84422-0 Thrust PlateThrust Plate
-
29921503-5316 ScrewScrew
-
303A3-84432-0 Bushing BBushing B
-
313A3-84375-0 ScrewScrew
-
323A3-84374-0 SpacerSpacer
-
33353-84371-0 WasherWasher
-
34930103-0600 NutNut
-
353A3-84383-0 WasherWasher
-
363A3-84421-0 RollerRoller
-
373A3-84431-0 Bushing ABushing A
-
38940103-0800 WasherWasher
-
393A3-84442-0 BoltBolt
-
40353-84388-0 Roller Throttle DrumRoller Throttle Drum
-
413B7Q84312-0 Free throttle leverFree throttle lever
-
42921503-0406 ScrewScrew
-
433A3-84423-0 Retainer DetentRetainer Detent
-
44921603-0518 ScrewScrew
-
453A3-84307-0 Spring DetentSpring Detent
-
463A3-84424-0 Roller Free AccelRoller Free Accel
-
473A3-84426-0 Retainer RollerRetainer Roller
-
483A3-84425-0 Spring Free AccelSpring Free Accel
-
13GFQ84500-0 リモートコントロールボックス (RC5F)
RC5F EPモデルリモートコントロールボックス (RC5F)
RC5F EPモデル -
23A3-84365-1 Throttle ArmThrottle Arm
-
33A3-84428-0 Arm Throttle FrictionArm Throttle Friction
-
4945303-0600 E-RingE-Ring
-
5353-84394-0 WasherWasher
-
63A3-84427-0 Adjust ScrewAdjust Screw
-
73A3-84381-0 Shift Gear Ass'yShift Gear Ass'y
-
83A3-83314-2 Terminal EyeTerminal Eye
-
93A3-84364-2 Drive GearDrive Gear
-
103A3-84429-0 Wire CoverWire Cover
-
11930103-0500 NutNut
-
12910103-0525 BoltBolt
-
133A3-84376-0 GrommetGrommet
-
143B7Q84441-0 Rear housingRear housing
-
153B7Q84366-0 Rear panelRear panel
-
163A3-84401-0 Arm Neutral LockArm Neutral Lock
-
173A3-84403-0 Spring Neutral LockSpring Neutral Lock
-
183A3-84407-0 Washer Lock ArmWasher Lock Arm
-
19921503-0510 ScrewScrew
-
203A3-84451-0 Finisher TiltFinisher Tilt
-
213A3-84404-0 GripGrip
-
223B7Q84343-0 コントロールレバーコントロールレバー
-
233A3-84452-0 Plug Tilt SwitchPlug Tilt Switch
-
243A3-84368-0 Wave WasherWave Washer
-
253A3-84391-0 Drum Free AccelDrum Free Accel
-
263A3-84435-0 Bushing EBushing E
-
273A3-84406-0 Plate, Lock ArmPlate, Lock Arm
-
283A3-84422-0 Thrust PlateThrust Plate
-
29921503-5316 ScrewScrew
-
303A3-84432-0 Bushing BBushing B
-
313A3-84375-0 ScrewScrew
-
323A3-84374-0 SpacerSpacer
-
33353-84371-0 WasherWasher
-
34930103-0600 NutNut
-
353A3-84383-0 WasherWasher
-
363A3-84421-0 RollerRoller
-
373A3-84431-0 Bushing ABushing A
-
38940103-0800 WasherWasher
-
393A3-84442-0 BoltBolt
-
40353-84388-0 Roller Throttle DrumRoller Throttle Drum
-
413B7Q84312-0 Free throttle leverFree throttle lever
-
42921503-0406 ScrewScrew
-
433A3-84423-0 Retainer DetentRetainer Detent
-
44921603-0518 ScrewScrew
-
453A3-84307-0 Spring DetentSpring Detent
-
463A3-84424-0 Roller Free AccelRoller Free Accel
-
473A3-84426-0 Retainer RollerRetainer Roller
-
483A3-84425-0 Spring Free AccelSpring Free Accel
