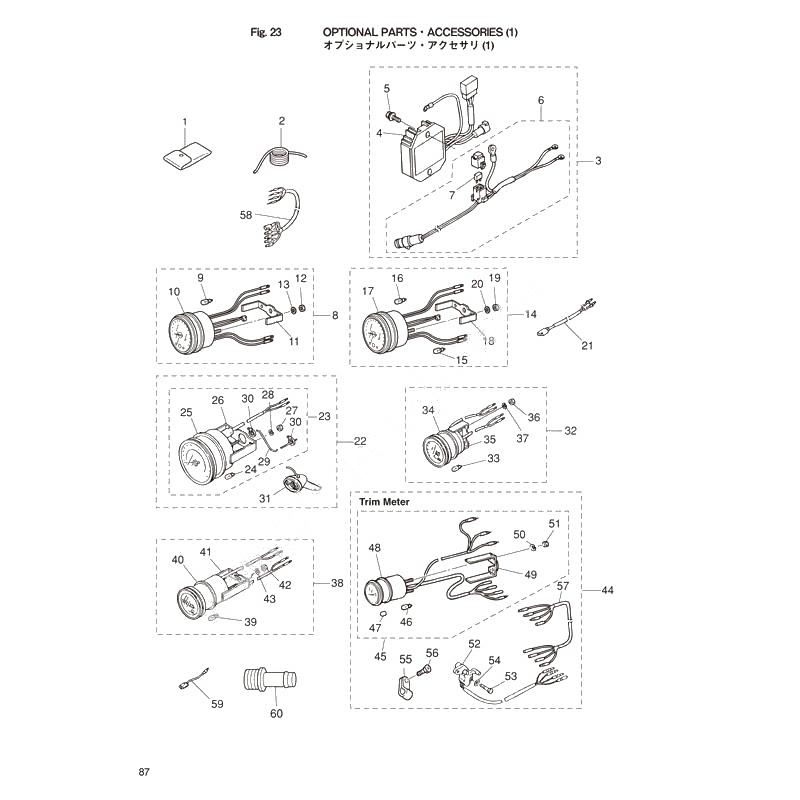

Optional parts accessories (1) для Tohatsu MFS30C - 2015 года выпуска`
-
№АртикулНазвание
-
13BJ-72100-0 ツールキットツールキット
-
23B7-72201-0 Rope, 6-1600Rope, 6-1600
-
33AC-76160-2 CHARGING KITCHARGING KIT
-
43AC-76065-2 レクチファイヤ コンプリートレクチファイヤ コンプリート
-
3AC-76065-0 レクチファイヤ コンプリートレクチファイヤ コンプリート
-
5910103-5625 Bolt
レクチファイアBolt
レクチファイア -
63AC-76161-0 Extension CordExtension Cord
-
73T5-76247-0 Fuse 20AFuse 20A
-
83B7-72530-2 Tachometer Ass'yTachometer Ass'y
-
93B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
103B7-72656-0 Damper, MeterDamper, Meter
-
113B7-72661-0 Plate, FittingPlate, Fitting
-
12930103-0500 NutNut
-
13941303-0500 Spring WasherSpring Washer
-
143N8-72640-1 Tachometer Ass'y タコメーター (オイルランプ付)Tachometer Ass'y タコメーター (オイルランプ付)
-
153B7-72658-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
163B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
173B7-72656-0 Damper, MeterDamper, Meter
-
183B7-72661-0 Plate, FittingPlate, Fitting
-
19930103-0500 NutNut
-
20941303-0500 Spring WasherSpring Washer
-
21361-72539-0 Lead Wire TachometerLead Wire Tachometer
-
223E0-72644-0 Speedometer 75mph KitSpeedometer 75mph Kit
-
233E0-72649-0 Speedometer 75mph Kit BSpeedometer 75mph Kit B
-
243B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
253B7-72656-0 Damper, MeterDamper, Meter
-
263B7-72661-0 Plate, FittingPlate, Fitting
-
27930203-0500 NutNut
-
28941303-0500 Spring WasherSpring Washer
-
293B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
303B7-72651-0 Band, SpeedometerBand, Speedometer
-
313B7-72643-0 Speedometer SenderSpeedometer Sender
-
323E0-72529-0 Voltmeter Ass'yVoltmeter Ass'y
-
333B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
343B7-72655-0 Damper, MeterDamper, Meter
-
353B7-72662-0 Plate, FittingPlate, Fitting
-
36930203-0400 NutNut
-
37941303-0400 Spring WasherSpring Washer
-
383E0-72524-0 Hourmeter Ass'yHourmeter Ass'y
-
393B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
403B7-72655-0 Damper, MeterDamper, Meter
-
413B7-72662-0 Plate, FittingPlate, Fitting
-
42930203-0400 NutNut
-
43941303-0400 Spring WasherSpring Washer
-
443R0-72525-2 トリムメーターキットトリムメーターキット
-
453T1-72571-0 トリムメーターアッシトリムメーターアッシ
-
463T1-72659-0 Bulb meterBulb meter
-
473T1-72653-0 Cap meter bulbCap meter bulb
-
483B7-72655-0 Damper, MeterDamper, Meter
-
493T1-72665-0 Plate FittingPlate Fitting
-
50941303-0400 Spring WasherSpring Washer
-
51930203-0400 NutNut
-
523Z4-72574-0 トリムセンサトリムセンサ
-
53910103-0620 BoltBolt
-
543C8-66308-0 ワッシャ 6-16-1.5ワッシャ 6-16-1.5
-
55336-06973-0 Clamp Lead WireClamp Lead Wire
-
56921503-5612 ScrewScrew
-
573T1-72573-0 エクテンションコード トリムセンサエクテンションコード トリムセンサ
-
583R0-72537-1 Read Wire,MeterRead Wire,Meter
-
59353-72546-0 Assist Cord(Red)Assist Cord(Red)
-
603T1-72405-0 Hose jointHose joint
