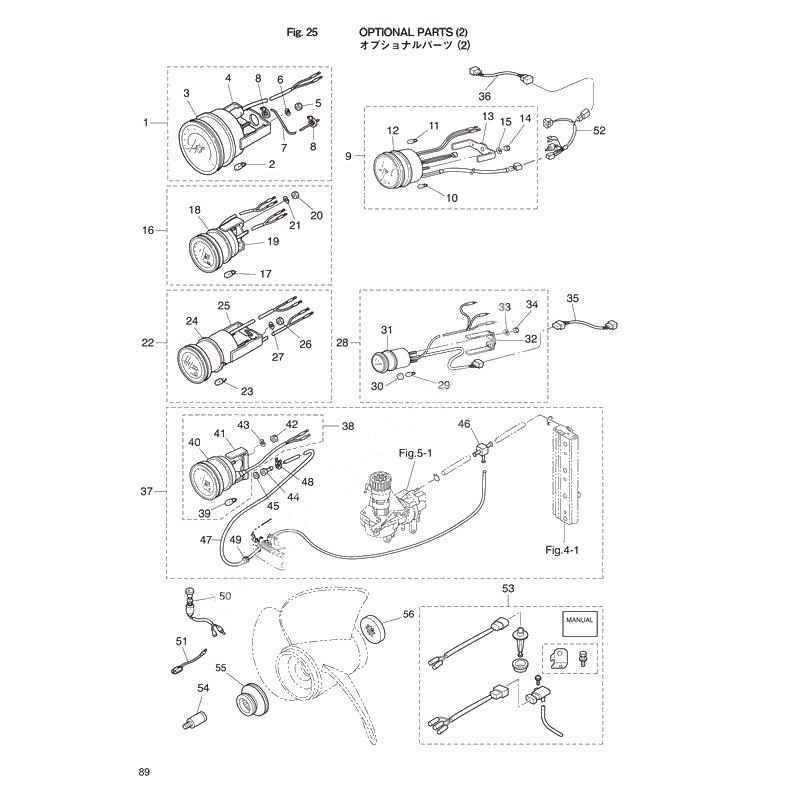

Optional parts (2) для Tohatsu MD90C2 - 2015 года выпуска`
-
№АртикулНазвание
-
13E0-72648-0 Speedometer 50mph Kit BSpeedometer 50mph Kit B
-
23B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
33B7-72656-0 Damper, MeterDamper, Meter
-
43B7-72661-0 Plate, FittingPlate, Fitting
-
5930203-0500 NutNut
-
6941303-0500 Spring WasherSpring Washer
-
73B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
83B7-72651-0 Band, SpeedometerBand, Speedometer
-
93Z5-72640-1 Tachometer Ass'yTachometer Ass'y
-
103B7-72658-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
113B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
123B7-72656-0 Damper, MeterDamper, Meter
-
133B7-72661-0 Plate, FittingPlate, Fitting
-
14930203-0500 NutNut
-
15941303-0500 Spring WasherSpring Washer
-
163E0-72529-0 Voltmeter Ass'yVoltmeter Ass'y
-
173B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
183B7-72655-0 Damper, MeterDamper, Meter
-
193B7-72662-0 Plate, FittingPlate, Fitting
-
20930203-0400 NutNut
-
21941303-0400 Spring WasherSpring Washer
-
223E0-72524-0 Hourmeter Ass'yHourmeter Ass'y
-
233B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
243B7-72655-0 Damper, MeterDamper, Meter
-
253B7-72664-0 Plate FittingPlate Fitting
-
26930203-0400 NutNut
-
27941303-0400 Spring WasherSpring Washer
-
283T1-72571-0 トリムメーターアッシトリムメーターアッシ
-
293T1-72659-0 Bulb meterBulb meter
-
303T1-72653-0 Cap meter bulbCap meter bulb
-
313B7-72655-0 Damper, MeterDamper, Meter
-
323T1-72665-0 Plate FittingPlate Fitting
-
33941303-0400 Spring WasherSpring Washer
-
34930203-0400 NutNut
-
353Z4-72573-0 エクテンションコード トリムセンセエクテンションコード トリムセンセ
-
363T5-76112-0 Extension Cord(2P)2m
2PExtension Cord(2P)2m
2P -
373E0-72527-0 Water Pressure Meter KitWater Pressure Meter Kit
-
383E0-72598-0 Water Pressure Meter Ass'yWater Pressure Meter Ass'y
-
393B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
403B7-72655-0 Damper, MeterDamper, Meter
-
413B7-72663-0 Plate, FittingPlate, Fitting
-
42930203-0500 NutNut
-
43941303-0500 Spring WasherSpring Washer
-
443B7-72641-0 Nipple, Water Pressure MeterNipple, Water Pressure Meter
-
45121-33159-0 Gasket 2-8-1Gasket 2-8-1
-
46394-70013-0 Pipu Joint T-typePipu Joint T-type
-
4798AB-501000 ゴムホース 内径5mm,長さ1m
バルブ部品標準ホース長6000mmゴムホース 内径5mm,長さ1m
バルブ部品標準ホース長6000mm -
48338-02215-0 ClipClip
-
49345-67193-0 Grommet,16-2.5Grommet,16-2.5
-
50353-72521-1 Switch Meter LampSwitch Meter Lamp
-
51353-72546-0 Assist Cord(Red)Assist Cord(Red)
-
523T5-72537-1 リードワイヤーメータリードワイヤーメータ
-
533GF-10230-0 Altitude adjustment kitAltitude adjustment kit
-
543B7-60007-0 Flushing PlugFlushing Plug
-
553B7-64231-2 スラストホルダ
OPT テストプロペラスラストホルダ
OPT テストプロペラ -
563B7-64233-1 ストッパ
OPT テストプロペラストッパ
OPT テストプロペラ
