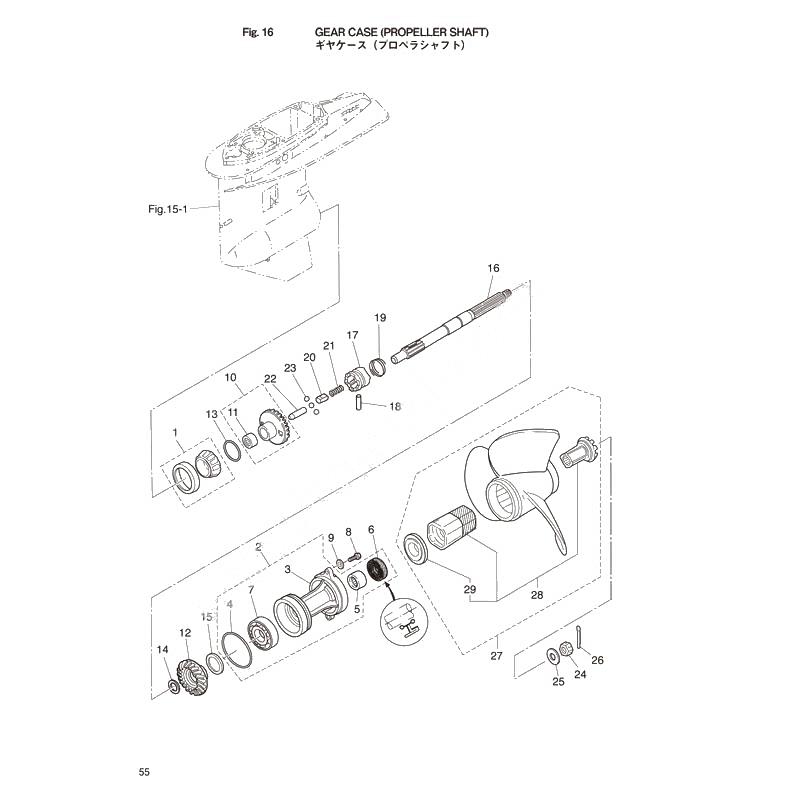

Gear case (proppeller shaft) для Tohatsu MD75C2 - 2015 года выпуска`
-
№АртикулНазвание
-
13C7-60215-0 Bearing 30209Bearing 30209
-
23B7Q87323-1 Propeller shaft housing assyPropeller shaft housing assy
-
33B7Q60101-1 Propeller shaft housingPropeller shaft housing
-
43B7-60103-0 O-RingO-Ring
-
53B7-60211-0 Needle Bearing, 30-40-30Needle Bearing, 30-40-30
-
63B7-60111-0 Oil SealOil Seal
-
79601-0-6208 Ball BearingBall Bearing
-
83C7-60108-2 ボルト 8-30 プレコートボルト 8-30 プレコート
-
99402E3-0800 WasherWasher
-
940203-0800 WasherWasher
-
103FW-64010-0 ベベルギヤアッシ(A)ベベルギヤアッシ(A)
-
113B7-64011-0 Needle Bearing, 25-32-26Needle Bearing, 25-32-26
-
123Y7-64093-0 Bevel Gear CBevel Gear C
-
133B7-64016-0 Shim, 47-57-0.1
選択Shim, 47-57-0.1
選択 -
143B7-64035-0 Washer, t=3.0
選択Washer, t=3.0
選択 -
153B7-64037-0 Shim, 42-50-0.1
選択Shim, 42-50-0.1
選択 -
163B7-64211-0 Propeller ShaftPropeller Shaft
-
173T1-64215-2 ClutchClutch
-
183B7-64218-0 Clutch PinClutch Pin
-
193B7-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
203T1-64222-0 スプリングホルダークラッチスプリングホルダークラッチ
-
21346-64221-0 Spring ClutchSpring Clutch
-
223T1-64223-0 Push RodPush Rod
-
233T1-64224-0 BallBall
-
24353-64121-0 Nut PropellerNut Propeller
-
25345-64124-0 Washer 17-32-3Washer 17-32-3
-
26951503-0325 Split PinSplit Pin
-
273N4B64545-1 トーハツ純正プロペラ 12.8×21
OPT 3x324x533トーハツ純正プロペラ 12.8×21
OPT 3x324x533 -
283Y9-64238-0 Propeller Hub KitPropeller Hub Kit
-
293E0-64235-0 Foward Thrust WasherFoward Thrust Washer
