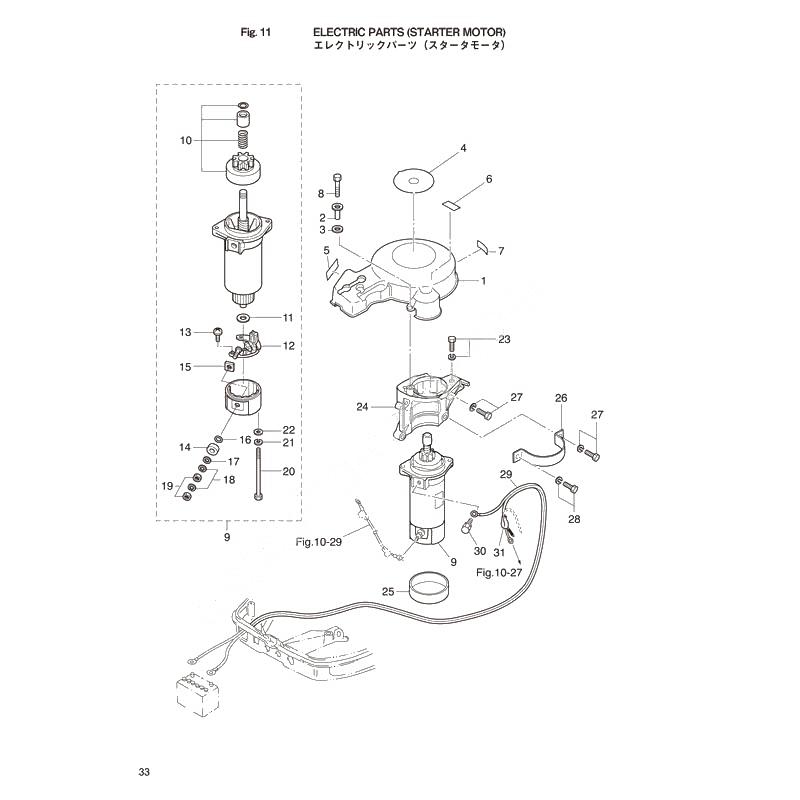

Electric parts (starter motor) для Tohatsu MD50B2 - 2015 года выпуска

№

Артикул

Название
1

3T5-06301-0 Cover, Ring Gear

Cover, Ring Gear
2

3GF-06304-0 カラ-

カラ-
3

3B7-06305-0 Mount Rubber, 9-16-4.3

Mount Rubber, 9-16-4.3
4

3R0-72181-0 Caution Label B

Caution Label B
5

3Y9-72194-0 Label Fuse

Label Fuse
6

3T5-72186-0 Label, Pressure

Label, Pressure
7

3FW-72026-0 Spark Plug Decal

Spark Plug Decal
8

910103-0625 Bolt

Bolt
9

3C8-76010-1 Starter Motor Ass'y

Starter Motor Ass'y
10

3C8-76015-0 Pinion Ass'y

Pinion Ass'y
11

3C8-75015-0 Washer

Washer
12

3C8-75014-0 Brush Holder Ass'y

Brush Holder Ass'y
13

921521-6408 Screw

Screw
14

3C8-75016-0 Bushing 1

Bushing 1
15

3C8-75017-0 Bushing 2

Bushing 2
16

3C8-75018-0 O-Ring

O-Ring
17

940103-0600 Washer

Washer
18

941303-0600 スプリングワッシャ

スプリングワッシャ
19

930203-0600 Nut

Nut
20

3C8-75019-0 Bolt

Bolt
21

941321-0500 Spring Washer

Spring Washer
22

940221-0500 Washer

Washer
23

910103-6825 Bolt

Bolt
24

3T5B05101-0 Bracket, Starter Motor

Bracket, Starter Motor
25

3C8-76007-0 Rubber Starter Motor

Rubber Starter Motor
26

3C8-76009-0 Band Starter Motor

Band Starter Motor
27

910103-6825 Bolt

Bolt
28

910103-6820 Bolt

Bolt
29

3B7-76120-2 Battery Cord

Battery Cord
30

910103-6616 Bolt

Bolt
31

3B7-76145-0 Terminal Cap

Terminal Cap
