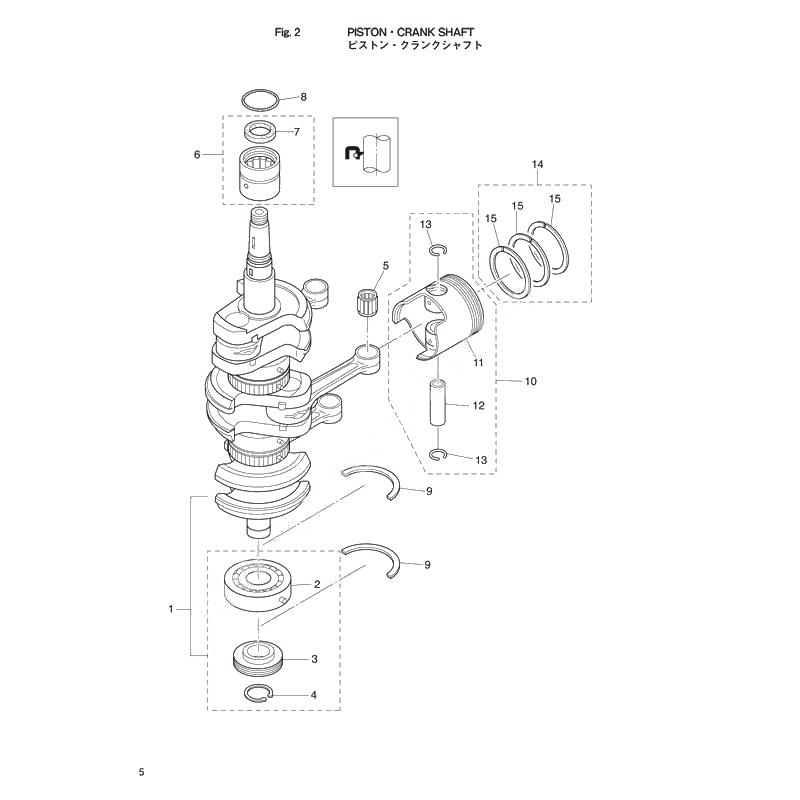

Piston crank shaft для Tohatsu MD40B2 - 2015 года выпуска`
-
№АртикулНазвание
-
13T5-00050-1 Crankshaft assyCrankshaft assy
-
23J2-00114-0 Bearing 6305
ロワーBearing 6305
ロワー -
33C8-09060-0 Drive Gear Oil PumpDrive Gear Oil Pump
-
4945107-2500 C-RingC-Ring
-
5345-00042-0 Needle Bearing 17-21-27Needle Bearing 17-21-27
-
63T5-00113-0 Main Bearing Upper
アッパーMain Bearing Upper
アッパー -
73T5-00121-0 Oil Seal 36-46-6Oil Seal 36-46-6
-
8353-00108-0 O-ring 2.4-44.7O-ring 2.4-44.7
-
9346-00115-0 Thrust Plate CrankshaftThrust Plate Crankshaft
-
103GF-87131-0 ピストンリペアキット (0.5 O/S)
オプションピストンリペアキット (0.5 O/S)
オプション -
113GF-00004-1 ピストン 0.5 O/C
オプションピストン 0.5 O/C
オプション -
123C8-00021-1 Piston PinPiston Pin
-
13334-00024-1 Clip, Piston PinClip, Piston Pin
-
143GF-87124-0 ピストンリングセット (0.5 O/S)
オプションピストンリングセット (0.5 O/S)
オプション -
153T5-00014-0 Piston Ring 1st (O.5mm O/S)
オプションPiston Ring 1st (O.5mm O/S)
オプション
