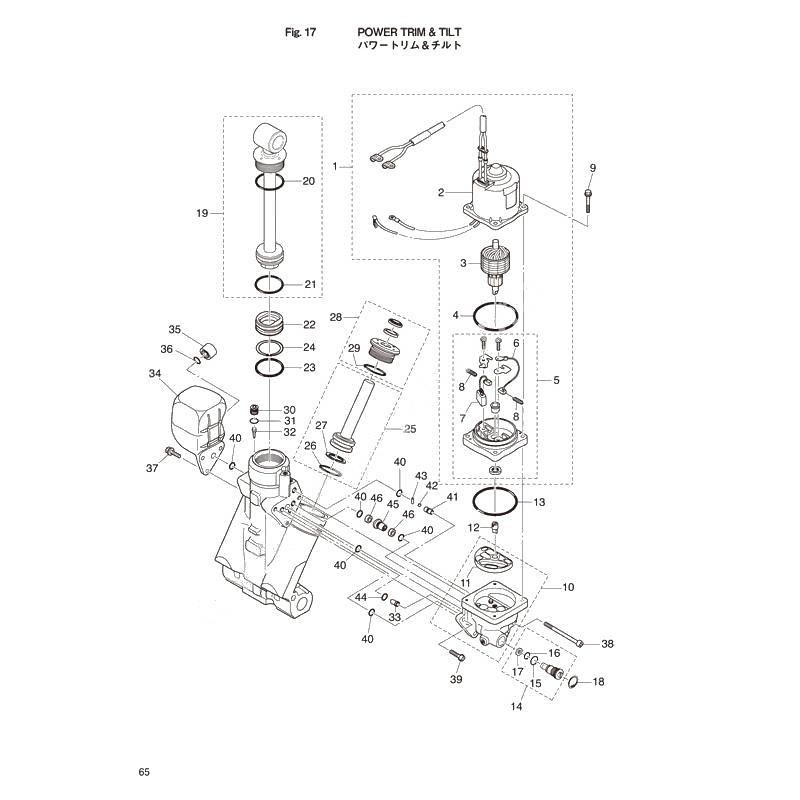

Power trim & tilt для Tohatsu MD115A2 - 2015 года выпуска`
-
№АртикулНазвание
-
13T1-77180-0 モーターアッシ (PTT)
Cable L=1250モーターアッシ (PTT)
Cable L=1250 -
23T1-77195-0 Yoke assyYoke assy
-
33E0-77190-0 Armature Ass'yArmature Ass'y
-
4353-77182-1 O-RingO-Ring
-
53E0-77192-0 Bracket Ass'yBracket Ass'y
-
63E0-77183-0 BrushBrush
-
7353-77191-0 BreakerBreaker
-
83E0-77184-0 Spring BrushSpring Brush
-
93E0-77199-1 New partNew part
-
103E0-77430-1 PumpPump
-
113E0-77434-0 Filter BFilter B
-
123E0-77163-0 Coupling PumpCoupling Pump
-
133B7-77167-0 O-RingO-Ring
-
143E0-77176-1 Manual ValveManual Valve
-
153B7-77411-0 O-RingO-Ring
-
163E0-77407-0 PackingPacking
-
173E0-77408-0 Back Up RingBack Up Ring
-
189450E3-1800 C-RingC-Ring
-
945003-1800 C-RingC-Ring
-
193E0-77365-1 Piston Rod A'ssy TiltPiston Rod A'ssy Tilt
-
203E0-77383-0 O-RingO-Ring
-
213B7-77375-0 O-RingO-Ring
-
223B7-77377-1 Free PistonFree Piston
-
233B7-77375-0 O-RingO-Ring
-
243B7-77376-0 Back-up RingBack-up Ring
-
253E0-77388-0 Piston trimPiston trim
-
3E0-77390-0 Piston trimPiston trim
-
263B7-77392-0 O-RingO-Ring
-
273B7-77393-0 Back-up RingBack-up Ring
-
283E0-77395-0 Rod Guide Sub-ass'y TrimRod Guide Sub-ass'y Trim
-
293E0-77398-0 O-RingO-Ring
-
303E0-77472-1 PlugPlug
-
3E0-77472-0 PlugPlug
-
313B7-77179-0 O-RingO-Ring
-
323E0-77475-0 FilterFilter
-
333E0-77479-0 OrificeOrifice
-
343E0-77165-0 Reservoir TankReservoir Tank
-
353E0-77168-0 CapCap
-
363E0-77169-0 O-RingO-Ring
-
373E0-77159-1 New partNew part
-
3E0-77159-0 New partNew part
-
383E0-77431-1 New partNew part
-
3E0-77431-0 New partNew part
-
393E0-77432-1 New partNew part
-
3E0-77432-0 New partNew part
-
403E0-77167-0 O-RingO-Ring
-
413E0-77557-0 OrificeOrifice
-
423E0-77558-0 BallBall
-
433E0-77559-0 PinPin
-
443B7-77169-0 O-RingO-Ring
-
453E0-77453-0 Valve SeatValve Seat
-
463E0-77456-0 FilterFilter
