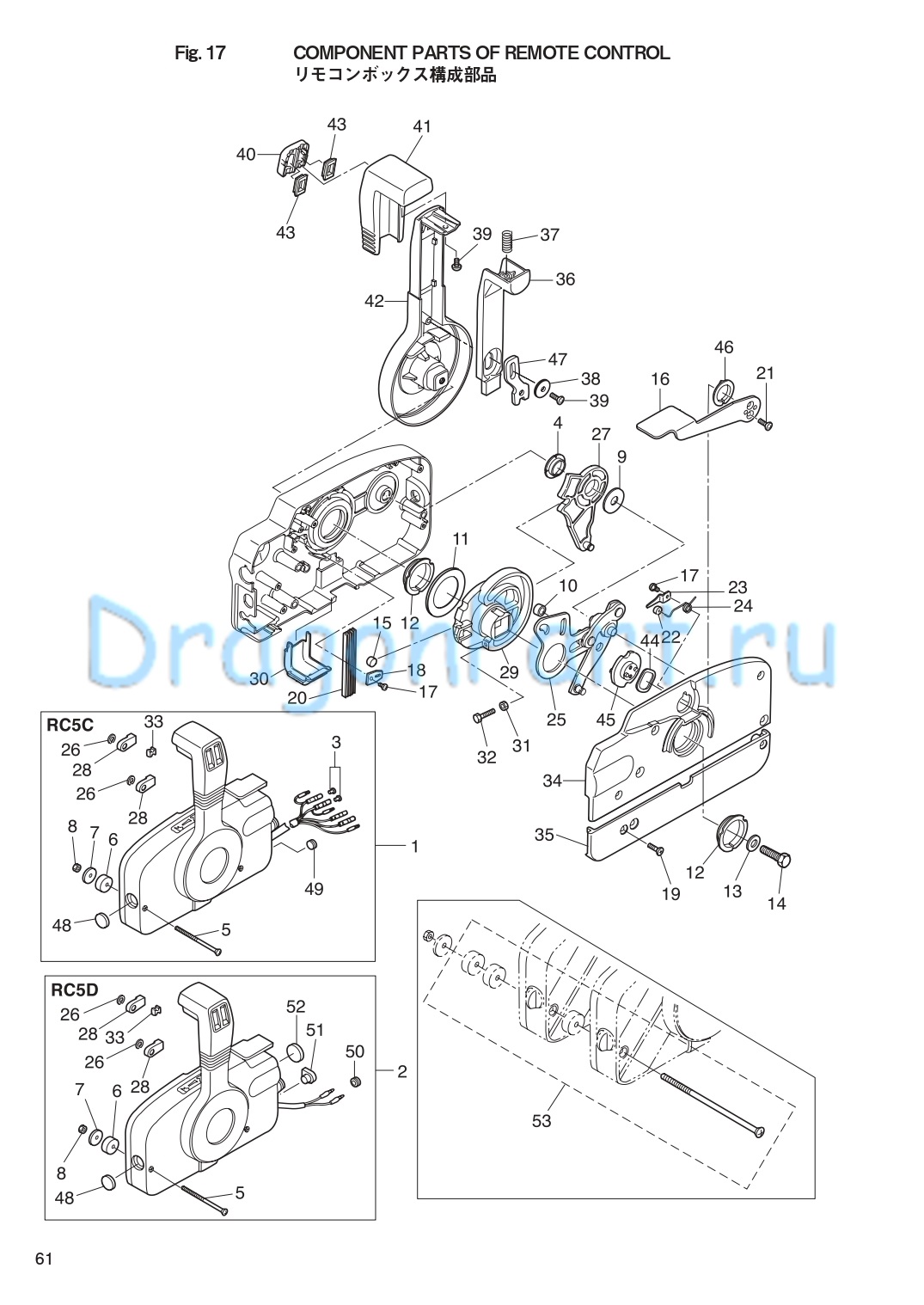

COMPONENT PARTS OF REMOTE CONTROL для Tohatsu M9.9D2 - 2015 года выпуска`
-
№АртикулНазвание
-
13B7Q84350-3 REMOTE CONTROL HEAD ASSY (RC5C)
RC5C for EPREMOTE CONTROL HEAD ASSY (RC5C)
RC5C for EP -
23B7Q84360-1 REMOTE CONTROL HEAD ASSY(RC5D)
OPT RC5D for MF/EFREMOTE CONTROL HEAD ASSY(RC5D)
OPT RC5D for MF/EF -
33A3-76037-0 CABLE TERMINAL PLUG
RC5C for EPCABLE TERMINAL PLUG
RC5C for EP -
43A3-84432-0 BUSHINGBUSHING
-
53A3-84375-0 SCREWSCREW
-
63A3-84374-0 SPACERSPACER
-
7353-84371-0 WASHERWASHER
-
8930103-0600 NUT
Clutch Cable Stay Advancer ArmNUT
Clutch Cable Stay Advancer Arm -
93A3-84383-0 WASHERWASHER
-
103A3-84421-0 ROLLERROLLER
-
113A3-84422-0 THRUST PLATETHRUST PLATE
-
123A3-84431-0 BUSHINGBUSHING
-
13940103-0800 WASHERWASHER
-
143A3-84442-0 BOLTBOLT
-
15353-84388-0 DETENT ROLLERDETENT ROLLER
-
163B7Q84312-0 FREE THROTTLE LEVERFREE THROTTLE LEVER
-
17921503-0406 SCREWSCREW
-
183A3-84423-0 DETENT RETAINERDETENT RETAINER
-
19921603-0518 SCREWSCREW
-
203A3-84307-0 DETENT SPRINGDETENT SPRING
-
21921603-0512 SCREWSCREW
-
223A3-84424-0 FREE THROTTLE ROLLERFREE THROTTLE ROLLER
-
233A3-84426-0 ROLLER RETAINERROLLER RETAINER
-
243A3-84425-0 FREE THROTTLE SPRINGFREE THROTTLE SPRING
-
253A3-84365-1 THROTTLE ARMTHROTTLE ARM
-
26945303-0600 E-RINGE-RING
-
273A3-84381-0 =+ SHIFT GEAR ASSY=+ SHIFT GEAR ASSY
-
283A3-83314-2 CABLE TERMINALCABLE TERMINAL
-
293A3-84364-2 DRIVE GEARDRIVE GEAR
-
303A3-84429-0 WIRE COVERWIRE COVER
-
31930103-0500 NUTNUT
-
32910103-0525 BOLTBOLT
-
333A3-84376-0 GROMMETGROMMET
-
343B7Q84441-0 REARHOUSINGREARHOUSING
-
353B7Q84366-0 REAR PANELREAR PANEL
-
363A3-84401-0 NEUTRAL LOCK ARMNEUTRAL LOCK ARM
-
373A3-84403-0 NEUTRAL LOCK SPRINGNEUTRAL LOCK SPRING
-
383A3-84407-0 WASHERWASHER
-
39921503-0510 SCREWSCREW
-
403A3-84451-0 TILT SWITCH COVERTILT SWITCH COVER
-
413A3-84404-0 GRIPGRIP
-
423B7Q84343-0 CONTROL LEVERCONTROL LEVER
-
433A3-84452-0 TILT SWITCH PLUGTILT SWITCH PLUG
-
443A3-84368-0 WAVE WASHERWAVE WASHER
-
453A3-84391-0 FREE THROTTLE DRUMFREE THROTTLE DRUM
-
463A3-84435-0 BUSHINGBUSHING
-
473A3-84406-0 LATELATE
-
48361-84414-0 GROMMET AGROMMET A
-
49361-84415-0 GROMMET B
RC5C for EPGROMMET B
RC5C for EP -
50369-84418-0 GROMMET E
RC5D for MF/EFGROMMET E
RC5D for MF/EF -
51353-84321-0 GROMMET
RC5D for MF/EFGROMMET
RC5D for MF/EF -
52369-84416-0 GROMMET C
RC5D for MF/EFGROMMET C
RC5D for MF/EF -
533A3-81301-0 TWIN REMOTE CONTROL KIT
M18E2 & M15/9.9D2 for Twin OutboardsTWIN REMOTE CONTROL KIT
M18E2 & M15/9.9D2 for Twin Outboards
