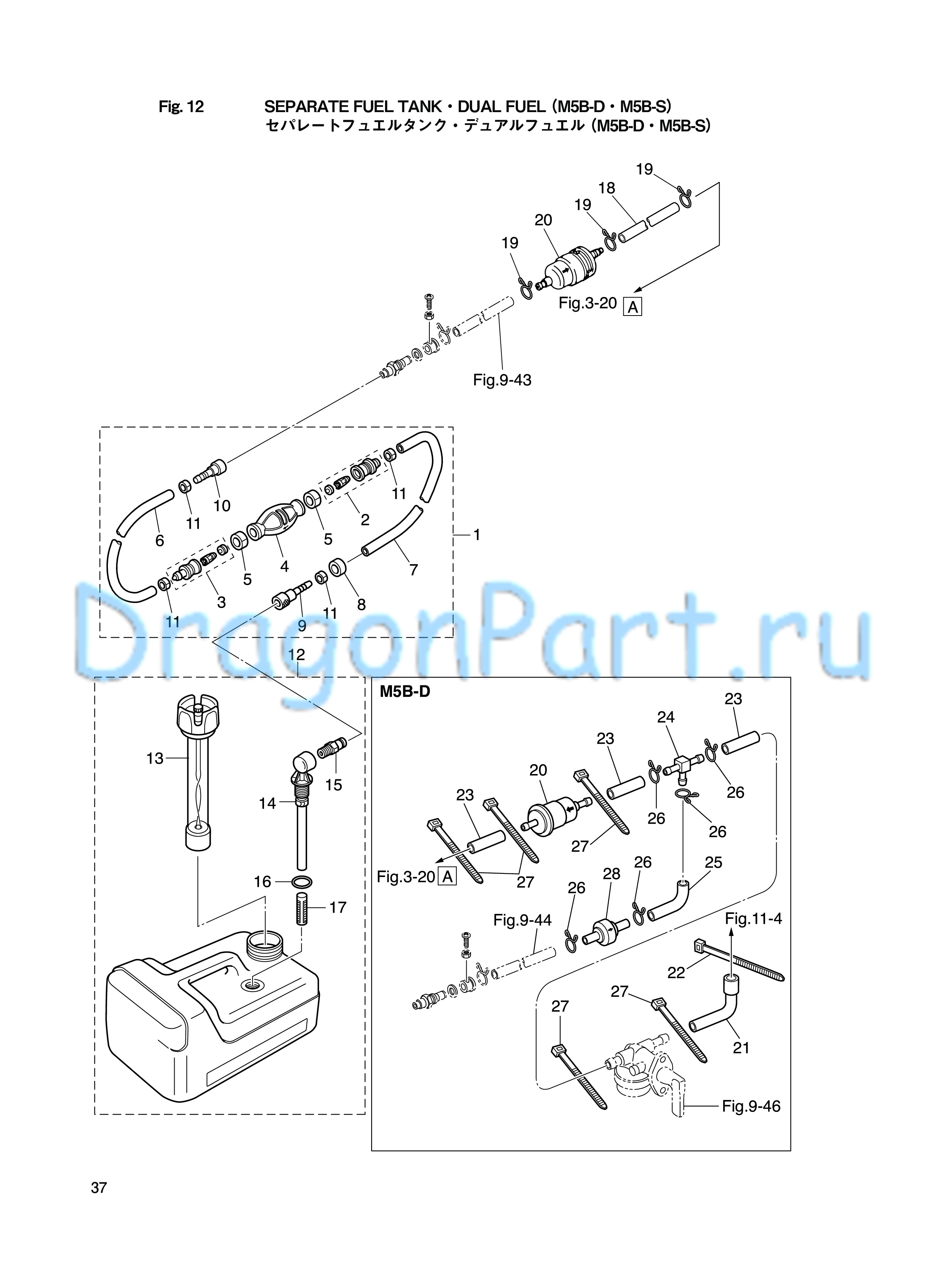

SEPARATE FUEL TANK DUAL FUEL для Tohatsu M5B - 2015 года выпуска

№

Артикул

Название
1

3B7-70200-4 PRIMER BULB ASSY
for M5B-D,M5B-S

PRIMER BULB ASSY
for M5B-D,M5B-S

8 480 ₽
2

3C7-70220-1 * JOINT ASSY (INLET)

* JOINT ASSY (INLET)

800 ₽
3

3C7-70224-1 * JOINT ASSY (OUTLET)

* JOINT ASSY (OUTLET)

800 ₽
4

3C7-70211-1 * PRIMER BULB

* PRIMER BULB

1 710 ₽
5

3C7-70217-0 * CLAMP

* CLAMP

280 ₽
6

98AB-70-700 * HOSE
98AB-701000

* HOSE
98AB-701000

800 ₽
7

98AB-701600 * HOSE
98AB-701000 x2

* HOSE
98AB-701000 x2

950 ₽
8

3B7-70280-1 * FUEL CONNECTOR MARK

* FUEL CONNECTOR MARK

190 ₽
9

3GF-70281-0 * FUEL CONNECTOR

* FUEL CONNECTOR

2 790 ₽
10

3GF-70250-0 * FUEL CONNECTOR

* FUEL CONNECTOR

3 500 ₽
11

332-70201-0 * CLAMP

* CLAMP

270 ₽
12

3B2-70167-1 FUEL TANK ASSY 12L

FUEL TANK ASSY 12L

16 760 ₽
13

3B2-70050-1 * FUEL GAUGE VENT CAP ASSY (12L)

* FUEL GAUGE VENT CAP ASSY (12L)

3 340 ₽
14

3B2-70155-0 * PICK-UP ELBOW ASSY (12L)

* PICK-UP ELBOW ASSY (12L)

1 450 ₽
15

3E0-70270-0 * QUICK-CONNECTOR (MALE)

* QUICK-CONNECTOR (MALE)

2 730 ₽
16

3C7-70199-0 * O-RING

* O-RING

270 ₽
17

3C7-70113-0 * FILTER

* FILTER

710 ₽
18

98AB-50-150 HOSE
for M5B-S,F/Filter -F/Pump 98AB-501000

HOSE
for M5B-S,F/Filter -F/Pump 98AB-501000

140 ₽
19

338-02215-0 CLIP ?10
for M5B-S

CLIP ?10
for M5B-S

140 ₽
20

369-02230-0 FUEL FILTER ASSY

FUEL FILTER ASSY

940 ₽
21

394-70315-0 FUEL HOSE
Fuel Tank-Fuel Valve for M5B-D

FUEL HOSE
Fuel Tank-Fuel Valve for M5B-D

640 ₽
22

3F9-84398-0 BAND 205
for M5B-D

BAND 205
for M5B-D

270 ₽
23

98AB-50-035 HOSE
for M5B-D 98AB-501000

HOSE
for M5B-D 98AB-501000

140 ₽
24

394-70013-0 PIPE JOINT 4-4
for M5B-D

PIPE JOINT 4-4
for M5B-D

540 ₽
25

394-70325-0 FUEL HOSE
N-R/Valve-Pipe Joint for M5B-D

FUEL HOSE
N-R/Valve-Pipe Joint for M5B-D

340 ₽
26

338-02215-0 CLIP ?10
for M5B-D

CLIP ?10
for M5B-D

140 ₽
27

3F9-84398-0 BAND 205
for M5B-D

BAND 205
for M5B-D

270 ₽
28

394-70327-0 NON-RETURN VALVE
for M5B-D

NON-RETURN VALVE
for M5B-D

1 670 ₽
