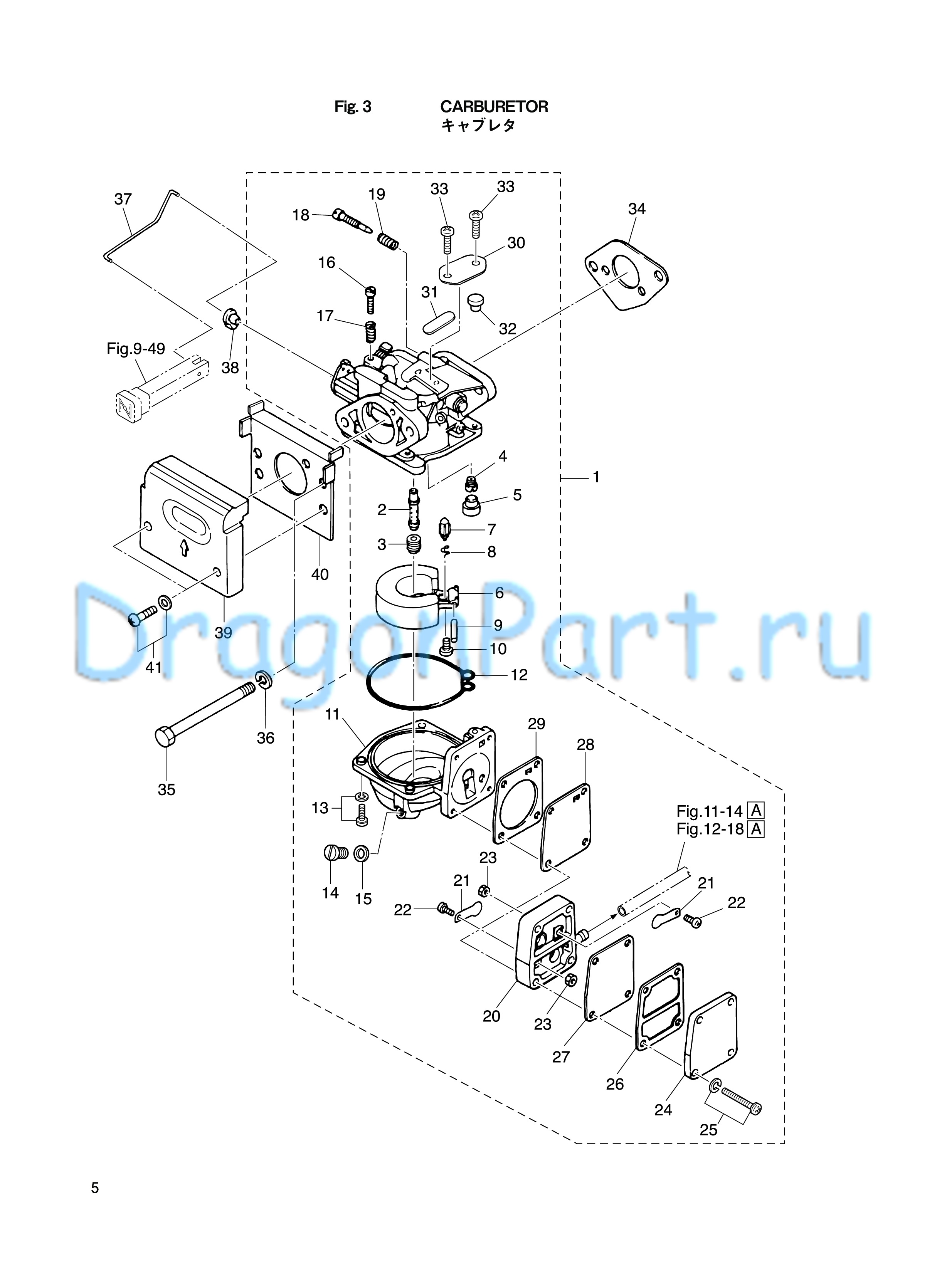

CARBURETOR для Tohatsu M4C - 2015 года выпуска`
-
№АртикулНазвание
-
1369-03200-2 CARBURETOR ASSY
F52C for M4CCARBURETOR ASSY
F52C for M4C -
2369-03252-1 * MAIN NOZZLE* MAIN NOZZLE
-
3369-03251-0 * MAIN JET (#78)* MAIN JET (#78)
-
4393-03254-0 * SLOW JET (#52)
M4C* SLOW JET (#52)
M4C -
5346-03256-0 * RUBBER CAP* RUBBER CAP
-
6369-03231-0 * FLOAT* FLOAT
-
7369-03240-0 * FLOAT VALVE* FLOAT VALVE
-
8344-03244-0 * CLIP* CLIP
-
9346-03232-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
10921521-0408 * SCREW* SCREW
-
11369-03221-0 * FLOAT CHAMBER* FLOAT CHAMBER
-
12369-03222-0 * FLOAT CHAMBER O-RING* FLOAT CHAMBER O-RING
-
13922503-6412 * SCREW* SCREW
-
14369-03292-0 * DRAIN SCREW* DRAIN SCREW
-
15369-03293-1 * GASKET* GASKET
-
16346-03265-0 * STOP SCREW* STOP SCREW
-
17346-03267-0 * SPRING* SPRING
-
18356-03266-0 * PILOT SCREW
M4C* PILOT SCREW
M4C -
19356-03268-0 * SPRING* SPRING
-
20369-03304-0 * PUMP BODY* PUMP BODY
-
21369-03305-0 * CHECK VALVE* CHECK VALVE
-
22921821-0306 * SCREW* SCREW
-
23930121-0300 * NUT* NUT
-
24369-03301-0 * PUMP COVER* PUMP COVER
-
25922553-6423 * SCREW* SCREW
-
26369-03302-0 * PUMP COVER GASKET* PUMP COVER GASKET
-
27369-03303-0 * DIAPHRAGM A* DIAPHRAGM A
-
28369-03306-0 * DIAPHRAGM B* DIAPHRAGM B
-
29369-03307-0 * PUMP BODY GASKET* PUMP BODY GASKET
-
30369-03181-0 * CARBURETOR COVER* CARBURETOR COVER
-
31369-03182-0 * CARBURETOR COVER GASKET* CARBURETOR COVER GASKET
-
32369-03183-0 * CARBURETOR COVER GASKET* CARBURETOR COVER GASKET
-
33369-03186-0 * SCREW* SCREW
-
34369-02011-0 CARBURETOR GASKETCARBURETOR GASKET
-
359161F1-0685 BOLTBOLT
-
36941322-0600 SPRING WASHERSPRING WASHER
-
37393-67192-0 CHOKE RODCHOKE ROD
-
38346-67196-1 ROD SNAP 3-BROD SNAP 3-B
-
39369-02501-2 PLATEPLATE
-
40369-02503-2 HOLDERHOLDER
-
41921503-5418 SCREWSCREW
