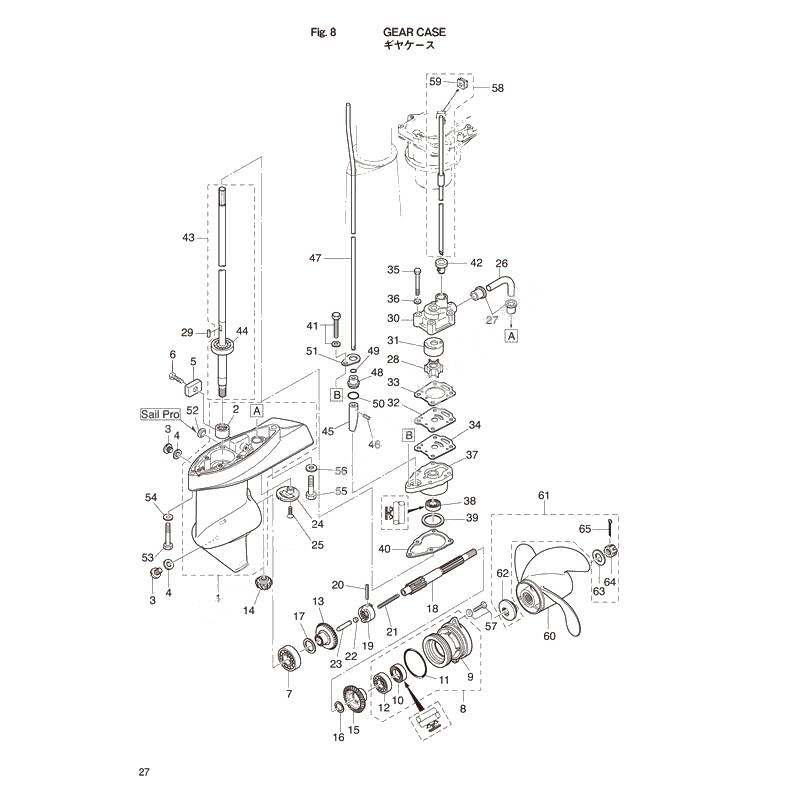

Gear case для Tohatsu MFS5CS - 2014 года выпуска
-
№АртикулНазвание
-
1369Q60000-3 ギヤケース
スタンダードギヤケース
スタンダード -
2369-60211-0 Needle BearingNeedle Bearing
-
3332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
4332-60006-0 ギヤオイルパッキン ガスケット 8.1-15-1ギヤオイルパッキン ガスケット 8.1-15-1
-
53H6-60218-0 AnodeAnode
-
6910103-0616 BoltBolt
-
79601-0-6004 Ball BearingBall Bearing
-
8369Q87323-1 Propeller shaft housing assyPropeller shaft housing assy
-
9369Q60101-1 Propeller shaft housingPropeller shaft housing
-
10369-60111-0 Oil SealOil Seal
-
11345-65015-0 O-Ring 3.2-47O-Ring 3.2-47
-
129601-0-6002 Ball BearingBall Bearing
-
13369-64010-2 Bevel Gear A Ass'y (with Bushing)Bevel Gear A Ass'y (with Bushing)
-
14369-64020-2 Bevel Gear BBevel Gear B
-
15369-64030-2 Bevel Gear CBevel Gear C
-
16369-64032-0 WasherWasher
-
17369-64015-0 Shim 21-28-0.15
選択Shim 21-28-0.15
選択 -
18369-64211-1 Propeller ShaftPropeller Shaft
-
19301-64215-1 ClutchClutch
-
20301-64217-0 Pin ClutchPin Clutch
-
21393-64221-0 Spring ClutchSpring Clutch
-
22369-64222-0 Spring holder clutchSpring holder clutch
-
23369-64223-0 Push Rod ClutchPush Rod Clutch
-
24369-60206-0 Water StrainerWater Strainer
-
25921803-0620 ScrewScrew
-
26369-65035-0 Water Pipe LowerWater Pipe Lower
-
27369-65036-0 Seal Rubber Water Pipe LowerSeal Rubber Water Pipe Lower
-
28369-65021-1 Impeller water pumpImpeller water pump
-
29369-65022-0 Impeller key
ポンプインペラImpeller key
ポンプインペラ -
30369-65016-0 Water Pump CaseWater Pump Case
-
31369-65011-0 ライナー ポンプケースライナー ポンプケース
-
32369-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
33369-65018-0 Gasket water pump caseGasket water pump case
-
34369-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
359161E3-0645 New partNew part
-
36940103-0600 WasherWasher
-
37369-65017-1 Pump Case LowerPump Case Lower
-
38369-60223-0 Oil SealOil Seal
-
39369-64082-1 シム、26.5-34.8-0.15
選択シム、26.5-34.8-0.15
選択 -
40369-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
41910103-5625 BoltBolt
-
42369-65014-0 Seal rubber lower water pipeSeal rubber lower water pipe
-
43369-64303-0 Drive Shaft UL
トランサムULモデルDrive Shaft UL
トランサムULモデル -
449601-0-6300 Ball BearingBall Bearing
-
45369-66011-0 Clutch CamClutch Cam
-
46951407-0310 Spring PinSpring Pin
-
47369-66014-2 カムロッド (UL)
トランサムULモデルカムロッド (UL)
トランサムULモデル -
48369-66031-0 Bushing Cam RodBushing Cam Rod
-
49369-66021-1 Oリング 2.5-4.9Oリング 2.5-4.9
-
50332-66032-0 Oリング 2.4-15.4Oリング 2.4-15.4
-
51369-66033-0 Stopper Cam Rod BushingStopper Cam Rod Bushing
-
539161E3-0645 New partNew part
-
549401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
559161E3-0835 New partNew part
-
569401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
579101E3-5616 New partNew part
-
58369-65120-0 Water Pipe UL
トランサムULモデルWater Pipe UL
トランサムULモデル -
59369-65195-0 Grommet, Water Pipe UpperGrommet, Water Pipe Upper
-
60393B64512-1 トーハツ純正プロペラ 200x152 マーク6""
OPT 3x200x152トーハツ純正プロペラ 200x152 マーク6""
OPT 3x200x152 -
613H6-87326-0 Propeller Hardwear KitPropeller Hardwear Kit
-
623AS-64230-0 Thrust holder propellerThrust holder propeller
-
63369-64124-0 WasherWasher
-
64369-64121-0 Nut PropellerNut Propeller
-
65951503-0318 スプリットピン 3-18スプリットピン 3-18
