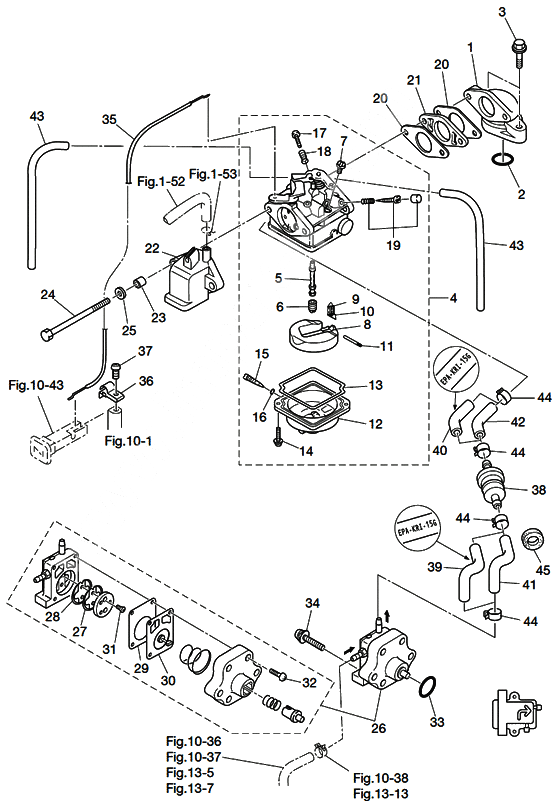

Carburetor & fuel pump для Tohatsu MFS4C - 2014 года выпуска`

№

Артикул

Название
2

3H6-02104-0 O-Ring
O-RING

O-Ring
O-RING

630 ₽
3

910124-5625 Bolt

Bolt

140 ₽
4

3JD-03200-0 Carburetor assy mfs/nsf4c
3JDA / 4PS

Carburetor assy mfs/nsf4c
3JDA / 4PS

12 780 ₽
5

3JD-03252-0 Main nozzle f4c
4PS

Main nozzle f4c
4PS

1 420 ₽
6

3GU-04462-0 High alt. adj. kit mfs2.5b (~9840 ft.)
4PS

High alt. adj. kit mfs2.5b (~9840 ft.)
4PS

1 030 ₽
3GU-10230-0 High alt. adj. kit mfs2.5b (~9840 ft.)

High alt. adj. kit mfs2.5b (~9840 ft.)

3 650 ₽
7

3R1-03254-0 Pilot Jet #38
4/5/6PS

Pilot Jet #38
4/5/6PS

980 ₽
8

3H6-03231-0 Float

Float

3 620 ₽
9

3H6-03240-0 Float Valve

Float Valve

2 520 ₽
10

3H6-03244-0 Clip

Clip

340 ₽
11

3H6-03232-0 Aym Pin, Float

Aym Pin, Float

280 ₽
12

3H6-03221-0 Float Chamber

Float Chamber

3 060 ₽
13

3H6-03222-0 Gasket,float Chamber

Gasket,float Chamber

1 110 ₽
14

922503-6412 Stud Bolt

Stud Bolt

190 ₽
15

3H6-03292-0 Drain Screw

Drain Screw

410 ₽
16

3H6-03293-0 O-ring,drain Screw

O-ring,drain Screw

140 ₽
17

3H6-03265-0 Stop Screw

Stop Screw

410 ₽
18

3H6-03267-0 Spring,stop Screw

Spring,stop Screw

150 ₽
19

3JD-03266-0 Pilot screw set
4PS

Pilot screw set
4PS

1 450 ₽
20

3H6-02011-0 Gasket, carburetor

Gasket, carburetor

540 ₽
21

3H6-03952-1 Insulator

Insulator

540 ₽
22

3GR-02409-0 Air Silencer

Air Silencer

1 530 ₽
23

3A0-76079-0 Collar, 6.2-9-7.5

Collar, 6.2-9-7.5

600 ₽
24

9164F1-0685 Bolt

Bolt

250 ₽
25

940103-0600 Washer

Washer

110 ₽
26

3H6-04000-7 Fuel pump 4/5/6/8/9.8 4-str only

Fuel pump 4/5/6/8/9.8 4-str only

11 790 ₽
27

3H6-04044-0 Check Valve
BLACK

Check Valve
BLACK

500 ₽
28

3H6-04014-1 Check Valve
WHITE

Check Valve
WHITE

1 320 ₽
29

3H6-04028-0 O-Ring

O-Ring

1 700 ₽
30

3H6-04005-0 Diaphragm

Diaphragm

6 720 ₽
31

921603-0308 Stud Bolt

Stud Bolt

140 ₽
32

922503-6418 Stud Bolt

Stud Bolt

190 ₽
33

3H6-07422-0 New part

New part

360 ₽
34

921503-7630 Stud Bolt

Stud Bolt

140 ₽
35

3GR-67197-0 Choke wire

Choke wire

1 260 ₽
36

3JD-63505-0 Cable holder

Cable holder

880 ₽
37

921503-0510 Stud Bolt

Stud Bolt

120 ₽
38

369-02230-0 Фильтр топливный

Фильтр топливный

940 ₽
39

3GS-02207-0 Hose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15G

Hose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15G

1 100 ₽
40

3JJ-02130-0 Hose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15G

Hose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15G

480 ₽
41

3GR-02204-0 Fuel hose low permeation
STD / FUEL PUMP-FUEL FILTER

Fuel hose low permeation
STD / FUEL PUMP-FUEL FILTER

830 ₽
42

3JJ-02204-0 Fuel hose low permeation
STD / FUEL FILTER-CARBURETOR

Fuel hose low permeation
STD / FUEL FILTER-CARBURETOR

300 ₽
43

98AB-3-0270 Fuel pipe 3mm (1 ea.=1 meter)
98AB-301000

Fuel pipe 3mm (1 ea.=1 meter)
98AB-301000

0 ₽
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)

Fuel pipe 3mm (1 ea.=1 meter)

1 120 ₽
44

3AB-35143-0 Clip @ 9.5

Clip @ 9.5

250 ₽
45

3B7-06305-0 Mount Rubber, 9-16-4.3

Mount Rubber, 9-16-4.3

110 ₽
