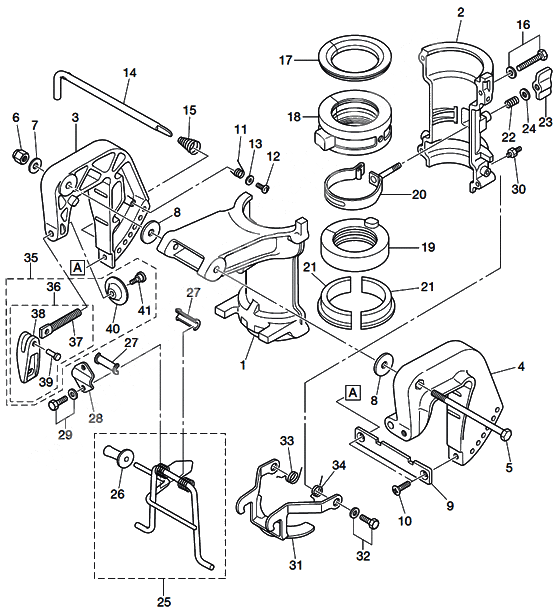

Bracket & reverse lock для Tohatsu MFS4C - 2014 года выпуска`
-
№АртикулНазвание
-
13H6Q62391-0 Swivel bracket a (amb)Swivel bracket a (amb)
-
23H6Q62392-1 Swivel bracket b (amb)Swivel bracket b (amb)
-
3369Q62112-3 Clamp bracket right (amb)
STARBOARD SIDEClamp bracket right (amb)
STARBOARD SIDE -
4369Q62113-2 Clamp bracket left (amb)
PORT SIDEClamp bracket left (amb)
PORT SIDE -
5309-62115-2 Bolt 8-122Bolt 8-122
-
6930403-0800 Nylon NutNylon Nut
-
79401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
8307-62116-1 WasherWasher
-
93B2-62118-0 Distance Plate, BracketDistance Plate, Bracket
-
109216E3-0612 ScrewScrew
-
921603-0612 ScrewScrew
-
11369-62146-1 Spring Stern BracketSpring Stern Bracket
-
12921703-0406 Stud BoltStud Bolt
-
13369-62147-0 WasherWasher
-
14350-62121-2 Thrust RodThrust Rod
-
15369-62122-2 Spring Thrust RodSpring Thrust Rod
-
169101E3-5640 Bolt & washerBolt & washer
-
173H6-62325-0 Thrust BushingThrust Bushing
-
183H6-61301-0 Bushing Upper, SteeringBushing Upper, Steering
-
193H6-62417-1 Bushing Lower SteeringBushing Lower Steering
-
203H9-62418-1 Friction band assyFriction band assy
-
213H6-62424-0 Thrust Plate BThrust Plate B
-
223H9-62446-0 Spring,Co PilotSpring,Co Pilot
-
233H9-62442-0 Wing Nut M6Wing Nut M6
-
243C8-66308-0 New partNew part
-
253GR-62431-0 Tilt stopper assyTilt stopper assy
-
263AS-62433-0 Grip Tilt StopperGrip Tilt Stopper
-
27393-62437-1 BushingBushing
-
28369-62439-1 Set Plate Tilt StopperSet Plate Tilt Stopper
-
299101E3-5612 Bolt & washerBolt & washer
-
30344-67177-1 Grease NippleGrease Nipple
-
313H6-66313-0 Reverse Lock ArmReverse Lock Arm
-
329101E3-5614 BoltBolt
-
910103-5614 BoltBolt
-
33369-66338-0 Spring R Reverse Lock ArmSpring R Reverse Lock Arm
-
34369-66339-0 Spring L Reverse Lock ArmSpring L Reverse Lock Arm
-
353GTQ62105-1 Clamp screw kit, f2b/2.5b/3.5b-f4/5/6cClamp screw kit, f2b/2.5b/3.5b-f4/5/6c
-
363GTQ62108-1 Clamp screw assy f2b/2.5b/3.5b-f4/5/6cClamp screw assy f2b/2.5b/3.5b-f4/5/6c
-
3GTQ62108-0 Clamp screw assy f2b/2.5b/3.5b-f4/5/6cClamp screw assy f2b/2.5b/3.5b-f4/5/6c
-
37369-62106-1 Clamp screw (threaded style)Clamp screw (threaded style)
-
369-62106-0 Clamp screw (threaded style)Clamp screw (threaded style)
-
383ABQ62102-0 Clamp screw handle (amb)Clamp screw handle (amb)
-
393C8-62104-2 RivetRivet
-
3C8-62104-1 RivetRivet
-
40332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
413C8-62107-0 Shoulder boltShoulder bolt
