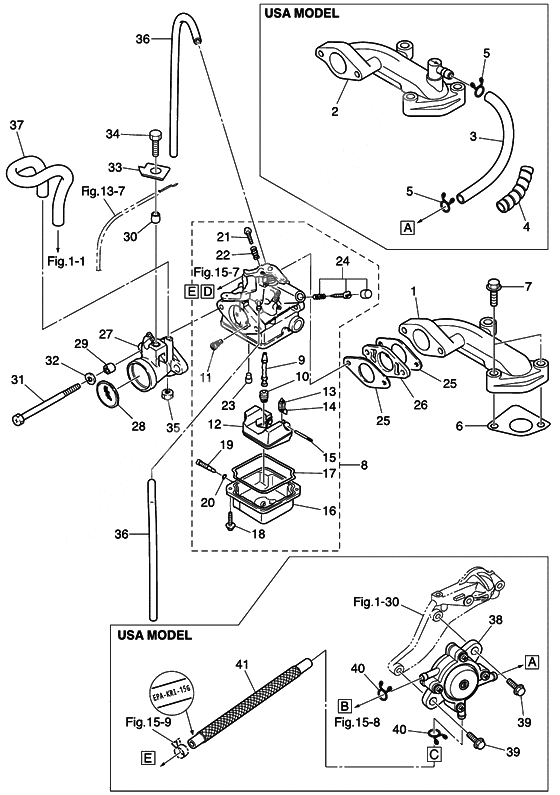

Intake manifold & carburetor для Tohatsu MFS3.5B - 2014 года выпуска
-
№АртикулНазвание
-
13BRB02091-1 Intake manifold
STDIntake manifold
STD -
3BRB02091-0 Intake manifoldIntake manifold
-
23GTB02010-1 Intake manifold assy
NIPPLE / FOR USA MODELIntake manifold assy
NIPPLE / FOR USA MODEL -
398AB-7-0185 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FOR USA MODEL / 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FOR USA MODEL / 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
43V1-76148-0 Spiral Tube Protector
FOR USA MODELSpiral Tube Protector
FOR USA MODEL -
53C7-02215-0 Clip
FOR USA MODELClip
FOR USA MODEL -
63AB-02104-0 Intake manifold gasketIntake manifold gasket
-
79101F4-5630 BoltBolt
-
9101E3-0630 BoltBolt
-
83GV-03200-0 Carburetor assy f3.5b
3.5PS / MARK 3CVACarburetor assy f3.5b
3.5PS / MARK 3CVA -
93R4-03252-0 MAIN NOZZLE(6A)
3.5PSMAIN NOZZLE(6A)
3.5PS -
103AU-04468-0 Main jet #68 f3.5a/b/6b
3.5PSMain jet #68 f3.5a/b/6b
3.5PS -
113GT-04915-0 Slow air jet # 115
2/3.5PSSlow air jet # 115
2/3.5PS -
123GT-03231-0 FloatFloat
-
133H6-03240-0 Float ValveFloat Valve
-
143H6-03244-0 ClipClip
-
153H6-03232-0 Aym Pin, FloatAym Pin, Float
-
163GT-03221-0 Float ChamberFloat Chamber
-
173H6-03222-0 Gasket,float ChamberGasket,float Chamber
-
18922503-6412 Stud BoltStud Bolt
-
193H6-03292-0 Drain ScrewDrain Screw
-
203H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
213AB-03265-0 Stop ScrewStop Screw
-
223H6-03267-0 Spring,stop ScrewSpring,stop Screw
-
233GT-03256-0 Rubber capRubber cap
-
243AB-03266-0 Pilot screw set
2/3.5PSPilot screw set
2/3.5PS -
253H6-02011-0 Gasket, carburetorGasket, carburetor
-
263H6-03952-1 InsulatorInsulator
-
273H6-02411-0 Air SilencerAir Silencer
-
283H6-02603-0 Flam TrapFlam Trap
-
293A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
303H6-76079-1 Collar 6.2-9-7.4Collar 6.2-9-7.4
-
3H6-76079-0 Collar 6.2-9-7.4Collar 6.2-9-7.4
-
319161F1-0685 BoltBolt
-
916121-0685 BoltBolt
-
32940103-0600 WasherWasher
-
333H6-63505-0 Holder, CableHolder, Cable
-
34910103-0616 BoltBolt
-
35930103-0600 NutNut
-
3698AB-3-0230 Fuel pipe 3mm (1 ea.=1 meter)
98AB-301000Fuel pipe 3mm (1 ea.=1 meter)
98AB-301000 -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
373AB-07435-0 Breather hoseBreather hose
-
383GT-04000-0 Fuel pump f2b/2.5b/3.5b
FOR USA MODELFuel pump f2b/2.5b/3.5b
FOR USA MODEL -
399101E3-5620 Bolt & washer
FOR USA MODELBolt & washer
FOR USA MODEL -
40338-02215-0 Clip
FOR USA MODELClip
FOR USA MODEL -
413GT-02161-0 Fuel hose w/protector l=390mm
FUEL PUMP-CARBURETOR / USA EPA-KRI-15GFuel hose w/protector l=390mm
FUEL PUMP-CARBURETOR / USA EPA-KRI-15G
