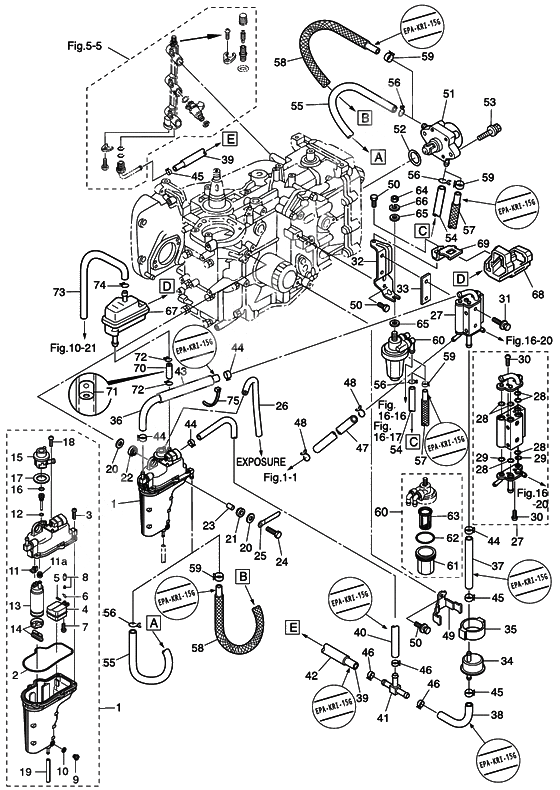

Fuel system для Tohatsu MFS25B - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3AC-10150-0 Vapor separator
    Vapor separator
  • 2
    3AC-03235-0 O-Ring
    O-Ring
  • 3
    921503-6416 Screw
    Screw
  • 4
    3AC-03230-0 Float
    Float
  • 5
    3F3-03232-0 Arm Pin Float
    Arm Pin Float
  • 6
    344-03244-0 Clip
    Clip
  • 7
    921503-0408 Stud Bolt
    Stud Bolt
  • 8
    3R3-03239-0 Floato Valve Assy
    VALVE PIN
    Floato Valve Assy
    VALVE PIN
  • 9
    3AC-03292-0 Drain Screw
    Drain Screw
  • 10
    3AC-03116-0 O-ring drain screw
    O-ring drain screw
  • 11
    3AC-06952-0 Terminal holder
    Terminal holder
  • 12
    3AD-03116-0 O-Ring
    O-Ring
  • 13
    3AC-04310-0 Fuel feed pump
    Fuel feed pump
  • 15
    3AC-10154-0 Fuel regulator
    Fuel regulator
  • 16
    3AC-10095-0 O-Ring
    O-Ring
  • 17
    3AC-04313-0 Grommet
    Grommet
  • 18
    3AC-03234-0 Screw
    Screw
  • 19
    98AB-3-0300 Fuel pipe 3mm (1 ea.=1 meter)
    DRAIN / 98AB-301000
    Fuel pipe 3mm (1 ea.=1 meter)
    DRAIN / 98AB-301000
  • 98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)
    Fuel pipe 3mm (1 ea.=1 meter)
  • 20
    346-67115-0 Washer
    Washer
  • 21
    346-67113-0 Mount Rubber
    Mount Rubber
  • 22
    3B7-06920-0 Mount Rubber, 8.5-14-2.5
    Mount Rubber, 8.5-14-2.5
  • 23
    346-67114-1 Spacer
    Spacer
  • 346-67114-0 Spacer
    Spacer
  • 24
    9101E3-0630 Bolt
    Bolt
  • 25
    3T4-06972-1 Clamp
    Clamp
  • 3T4-06972-0 Clamp
    Clamp
  • 26
    98AB-3-0540 Fuel pipe 3mm (1 ea.=1 meter)
    V/SEPARATOR-B/COWL / 98AB-301000
    Fuel pipe 3mm (1 ea.=1 meter)
    V/SEPARATOR-B/COWL / 98AB-301000
  • 98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)
    Fuel pipe 3mm (1 ea.=1 meter)
  • 27
    3AC-10175-0 Fuel cooler
    Fuel cooler
  • 28
    3AC-10046-0 O-Ring
    O-Ring
  • 29
    3AC-10164-0 O-Ring
    O-Ring
  • 30
    921503-6410 Stud Bolt
    Stud Bolt
  • 31
    9101E3-5635 Bolt & washer
    Bolt & washer
  • 32
    3AC-02239-0 Plate
    Plate
  • 33
    3AC-10019-0 Gasket fuel cooler
    FUEL COOLER
    Gasket fuel cooler
    FUEL COOLER
  • 34
    3ACB10143-0 Fuel Filter
    Fuel Filter
  • 35
    3AC-10145-0 Rubber mount fuel filter
    Rubber mount fuel filter
  • 36
    3AD-02209-0 Low permeation hose
    V/SEPARATOR-F/COOLER / EPA-KRI-15G
    Low permeation hose
    V/SEPARATOR-F/COOLER / EPA-KRI-15G
  • 37
    3AC-02209-0 Low permeation hose
    F/COOLER-HP FUEL FILTER / EPA-KRI-15G
    Low permeation hose
    F/COOLER-HP FUEL FILTER / EPA-KRI-15G
  • 38
    3AC-02210-0 Low permeation hose
    HP FUEL FILTER-T-NIPPLE / EPA-KRI-15G
    Low permeation hose
    HP FUEL FILTER-T-NIPPLE / EPA-KRI-15G
  • 39
    3AL-02210-0 Low permeation hose
    T-NIPPLE-FUEL RAIL / EPA-KRI-15G
    Low permeation hose
    T-NIPPLE-FUEL RAIL / EPA-KRI-15G
  • 40
    3AD-02210-0 Low permeation hose
    V/SEPARATOR-T-NIPPLE / EPA-KRI-15G
    Low permeation hose
    V/SEPARATOR-T-NIPPLE / EPA-KRI-15G
  • 41
    3AC-70013-0 T-Nipple
    T-NIPPLE
    T-Nipple
    T-NIPPLE
  • 42
    3AD-06157-0 Hose protector
    T-NIPPLE-FUEL RAIL
    Hose protector
    T-NIPPLE-FUEL RAIL
  • 43
    3AD-06133-0 Protector @18-130
    V/SEPARATOR-F/COOLER
    Protector @18-130
    V/SEPARATOR-F/COOLER
  • 44
    3AC-10087-0 Clamp
    FUEL COOLER & V/SEPARATOR
    Clamp
    FUEL COOLER & V/SEPARATOR
  • 45
    3AC-09056-1 Clip
    HP FUEL FILTER & FUEL RAIL NIPPLE
    Clip
    HP FUEL FILTER & FUEL RAIL NIPPLE
  • 3AC-09056-0 Clip
    Clip
  • 46
    3T5-10086-0 Clamp 21/32
    T-NIPPLE (PIPE JOINT)
    Clamp 21/32
    T-NIPPLE (PIPE JOINT)
  • 47
    98AR-50-600 Rubber hose
    CYLINDER-FUEL COOLER / 98AR-501000
    Rubber hose
    CYLINDER-FUEL COOLER / 98AR-501000
  • 48
    338-02215-0 Clip
    CYLINDER-FUEL COOLER
    Clip
    CYLINDER-FUEL COOLER
  • 49
    3AC-10144-0 Band fuel filter
    Band fuel filter
  • 50
    9101E3-5616 Bolt & washer
    PLATE & FUEL FILTER BAND
    Bolt & washer
    PLATE & FUEL FILTER BAND
  • 51
    3H8-04000-1 Fuel Pump Ass'y
    Fuel Pump Ass'y
  • 52
    3H8-62415-0 O-Ring
    O-Ring
  • 53
    9101E3-5625 Bolt & washer
    Bolt & washer
  • 54
    98AB-5-0370 Fuel pipe 5mm (1 ea.=1 meter)
    F/FILTER-F/PUMP / STD 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    F/FILTER-F/PUMP / STD 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 55
    98AB-5-0600 Fuel pipe 5mm (1 ea.=1 meter)
    F/PUMP-V/SEPARATOR / STD 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    F/PUMP-V/SEPARATOR / STD 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 56
    338-02215-0 Clip
    STD F/PUMP F/FILTER V/SEPARATOR
    Clip
    STD F/PUMP F/FILTER V/SEPARATOR
  • 57
    3AD-02165-0 Hose low permeation
    LOW PERMEATION PARTS / EPA-KRI-15G
    Hose low permeation
    LOW PERMEATION PARTS / EPA-KRI-15G
  • 58
    3AM-02165-0 Hose low permeation
    LOW PERMEATION PARTS / EPA-KRI-15G
    Hose low permeation
    LOW PERMEATION PARTS / EPA-KRI-15G
  • 59
    3AB-35143-0 Clip @ 9.5
    USA F/PUMP / F/FILTER V/SEPARATOR
    Clip @ 9.5
    USA F/PUMP / F/FILTER V/SEPARATOR
  • 60
    3AD-02230-0 Fuel Filter Ass'y
    Fuel Filter Ass'y
  • 61
    3AD-02237-0 Cap
    Cap
  • 62
    3AD-02235-0 O-Ring
    O-Ring
  • 63
    3AD-02234-0 Filter
    Filter
  • 64
    930103-0800 Nut
    Nut
  • 65
    940103-0800 Washer -> 940113-0800
    Washer -> 940113-0800
  • 66
    941303-0800 Spring Washer
    Spring Washer
  • 67
    3AC-10320-0 Air vent assy
    Air vent assy
  • 68
    3AC-06302-0 Rubber mount air vent
    Rubber mount air vent
  • 69
    3AC-76174-0 Air vent stay
    Air vent stay
  • 70
    98AB-5-0040 Fuel pipe 5mm (1 ea.=1 meter)
    AIR VENT-V/SEPARATOR / 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    AIR VENT-V/SEPARATOR / 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 71
    3AD-10170-0 Orifice
    Orifice
  • 72
    338-02215-0 Clip
    Clip
  • 73
    98AL-4-0620 Lube pipe (1 ea.=1m) must use 393011600m check valve
    AIR VENT-EXPOSURE / 98AL-401000
    Lube pipe (1 ea.=1m) must use 393011600m check valve
    AIR VENT-EXPOSURE / 98AL-401000
  • 98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valve
    Lube pipe (1 ea.=1m) must use 393011600m check valve
  • 74
    338-01133-0 Clip
    Clip
  • 75
    369-84398-0 Band Lead Wire,158
    Band Lead Wire,158
