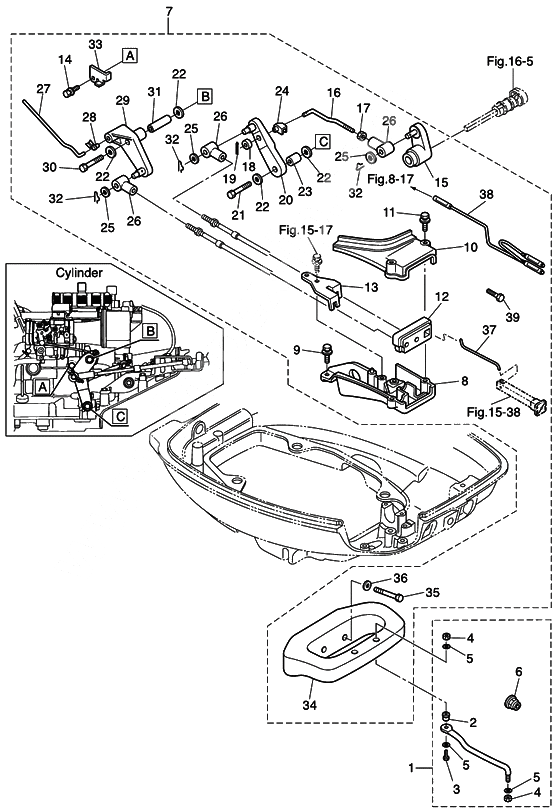

Remote control parts для Tohatsu MFS20C - 2014 года выпуска`
-
№АртикулНазвание
-
13E0-84905-0 Drag link assy
FOR EP/EPTDrag link assy
FOR EP/EPT -
23E0-84914-0 Spacer Drag Link HSpacer Drag Link H
-
33E0-84917-0 Bolt 3/8-50Bolt 3/8-50
-
4353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
5353-84916-0 WasherWasher
-
63F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
73BJQ83880-3 R c fitting parts (f9.9/15/18b-15/20c)
FOR MF->MPR c fitting parts (f9.9/15/18b-15/20c)
FOR MF->MP -
83R3Q67482-0 Rc control bracket (aqua marine blue)Rc control bracket (aqua marine blue)
-
99101E3-5620 Bolt & washerBolt & washer
-
103R3-67483-1 Cover, Remote Control BracketCover, Remote Control Bracket
-
113BJ-67485-0 Bolt 5-35 (with washer)Bolt 5-35 (with washer)
-
123BJ-83732-0 Grommet cableGrommet cable
-
133R3-83820-0 Bracket, CableBracket, Cable
-
149101E3-5616 Bolt & washer
THROTTLE LEVER STOPPER / CABLE BRACKETBolt & washer
THROTTLE LEVER STOPPER / CABLE BRACKET -
153R3-66128-0 Shift Arm, Remote ControlShift Arm, Remote Control
-
163BJ-66134-0 Rod Shift LeverRod Shift Lever
-
17930103-0500 NutNut
-
183BJ-66138-0 Spacer 5-9.5-5Spacer 5-9.5-5
-
19951503-0212 Split PinSplit Pin
-
203R3-66129-0 Shift Lever, Remote ControlShift Lever, Remote Control
-
219101E3-0625 BoltBolt
-
910103-0625 BoltBolt
-
223R0-66308-0 WasherWasher
-
23353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
243C8-63733-0 Rod Snap 5-3
SHIFT LEVERRod Snap 5-3
SHIFT LEVER -
253AA-83719-0 WasherWasher
-
263B7-83715-2 Cable JointCable Joint
-
273R3-63709-0 Throttle Rod, Remote ControlThrottle Rod, Remote Control
-
28346-67196-1 Rod Snap 3-b
THROTTLE LEVERRod Snap 3-b
THROTTLE LEVER -
293R3-83910-0 Throttle Lever, Remote ControlThrottle Lever, Remote Control
-
309101E3-0645 BoltBolt
-
910103-0645 BoltBolt
-
313R3-83913-1 CollarCollar
-
3R3-83913-0 CollarCollar
-
32951603-0800 R-PinR-Pin
-
333BJ-83914-0 Stopper throttle leverStopper throttle lever
-
343V5Q62001-0 Steering bracket (amb)Steering bracket (amb)
-
359161E3-1045 BoltBolt
-
916113-1045 BoltBolt
-
369401E3-1000 WasherWasher
-
373BD-67192-0 Choke RodChoke Rod
-
38369-83883-0 Separate CordSeparate Cord
-
39910103-0612 New partNew part
