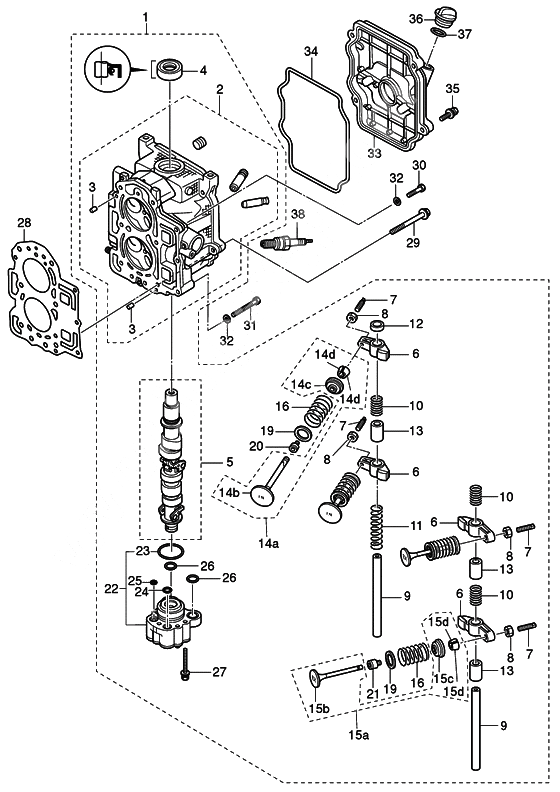

Cylinder head & oil pump для Tohatsu MFS20C - 2014 года выпуска`
-
№АртикулНазвание
-
13BKB01000-0 Cylinder head assy mfs9.9/15/20cCylinder head assy mfs9.9/15/20c
-
23BKB01001-0 Cylinder head f15c/f20cCylinder head f15c/f20c
-
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
43H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
53BK-07810-0 Camshaft assyCamshaft assy
-
63AE-07235-0 Rocker armRocker arm
-
73R0-07238-0 Stud BoltStud Bolt
-
83H8-07237-0 NutNut
-
93Y2-07920-0 Shaft rocker armShaft rocker arm
-
103H8-07225-0 Spring WasherSpring Washer
-
113H8-07229-0 Spring WasherSpring Washer
-
123R3-07227-0 WasherWasher
-
133H8-07239-0 Collar, Rocker Arm ShaftCollar, Rocker Arm Shaft
-
14A3AE-07895-0 Intake ValveIntake Valve
-
14B3AE-07901-0 Intake ValveIntake Valve
-
14C3AE-07921-0 RetainerRetainer
-
14D3AE-07923-0 CotterCotter
-
15A3AE-07896-0 Exhaust ValveExhaust Valve
-
15B3AE-07902-0 Exhaust ValveExhaust Valve
-
15C3AE-07921-0 RetainerRetainer
-
15D3AE-07923-0 CotterCotter
-
163AE-07203-0 Valve springValve spring
-
193H6-07205-0 Seat, Valve SpringSeat, Valve Spring
-
203R3-07204-0 Seal, In Valve Stem
BLACKSeal, In Valve Stem
BLACK -
213R3-07206-0 Seal, EX Valve Stem
GREENSeal, EX Valve Stem
GREEN -
223H8-07600-0 Oil Pump A'ssyOil Pump A'ssy
-
233H8-07639-0 O-ring Oil PumpO-ring Oil Pump
-
243H8-07632-0 O-RingO-Ring
-
253H8-07631-0 O-RingO-Ring
-
263H8-07635-0 O-RingO-Ring
-
279101F4-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
283BJ-01005-0 Gasket cylinder head f15c/f20cGasket cylinder head f15c/f20c
-
293H8-01013-0 Bolt, Cylinder Head 8-60Bolt, Cylinder Head 8-60
-
309161F4-0625 BoltBolt
-
916114-0625 BoltBolt
-
319161F9-0640 BoltBolt
-
910103-0640 BoltBolt
-
329401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
333BKB01021-0 Cylinder head cover f15c/f20cCylinder head cover f15c/f20c
-
343BJ-01024-0 Cylinder head cover gasket
RUBBERCylinder head cover gasket
RUBBER -
359101F4-5630 BoltBolt
-
9101E3-0630 BoltBolt
-
363R0-71015-1 Filler Cap,Engine OilFiller Cap,Engine Oil
-
373R0-07422-0 New partNew part
-
389701-1-1103 Spark plug (dcpr6e)
NGKSpark plug (dcpr6e)
NGK
