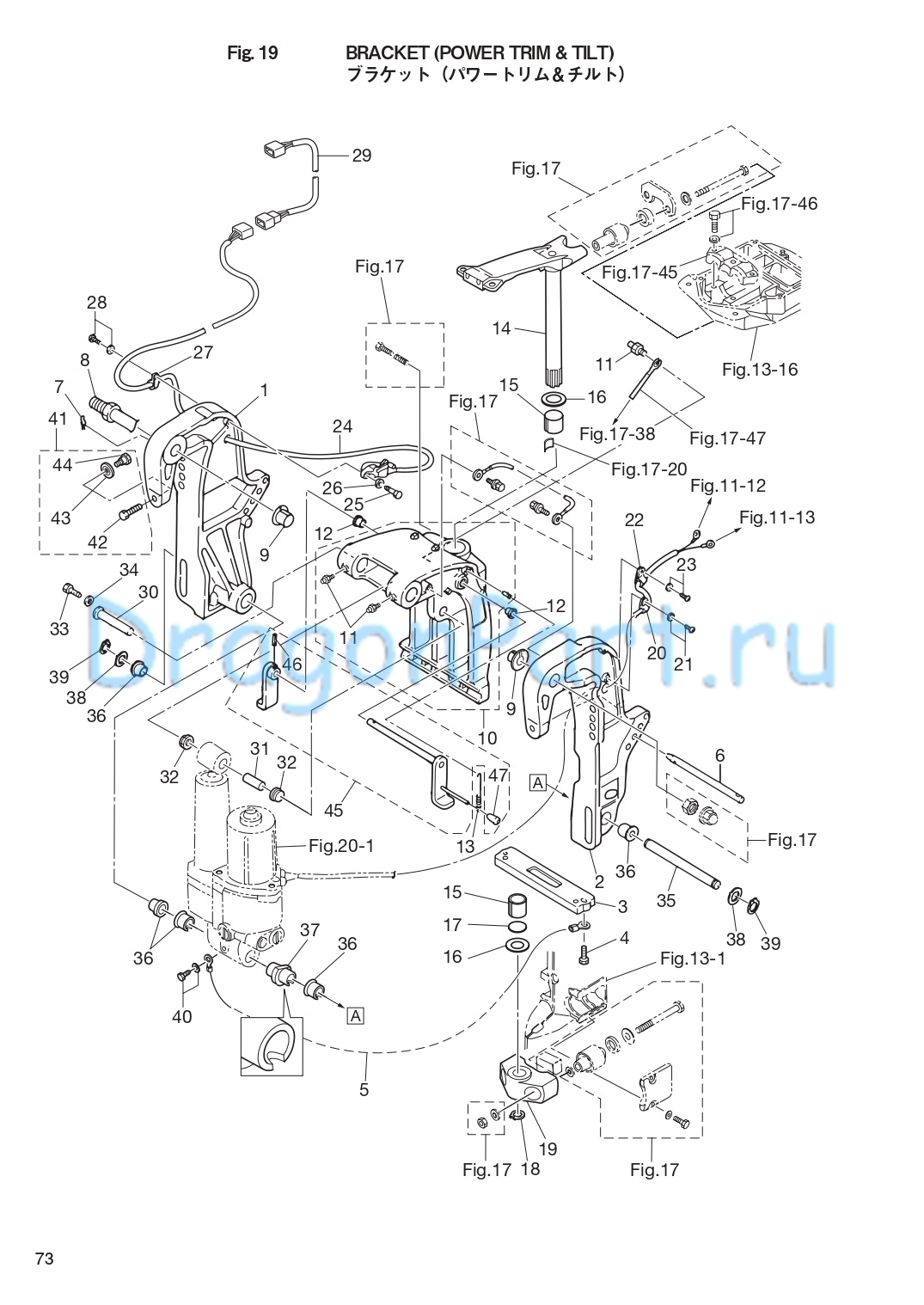

BRACKET (POWER TRIM AND TILT) для Tohatsu MW50D2 - 2013 года выпуска`
-
№АртикулНазвание
-
13GFQ77211-0 CLAMP BRACKET (PTT-R)
Stern bracket Starboard SideCLAMP BRACKET (PTT-R)
Stern bracket Starboard Side -
23GFQ77212-0 CLAMP BRACKET (PTT-L)
Stern bracket Port SideCLAMP BRACKET (PTT-L)
Stern bracket Port Side -
33C7-60218-2 ANODEANODE
-
4910103-6630 BOLTBOLT
-
5398-62396-1 GROUND L=130
PTT Assy-Anode Clamp BracketGROUND L=130
PTT Assy-Anode Clamp Bracket -
63R0-77118-0 PTT THRUST RODPTT THRUST ROD
-
7951603-1000 SNAP PINSNAP PIN
-
83AD-62191-0 SWIVEL BRACKET SHAFT ASSY
Bracket BoltSWIVEL BRACKET SHAFT ASSY
Bracket Bolt -
93C8-77213-0 BUSHINGBUSHING
-
103Z7Q77208-1 SWIVEL BRACKET ASSYSWIVEL BRACKET ASSY
-
11344-67177-1 * GREASE FITTING* GREASE FITTING
-
12353-63207-0 COLLAR 10.2-12-12COLLAR 10.2-12-12
-
133R0-62473-0 TILT STOPPER SPRINGTILT STOPPER SPRING
-
143Z5Q62010-1 STEERING SHAFT ASSYSTEERING SHAFT ASSY
-
15353-62417-0 BUSHING 30-36-41BUSHING 30-36-41
-
16353-62423-1 THRUST PLATE (UPPER)THRUST PLATE (UPPER)
-
17353-62415-0 O-RING 3.5-29.7O-RING 3.5-29.7
-
18945103-2800 C-RING d=28C-RING d=28
-
193Z5Q61411-1 MOUNT BRACKETMOUNT BRACKET
-
20336-06973-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
-
21921503-5612 SCREWSCREW
-
22345-06915-0 CLAMP 6.5-14LCLAMP 6.5-14L
-
23921503-5612 SCREWSCREW
-
243Z4-72574-0 TRIM SENSOR L=1700
for EPTO ModelTRIM SENSOR L=1700
for EPTO Model -
25910103-0620 BOLT
for EPTO ModelBOLT
for EPTO Model -
263C8-66308-0 WASHER 6-16-1.5
for EPTO ModelWASHER 6-16-1.5
for EPTO Model -
27336-06973-0 CLAMP 6.5-47.5P
for EPTO ModelCLAMP 6.5-47.5P
for EPTO Model -
28921503-5612 SCREW
for EPTO ModelSCREW
for EPTO Model -
293T1-72573-0 EXTENSION CORD L=6000
for EPTO ModelEXTENSION CORD L=6000
for EPTO Model -
303R0-77071-1 CYLINDER PIN (UPPER)CYLINDER PIN (UPPER)
-
313R0-77075-0 BUSHING 13-16-40BUSHING 13-16-40
-
323R0-77076-0 BUSHING 13-17-19.5BUSHING 13-17-19.5
-
339101E3-0612 BOLTBOLT
-
34345-05122-1 WASHER 6.5-23-1.5WASHER 6.5-23-1.5
-
353R0-77101-1 CYLINDER PIN (LOWER)CYLINDER PIN (LOWER)
-
363C8-77076-1 BUSHING 18-24-22BUSHING 18-24-22
-
373Z5-77103-0 BUSHING 18-24-60BUSHING 18-24-60
-
383R0-77112-0 WASHER 18.2-34-1WASHER 18.2-34-1
-
39945103-1800 C-RING d=18C-RING d=18
-
409101E3-5612 BOLTBOLT
-
413C8-77217-0 CLAMP SCREW KITCLAMP SCREW KIT
-
423C8-77216-0 * CLAMP SCREW (PTT)* CLAMP SCREW (PTT)
-
43332-62101-1 * CLAMP SCREW PAD* CLAMP SCREW PAD
-
443C8-62107-0 * SHOULDER BOLT* SHOULDER BOLT
-
453GF-62466-1 TILT STOPPER KITTILT STOPPER KIT
-
46951403-3516 * SPRING PIN 3.5-16* SPRING PIN 3.5-16
-
47369-62433-1 * TILT STOPPER GRIP* TILT STOPPER GRIP
