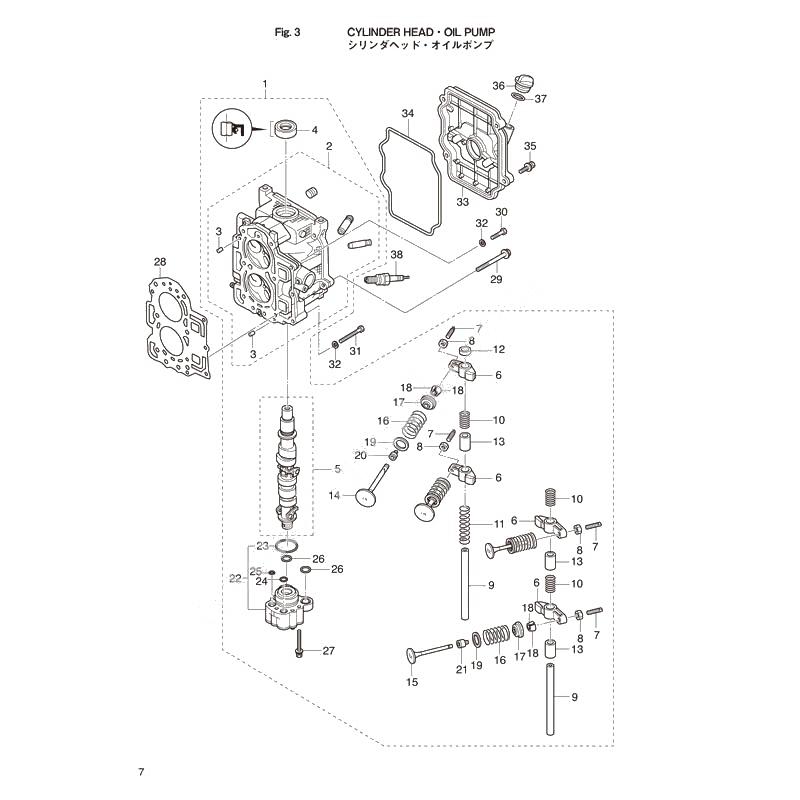

Cylinder head oil pump для Tohatsu MFS9.9C - 2013 года выпуска`
-
№АртикулНазвание
-
13BKB01000-0 Cylinder head completeCylinder head complete
-
23BKB01001-0 シリンダーヘッドアッシシリンダーヘッドアッシ
-
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
43H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
53BK-07810-0 Camshaft assyCamshaft assy
-
63AE-07235-0 Rocker armRocker arm
-
73R0-07238-0 ScrewScrew
-
83H8-07237-0 NutNut
-
93Y2-07920-0 Shaft rocker armShaft rocker arm
-
103H8-07225-0 Spring(L=30)Spring(L=30)
-
113H8-07229-0 Spring(L=51)Spring(L=51)
-
123R3-07227-0 Washer, 13.2-21.8-2Washer, 13.2-21.8-2
-
133H8-07239-0 Collar, Rocker Arm ShaftCollar, Rocker Arm Shaft
-
143AE-07901-0 Valve intakeValve intake
-
153AE-07902-0 Valve exhaustValve exhaust
-
163AE-07203-0 Valve springValve spring
-
173AE-07921-0 RetainerRetainer
-
183AE-07923-0 CotterCotter
-
193H6-07205-0 Seat, Valve SpringSeat, Valve Spring
-
203R3-07204-0 Seal, In Valve Stem
ブラックSeal, In Valve Stem
ブラック -
213R3-07206-0 Seal, EX Valve Stem
グリーンSeal, EX Valve Stem
グリーン -
223H8-07600-0 Oil Pump A'ssyOil Pump A'ssy
-
233H8-07639-0 O-ring Oil PumpO-ring Oil Pump
-
243H8-07632-0 O-Ring, 1.5-10.7O-Ring, 1.5-10.7
-
253H8-07631-0 O-Ring, 1.5-8.5O-Ring, 1.5-8.5
-
263H8-07635-0 O-Ring, 1.5-15.5O-Ring, 1.5-15.5
-
27910114-5635 New partNew part
-
9101E3-5635 New partNew part
-
283BJ-01005-0 シリンダヘッドガスケット (F15C/20C)シリンダヘッドガスケット (F15C/20C)
-
293H8-01013-0 Bolt, Cylinder Head 8-60Bolt, Cylinder Head 8-60
-
309161F4-0625 New partNew part
-
916114-0625 New partNew part
-
31916119-0640 New partNew part
-
910103-0640 New partNew part
-
329401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
333BKB01021-0 Cylinder head coverCylinder head cover
-
343BJ-01024-0 Cylinder head cover gasket
ラバーCylinder head cover gasket
ラバー -
35910114-5630 BoltBolt
-
363R0-71015-1 Filler Cap,Engine OilFiller Cap,Engine Oil
-
373R0-07422-0 Oリング 3.1-24.4Oリング 3.1-24.4
-
38DCPR6E NGK スパークプラグ《1本》 (一体型) (10)
NGKNGK スパークプラグ《1本》 (一体型) (10)
NGK
