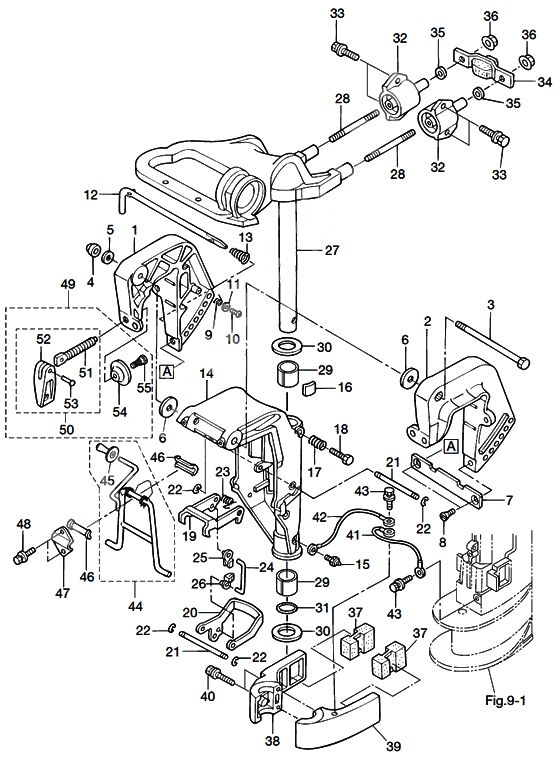

Bracket (mf & ef model) для Tohatsu MFS9.8A3 - 2013 года выпуска`
-
№АртикулНазвание
-
13V1Q62112-1 Stern bracket right (amb)
STARBOARD SIDEStern bracket right (amb)
STARBOARD SIDE -
23V1Q62113-1 Stern bracket left (amb)
PORT SIDEStern bracket left (amb)
PORT SIDE -
3309-62115-2 Bolt 8-122Bolt 8-122
-
4930403-0800 Nylon NutNylon Nut
-
59401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
6307-62116-1 WasherWasher
-
73B2-62118-0 Distance Plate, BracketDistance Plate, Bracket
-
89216E3-0612 ScrewScrew
-
921603-0612 ScrewScrew
-
9369-62146-1 Spring Stern BracketSpring Stern Bracket
-
10921703-0406 Stud BoltStud Bolt
-
11369-62147-0 WasherWasher
-
12350-62121-2 Thrust RodThrust Rod
-
13369-62122-2 Spring Thrust RodSpring Thrust Rod
-
143V1Q62310-0 Swivel bracket (amb)Swivel bracket (amb)
-
15344-67177-1 Grease NippleGrease Nipple
-
16345-62441-0 Friction PlateFriction Plate
-
17346-62421-1 Spring Friction PlateSpring Friction Plate
-
189101E3-0830 BoltBolt
-
910103-0830 BoltBolt
-
193V1-66322-0 Reverse LockReverse Lock
-
203V1-66313-0 Reverse Lock ArmReverse Lock Arm
-
213B2-66321-1 Shaft Reverse LockShaft Reverse Lock
-
22945303-0500 E-RingE-Ring
-
233B2-66315-0 Spring reverse lockSpring reverse lock
-
243V1-66305-1 Link reverse lockLink reverse lock
-
253C8-63733-0 Rod Snap 5-3Rod Snap 5-3
-
263K9-05223-0 Rod Snap 4-2Rod Snap 4-2
-
273V1Q62010-0 Steering shaft (amb)Steering shaft (amb)
-
283V1-61313-1 Stud BoltStud Bolt
-
29350-62417-0 Bushing Bracket ShaftBushing Bracket Shaft
-
30350-62423-0 Thrust PlateThrust Plate
-
31350-62415-0 O-RingO-Ring
-
323V1B61301-1 Rubber mount upperRubber mount upper
-
3V1-61301-1 Rubber mount upperRubber mount upper
-
339101F4-5620 BoltBolt
-
910114-5620 BoltBolt
-
343V1-61333-1 Damper UpperDamper Upper
-
359401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
363V1-61324-0 NutNut
-
373V1-61302-0 Rubber Mount LowerRubber Mount Lower
-
383V1Q61401-0 Mount bracket right (amb)
STARBOARD SIDEMount bracket right (amb)
STARBOARD SIDE -
393V1Q61402-0 Mount bracket left (amb)
PORT SIDEMount bracket left (amb)
PORT SIDE -
409101E3-5652 Bolt & washerBolt & washer
-
413A3-62396-1 New part
DRIVE SHAFT HOUSING-MOUNT BRACKET (R)New part
DRIVE SHAFT HOUSING-MOUNT BRACKET (R) -
423A3-62396-1 New part
SWIVEL BRACKET-MOUNT BRACKET (R)New part
SWIVEL BRACKET-MOUNT BRACKET (R) -
439101E3-5612 Bolt & washerBolt & washer
-
443V1-62431-1 Tilt Stopper Ass'yTilt Stopper Ass'y
-
453AS-62433-0 Grip Tilt StopperGrip Tilt Stopper
-
46393-62437-1 BushingBushing
-
47369-62439-1 Set Plate Tilt StopperSet Plate Tilt Stopper
-
489101E3-5612 Bolt & washerBolt & washer
-
493V1Q62105-0 Clamp screw kitClamp screw kit
-
503V1Q62108-0 Clamp screw assyClamp screw assy
-
513V1-62106-0 Clamp screwClamp screw
-
52332Q62102-1 Handle clamp screwHandle clamp screw
-
533C8-62104-2 RivetRivet
-
3C8-62104-1 RivetRivet
-
54332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
553C8-62107-0 Shoulder boltShoulder bolt
