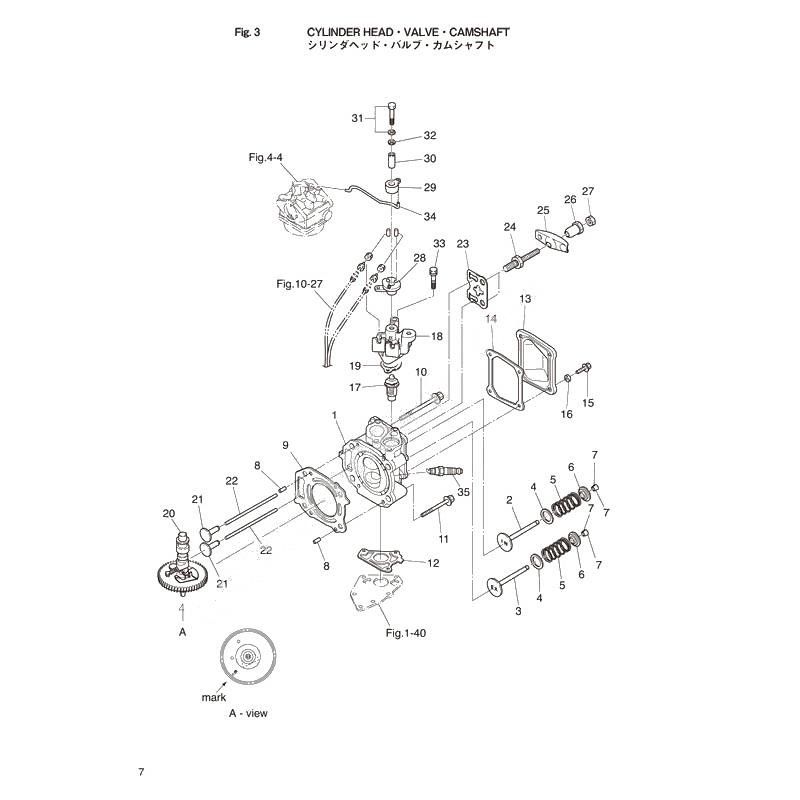

Cylinder head Valve Camshaft для Tohatsu MFS5CD - 2013 года выпуска`
-
№АртикулНазвание
-
13R4B01001-1 Cylinder Head Comp.Cylinder Head Comp.
-
23GR-07901-0 Valve intakeValve intake
-
33GR-07902-0 Valve exhaustValve exhaust
-
43H6-07205-0 Seat, Valve SpringSeat, Valve Spring
-
53AE-07203-0 Valve springValve spring
-
63H6-07221-0 Retaine,int. & Exh.Retaine,int. & Exh.
-
73H6-07223-0 CotterCotter
-
8345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
93H6-01005-1 Gasket, Cyl. HeadGasket, Cyl. Head
-
103H6-01012-0 Bolt, Cyl. HeadBolt, Cyl. Head
-
113H6-01013-0 Bolt, Cyl. HeadBolt, Cyl. Head
-
123H6-02306-0 Gasket,exh.portGasket,exh.port
-
133H6B01021-0 Cover,Cyl.headCover,Cyl.head
-
143H6-01024-0 Gasket,head CoverGasket,head Cover
-
15910121-0616 BoltBolt
-
163C8-66308-0 ワッシャ 6-16-1.5ワッシャ 6-16-1.5
-
173H6-01030-0 Thermostat
マーク 52B PRVThermostat
マーク 52B PRV -
183GRB01031-0 Thermostat capThermostat cap
-
19346-01032-0 ガスケットサ-モスタットガスケットサ-モスタット
-
203R4-07010-1 カムシャフト (F6A)
マーク6カムシャフト (F6A)
マーク6 -
213H6-07231-0 LifterLifter
-
223H6-07232-0 Push RodPush Rod
-
233H6-07233-0 Prate, Push RodPrate, Push Rod
-
243H6-07234-0 Bolt, PivotBolt, Pivot
-
253GR-07935-0 ロッカ-ア-ムロッカ-ア-ム
-
263H6-07236-0 Pivot, Rocker ArmPivot, Rocker Arm
-
273H6-07937-0 Adjusting NutAdjusting Nut
-
283GR-63611-0 Throttle drumThrottle drum
-
293GR-63612-0 Throttle OpenerThrottle Opener
-
303R3-66124-0 CollarCollar
-
31910103-6635 BoltBolt
-
323C8-66308-0 ワッシャ 6-16-1.5ワッシャ 6-16-1.5
-
33910103-6645 BoltBolt
-
343H6-63617-0 Throttle RodThrottle Rod
-
35DCPR6E NGK スパークプラグ《1本》 (一体型) (10)
NGKNGK スパークプラグ《1本》 (一体型) (10)
NGK
