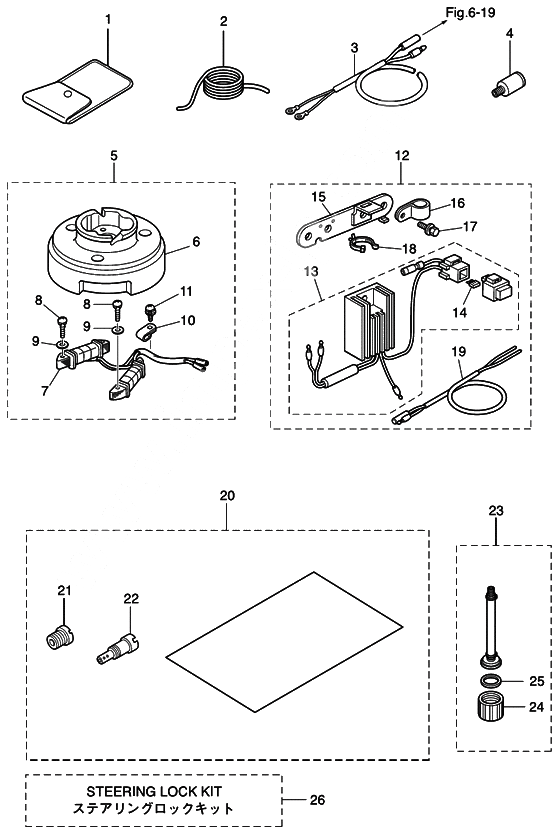

Optional parts (2) accessories для Tohatsu MFS5C - 2013 года выпуска`
-
№АртикулНазвание
-
13BJ-72100-0 Tool set (f15c/f20c)Tool set (f15c/f20c)
-
2312-72201-0 Safety RopeSafety Rope
-
3399-76130-0 Battery cable (1.716m)
FOR SAIL PROBattery cable (1.716m)
FOR SAIL PRO -
4336-60007-0 New partNew part
-
53GR-06128-0 Alternator kit f4/5/6c
12V60WAlternator kit f4/5/6c
12V60W -
63AS-06001-0 Flywheel cup (mf54) for use w/alternator
MF54 MARK 50 / USE ALTERNATERFlywheel cup (mf54) for use w/alternator
MF54 MARK 50 / USE ALTERNATER -
73GR-06023-0 Alternator assy. f5/6cAlternator assy. f5/6c
-
8921503-0525 Stud BoltStud Bolt
-
9940103-0500 WasherWasher
-
10369-06915-0 ClampClamp
-
11921521-6408 Stud BoltStud Bolt
-
123GR-76160-0 Rectifier kit f4/5/6c
USE ALTERNATOR KITRectifier kit f4/5/6c
USE ALTERNATOR KIT -
133GR-76060-0 Rectifier completeRectifier complete
-
143GR-76246-0 Fuse 10aFuse 10a
-
153GR-06900-0 Electric bracket assyElectric bracket assy
-
16345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
17910103-5614 BoltBolt
-
183BJ-84398-0 Lead wire band 135Lead wire band 135
-
19369-76161-0 Extension CordExtension Cord
-
203GR-10230-0 Altitude adjustment kit 5ps
5PS / HIGH ALTITUDEAltitude adjustment kit 5ps
5PS / HIGH ALTITUDE -
213R1-03251-0 Жиклер главный
5PS / HIGH ALTITUDEЖиклер главный
5PS / HIGH ALTITUDE -
223R6-03254-0 Pilot Jet #42(High Alt)
HIGH ALTITUDEPilot Jet #42(High Alt)
HIGH ALTITUDE -
233GR-72406-0 Flushing attachment assy f2-20hpFlushing attachment assy f2-20hp
-
243GR-70212-0 Joint flushing assyJoint flushing assy
-
253T1-67147-0 Seal ringSeal ring
-
263GR-62500-1 Steering lock kit (f4/5/6bc)Steering lock kit (f4/5/6bc)
-
3GR-62500-0 Steering lock kit (f4/5/6bc)Steering lock kit (f4/5/6bc)
