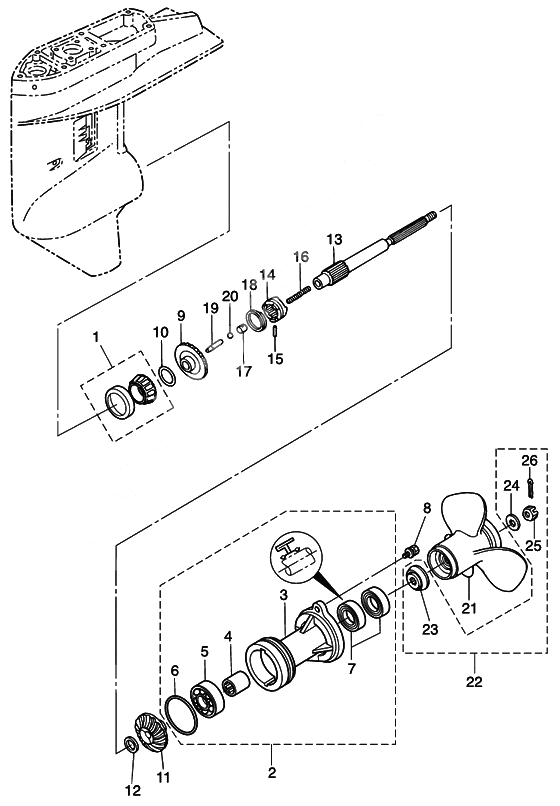

Gear case (propeller shaft) для Tohatsu MFS30B - 2013 года выпуска
-
№АртикулНазвание
-
1346-60215-0 Подшипник (30205) 25x52x16,25Подшипник (30205) 25x52x16,25
-
2349Q60100-7 Prop shaft housing assyProp shaft housing assy
-
3346Q60101-8 Prop shaft housingProp shaft housing
-
4346-60102-0 Needle BearingNeedle Bearing
-
59601-0-6205 Подшипник 25x52x15Подшипник 25x52x15
-
6332-60103-0 O-RingO-Ring
-
73AC-60111-0 Oil seal 18-28-5Oil seal 18-28-5
-
89101E3-5830 BoltBolt
-
910103-5830 BoltBolt
-
9346-64010-1 Bevel Gear ABevel Gear A
-
10369-64081-1 Shim, 26. 5-34. 8-0.1Shim, 26. 5-34. 8-0.1
-
10369-64082-1 Shim, 26. 5-34. 8-0.15Shim, 26. 5-34. 8-0.15
-
113AC-64030-0 Bevel Gear C
3 LINEBevel Gear C
3 LINE -
12346-64032-0 New partNew part
-
13346-64211-6 プロペラシャフトプロペラシャフト
-
143AC-64215-1 Clutch f25/30bClutch f25/30b
-
15346-64218-0 New partNew part
-
16332-64221-0 New partNew part
-
17350-64222-1 Spring holder clutchSpring holder clutch
-
18346-64219-0 New partNew part
-
193C8-64223-1 Push rod, clutchPush rod, clutch
-
20965002-0803 Steel ball, 3/8Steel ball, 3/8
-
21346B64106-5 Prop 25&30 hp (10.2 dia. x 8.3 pitch)
OPT 3 X 260 X 210Prop 25&30 hp (10.2 dia. x 8.3 pitch)
OPT 3 X 260 X 210 -
213R0B64518-0 Propeller ds 9 (9.8 dia x 9.3 pitch) black
TRANSOM UL / STD 3 X 247 X 229Propeller ds 9 (9.8 dia x 9.3 pitch) black
TRANSOM UL / STD 3 X 247 X 229 -
213R0B64521-0 Propeller ds 10 (9.7 dia x 10 pitch) black
TRANSOM L FOR JAPAN / STD 3 X 247 X 254Propeller ds 10 (9.7 dia x 10 pitch) black
TRANSOM L FOR JAPAN / STD 3 X 247 X 254 -
213R0B64523-0 Propeller ds 11 (9.8 dia x 11 pitch) black
TRANSOM S & L FOR EX / STD 3 X 249 X 279Propeller ds 11 (9.8 dia x 11 pitch) black
TRANSOM S & L FOR EX / STD 3 X 249 X 279 -
213R0B64525-0 Propeller ds 12 (9.8 dia x 12 pitch) black
TRANSOM S FOR JAPAN / STD 3 X 249 X 305Propeller ds 12 (9.8 dia x 12 pitch) black
TRANSOM S FOR JAPAN / STD 3 X 249 X 305 -
213R0B64527-0 Propeller ds 13 (9.6 dia x 13 pitch) black
TRANSOM S FOR EX / STD 3 X 244 X 330Propeller ds 13 (9.6 dia x 13 pitch) black
TRANSOM S FOR EX / STD 3 X 244 X 330 -
21349B64529-1 Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)
OPT 3 X 252 X 360Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)
OPT 3 X 252 X 360 -
223R0-87326-0 Propeller Hardwear KitPropeller Hardwear Kit
-
23346-64231-5 New partNew part
-
24346-64124-5 WasherWasher
-
25346-64121-5 ナット、プロペラナット、プロペラ
-
26951503-0322 Split pin, 3-22Split pin, 3-22
