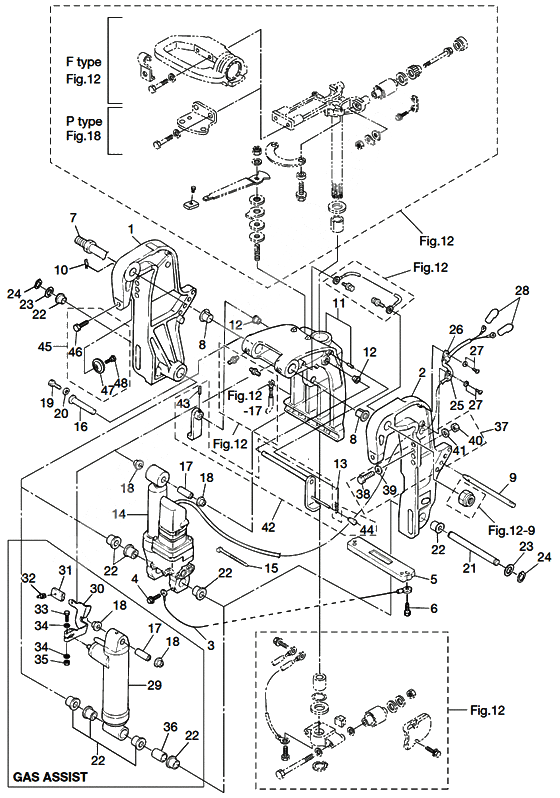

Bracket (ptt & gas assist) для Tohatsu MFS25B - 2013 года выпуска`
-
№АртикулНазвание
-
13AEQ77211-1 Clamp bracket right (ptt)
FOR EFT / STARBOARD SIDEClamp bracket right (ptt)
FOR EFT / STARBOARD SIDE -
3AEQ77211-0 Clamp bracket right (ptt)Clamp bracket right (ptt)
-
13AFQ77211-1 Clamp bracket (right) gas assist type
FOR GAS ASSIST MODEL / STARBOARD SIDEClamp bracket (right) gas assist type
FOR GAS ASSIST MODEL / STARBOARD SIDE -
3AFQ77211-0 Clamp bracket (right) gas assist typeClamp bracket (right) gas assist type
-
23AEQ77212-2 Clamp bracket left (ptt)
FOR EFT / PORT SIDEClamp bracket left (ptt)
FOR EFT / PORT SIDE -
3AEQ77212-0 Clamp bracket left (ptt)Clamp bracket left (ptt)
-
23AFQ77212-2 Clamp bracket (left) gas assist type
FOR GAS ASSIST MODEL / PORT SIDEClamp bracket (left) gas assist type
FOR GAS ASSIST MODEL / PORT SIDE -
3AFQ77212-0 Clamp bracket (left) gas assist typeClamp bracket (left) gas assist type
-
3398-62396-1 Ground Wire
ANODE-PTT ASSY / FOR PTT MODELGround Wire
ANODE-PTT ASSY / FOR PTT MODEL -
4910103-5612 Bolt
FOR PTT MODELBolt
FOR PTT MODEL -
53C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
6910103-5630 BoltBolt
-
73AD-62191-0 Swivel bracket bolt (ptt)
BRACKET BOLTSwivel bracket bolt (ptt)
BRACKET BOLT -
83C8-77213-0 Bushing Bracket BoltBushing Bracket Bolt
-
93R0-77118-0 Thrust RodThrust Rod
-
10951603-1000 R-PinR-Pin
-
113ACQ77208-2 Swivel bracket (ptt)
PINSwivel bracket (ptt)
PIN -
3ACQ77208-0 Swivel bracket (ptt)Swivel bracket (ptt)
-
12353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
133R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
143AC-77151-1 Power trim & tilt assy
SEE FIG.14 / FOR PTT MODELPower trim & tilt assy
SEE FIG.14 / FOR PTT MODEL -
151H2-31534-0 Lead wire band-local purchase
FOR PTT MODELLead wire band-local purchase
FOR PTT MODEL -
163R0-77071-1 Cylinder pin upperCylinder pin upper
-
3KY-77071-0 Cylinder pin upperCylinder pin upper
-
173R0-77075-0 BushingBushing
-
183R0-77076-0 BushingBushing
-
19910103-0612 New partNew part
-
20345-05122-1 Washer rachetWasher rachet
-
213R0-77101-1 Cylinder pin lowerCylinder pin lower
-
3KY-77101-0 Cylinder pin lowerCylinder pin lower
-
223C8-77076-1 New part
CLAMP BRACKET CYLINDER / FOR PTT MODELNew part
CLAMP BRACKET CYLINDER / FOR PTT MODEL -
233R0-77112-0 WasherWasher
-
24945103-1800 C-RingC-Ring
-
25336-06973-0 Clamp Lead Wire
FOR PTT MODELClamp Lead Wire
FOR PTT MODEL -
26345-06915-0 Clamp 6.5-14
FOR PTT MODELClamp 6.5-14
FOR PTT MODEL -
27921503-5612 Stud Bolt
FOR PTT MODELStud Bolt
FOR PTT MODEL -
283Y1-76145-0 Terminal Cap
RED STARTER SOLENOID / FOR PTT MODELTerminal Cap
RED STARTER SOLENOID / FOR PTT MODEL -
293R0Q77601-2 Gas shock absorber
FOR GAS ASSIST MODELGas shock absorber
FOR GAS ASSIST MODEL -
303R0-66311-0 Rever, Revers Lock
FOR GAS ASSIST MODELRever, Revers Lock
FOR GAS ASSIST MODEL -
313AL-66333-0 Lock lever grip
FOR GAS ASSIST MODELLock lever grip
FOR GAS ASSIST MODEL -
32346-66334-0 Stopper
FOR GAS ASSIST MODELStopper
FOR GAS ASSIST MODEL -
333V2-60001-0 Bolt 6-35 precoated
FOR GAS ASSIST MODELBolt 6-35 precoated
FOR GAS ASSIST MODEL -
349401E3-0600 Washer
FOR GAS ASSIST MODELWasher
FOR GAS ASSIST MODEL -
940113-0600 WasherWasher
-
359301E3-0600 Nut
FOR GAS ASSIST MODELNut
FOR GAS ASSIST MODEL -
930103-0600 NutNut
-
363R0-77105-0 Втулка тяги КПП
FOR GAS ASSIST MODELВтулка тяги КПП
FOR GAS ASSIST MODEL -
373AD-72120-0 Rigging bolt setRigging bolt set
-
383C7-62133-2 BoltBolt
-
39353-61334-0 WasherWasher
-
403C7-62139-1 Nut,P1.25Nut,P1.25
-
419401E3-1200 WasherWasher
-
940103-1200 WasherWasher
-
423GF-62466-1 Tilt stopper (ptt type)
FOR PTT MODELTilt stopper (ptt type)
FOR PTT MODEL -
423AC-62466-1 Tilt stopper (gas assist)
FOR GAS ASSIST MODELTilt stopper (gas assist)
FOR GAS ASSIST MODEL -
43951403-3516 New partNew part
-
44369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
453C8-77217-0 Clamp screw kitClamp screw kit
-
463C8-77216-0 Clamp screw (ptt)Clamp screw (ptt)
-
47332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
483C8-62107-0 Shoulder boltShoulder bolt
