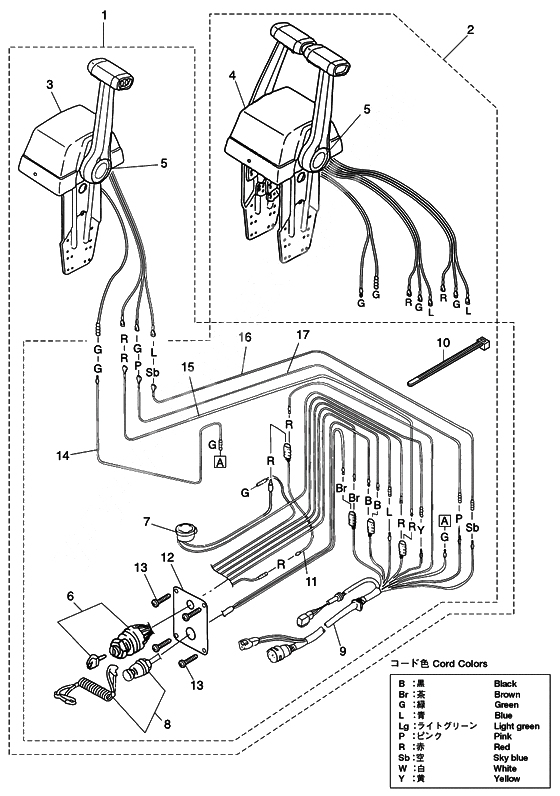

Optional parts (2) для Tohatsu MD75C2 - 2013 года выпуска`
-
№АртикулНазвание
-
13T5-84490-2 Binnacle mount control box kit single 50/70/90 tldi(old style)
FOR SINGLEBinnacle mount control box kit single 50/70/90 tldi(old style)
FOR SINGLE -
3T5-84490-0 Binnacle mount control box kit single 50/70/90 tldi(old style)Binnacle mount control box kit single 50/70/90 tldi(old style)
-
23T5-84540-2 Binnacle mount control box kit dual 50/70/90 tldi
FOR TWINBinnacle mount control box kit dual 50/70/90 tldi
FOR TWIN -
3T5-84540-0 Binnacle mount control box kit dual 50/70/90 tldiBinnacle mount control box kit dual 50/70/90 tldi
-
33T5-84480-1 Binnacle mount control box kit single 50/70/90 tldi(old style)
FOR SINGLEBinnacle mount control box kit single 50/70/90 tldi(old style)
FOR SINGLE -
3T5-84490-0 Binnacle mount control box kit single 50/70/90 tldi(old style)Binnacle mount control box kit single 50/70/90 tldi(old style)
-
43T5-84520-1 Binnacle mount control box kit dual 50/70/90 tldi
FOR TWINBinnacle mount control box kit dual 50/70/90 tldi
FOR TWIN -
3T5-84540-0 Binnacle mount control box kit dual 50/70/90 tldiBinnacle mount control box kit dual 50/70/90 tldi
-
53Z5-84462-0 Decal (tohatsu) not for sale
FOR SINGLEDecal (tohatsu) not for sale
FOR SINGLE -
6353-76020-3 Main Switch Ass'y
SINGLE X1 TWIN X2Main Switch Ass'y
SINGLE X1 TWIN X2 -
73C8-76171-0 Over-heat Buzzer
SINGLE X1 TWIN X2Over-heat Buzzer
SINGLE X1 TWIN X2 -
83A3-06830-0 Emergency Stop Switch B Ass'y
SINGLE X1 TWIN X2Emergency Stop Switch B Ass'y
SINGLE X1 TWIN X2 -
93T5-76115-1 Cord assy b (l=6200mm)
SINGLE X1 TWIN X2Cord assy b (l=6200mm)
SINGLE X1 TWIN X2 -
10178-34147-0 Lead wire band 170 (local purchase)
SINGLE X1 TWIN X2Lead wire band 170 (local purchase)
SINGLE X1 TWIN X2 -
11353-72546-0 Assist Cord(Red)
SINGLE X1 TWIN X2Assist Cord(Red)
SINGLE X1 TWIN X2 -
123T5-76201-0 Panel Main Switch
SINGLE X1 TWIN X2Panel Main Switch
SINGLE X1 TWIN X2 -
13921146-4516 Stud Bolt
SINGLE X4 TWIN X8Stud Bolt
SINGLE X4 TWIN X8 -
143C7-84471-1 Cord,Neutral Switch,Green
GREEN / SINGLE X1 TWIN X2Cord,Neutral Switch,Green
GREEN / SINGLE X1 TWIN X2 -
153C7-84475-0 Cord,ptt Switch(red)
RED / SINGLE X1 TWIN X2Cord,ptt Switch(red)
RED / SINGLE X1 TWIN X2 -
163C7-84476-0 Cord,ptt Switch(sky-blue)
SKY BLUE / SINGLE X1 TWIN X2Cord,ptt Switch(sky-blue)
SKY BLUE / SINGLE X1 TWIN X2 -
173C7-84477-0 Cord PTT Switch,Pink
PINK / SINGLE X1 TWIN X2Cord PTT Switch,Pink
PINK / SINGLE X1 TWIN X2
