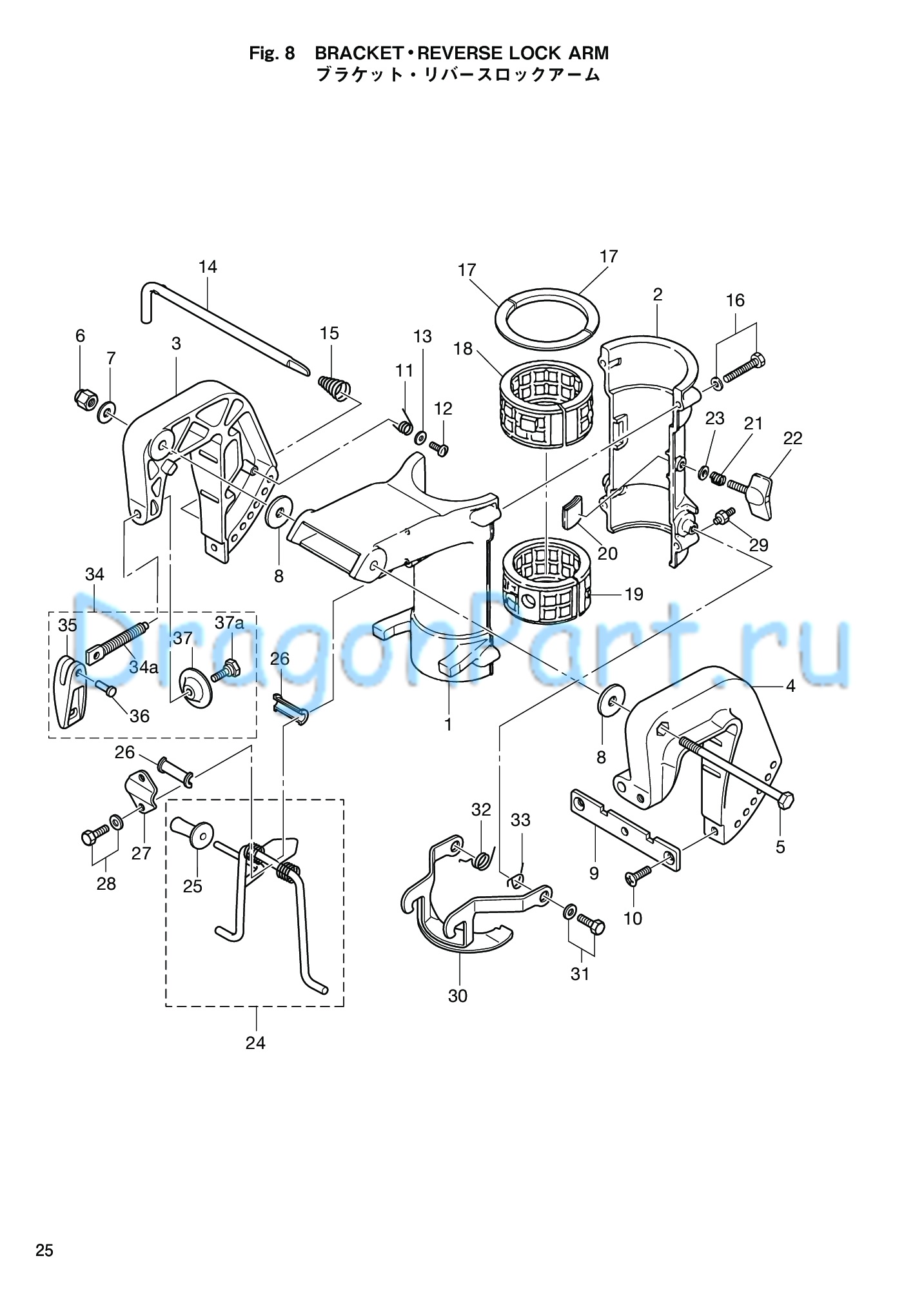

BRACKET REVERSE LOCK ARM для Tohatsu M5B - 2013 года выпуска
-
№АртикулНазвание
-
1369Q62391-2 Swivel BracketSwivel Bracket
-
2393Q62392-1 Swivel BracketSwivel Bracket
-
3369Q62112-3 Clamp Bracket (R)
Stern Bracket (Right) Starboard SideClamp Bracket (R)
Stern Bracket (Right) Starboard Side -
4369Q62113-2 Clamp Bracket (L)
Stern Bracket (Left) Port SideClamp Bracket (L)
Stern Bracket (Left) Port Side -
5309-62115-2 Bolt 8-122Bolt 8-122
-
6930403-0800 Nylon Nut 8-P1.25Nylon Nut 8-P1.25
-
79401E3-0800 WasherWasher
-
8307-62116-1 Washer 8.5-28-1Washer 8.5-28-1
-
9369-62118-0 Distance PlateDistance Plate
-
109216E3-0612 ScrewScrew
-
11369-62146-1 Stern Bracket SpringStern Bracket Spring
-
12921703-0406 ScrewScrew
-
13369-62147-0 Washer 4.3-16-1.5Washer 4.3-16-1.5
-
14350-62121-2 Thrust RodThrust Rod
-
15369-62122-2 Thrust Rod SpringThrust Rod Spring
-
169101E3-5635 BoltBolt
-
17369-62422-0 Thrust Plate (Upper)Thrust Plate (Upper)
-
18393-62416-1 BushingBushing
-
19393-62417-1 BushingBushing
-
20369-62441-1 Friction PieceFriction Piece
-
21309-62446-1 SpringSpring
-
22309Q62442-2 ScrewScrew
-
239401E3-0600 WasherWasher
-
243AS-62431-0 Tilt Stopper Ass'yTilt Stopper Ass'y
-
253AS-62433-0 * Tilt Stopper Grip* Tilt Stopper Grip
-
26393-62437-1 BushingBushing
-
27369-62439-1 Setting PlateSetting Plate
-
289101E3-5612 BoltBolt
-
29344-67177-1 Grease FittingGrease Fitting
-
30369-66313-0 Reverse Lock ArmReverse Lock Arm
-
'319101E3-5614 BoltBolt
-
'32369-66338-0 Reverse Lock Spring (R)Reverse Lock Spring (R)
-
'33369-66339-0 Reverse Lock Spring (L)Reverse Lock Spring (L)
-
'34369Q62105-0 Clamp Screw KitClamp Screw Kit
-
'34a369-62106-0 * Clamp Screw* Clamp Screw
-
'35307Q62102-1 * Clamp Screw Handle* Clamp Screw Handle
-
'363C8-62104-2 * Rivet 3-22* Rivet 3-22
-
'37332-62101-1 * Clamp Screw Pad* Clamp Screw Pad
-
'37a3C8-62107-0 * Shoulder Bolt* Shoulder Bolt
