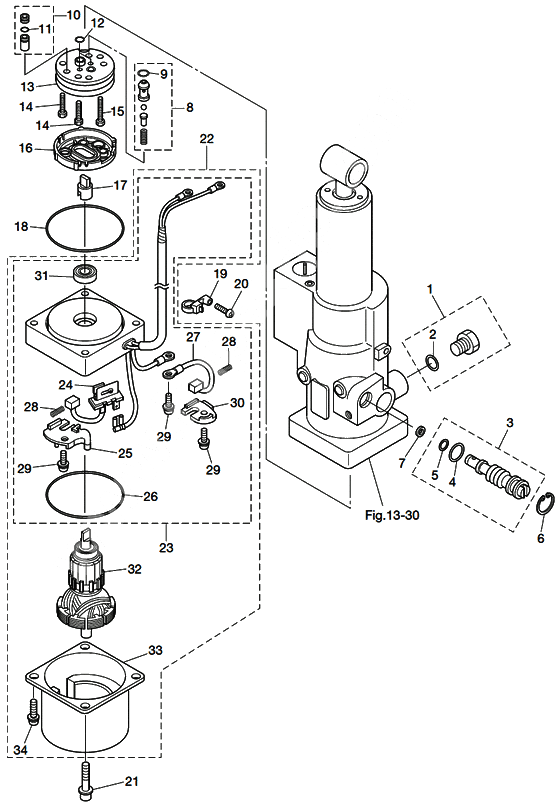

Power tilt для Tohatsu MFS8A3 - 2012 года выпуска`
-
№АртикулНазвание
-
13Z0-77221-0 Cap assyCap assy
-
23B7-77169-0 O-RingO-Ring
-
33Z0-77175-0 Manual valve assyManual valve assy
-
43R0-77177-0 O-RingO-Ring
-
53Z0-77179-0 O-RingO-Ring
-
63R0-77171-0 C-RingC-Ring
-
73R0-77173-0 Seal WasherSeal Washer
-
83Z0-77450-0 Relief valve assyRelief valve assy
-
93Z0-77179-0 O-RingO-Ring
-
103Z0-77460-0 Valve assyValve assy
-
113R0-77451-0 O-RingO-Ring
-
123B7-77169-0 O-RingO-Ring
-
133B7-77430-0 PumpPump
-
143B7-77432-1 BoltBolt
-
153B7-77431-1 BoltBolt
-
163B7-77434-1 Filter BFilter B
-
173E0-77163-0 Coupling PumpCoupling Pump
-
183R0-77167-0 O-RingO-Ring
-
193Z1-84398-1 BandBand
-
203V1-64333-0 Screw pre-coatedScrew pre-coated
-
213Z0-77431-0 BoltBolt
-
223Z0-77180-0 Motor assyMotor assy
-
233Z0-77192-0 Motor bracket assyMotor bracket assy
-
243Z0-77191-0 BreakerBreaker
-
253Z0-77187-0 Breaker holderBreaker holder
-
263Z0-77167-0 O-RingO-Ring
-
273E0-77183-0 Brush - not for saleBrush - not for sale
-
283E0-77184-0 Spring brush - not for saleSpring brush - not for sale
-
29921521-5512 Stud BoltStud Bolt
-
303Z0-77186-0 Brush HolderBrush Holder
-
313E0-77193-0 Oil seal - not for saleOil seal - not for sale
-
323Z0-77190-0 Armature assyArmature assy
-
333Z0-77195-0 Yoke assyYoke assy
-
349215E3-5512 ScrewScrew
-
921503-0512 ScrewScrew
