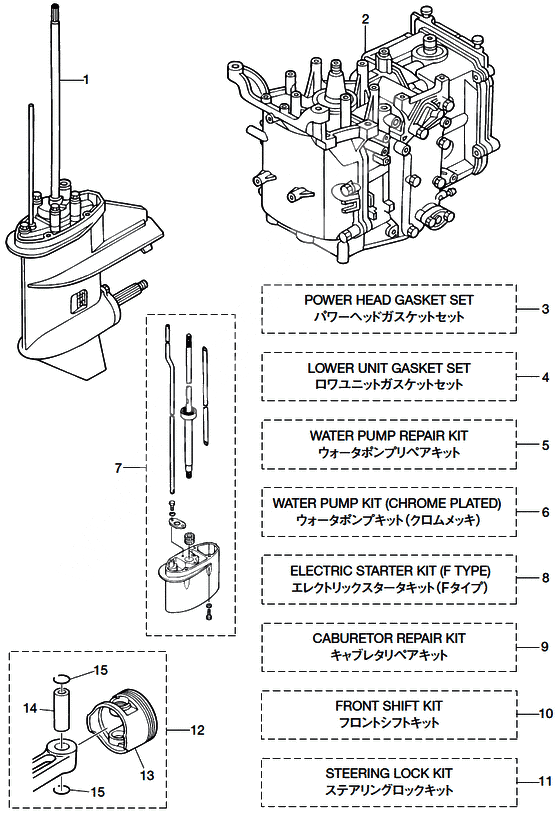

Assembly & kit parts для Tohatsu MFS8A3 - 2012 года выпуска`
-
№АртикулНазвание
-
13V1Q87301-4 Invalid part
FOR TRANSOM SInvalid part
FOR TRANSOM S -
13V1Q87302-4 Invalid part
FOR TRANSOM LInvalid part
FOR TRANSOM L -
13V1Q87304-4 Lower unit assy ul (amb) f9.8
FOR TRANSOM ULLower unit assy ul (amb) f9.8
FOR TRANSOM UL -
3V1Q87304-5 Lower unit assy ul (amb) f9.8Lower unit assy ul (amb) f9.8
-
23V1B87090-7 Short block (8-9.8/4-st)
8/9.8PSShort block (8-9.8/4-st)
8/9.8PS -
33V1-87121-0 Power Head Gasket SetPower Head Gasket Set
-
33V1-01005-0 Cykinder Head GasketCykinder Head Gasket
-
33V1-01303-0 Gasket engine baseGasket engine base
-
33H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
33V1-07653-0 Gasket,Oil PumpGasket,Oil Pump
-
33V1-01024-0 Gasket HeadcoverGasket Headcover
-
33R0-07422-0 New partNew part
-
33V1-00121-0 Oil Seal 30-45-8Oil Seal 30-45-8
-
3346-01032-0 New partNew part
-
33V1-02305-0 Exhaust Cover GasketExhaust Cover Gasket
-
33R3-01144-0 O-RingO-Ring
-
33V1-02104-0 O-RingO-Ring
-
33V1-02011-0 Caburetor GasketCaburetor Gasket
-
33V1-02012-0 O-RingO-Ring
-
33H6-07422-0 New partNew part
-
33B2-01215-0 Oil seal 12-28-5Oil seal 12-28-5
-
43B2-87321-4 Lower unit gasket kit 8/9.8bLower unit gasket kit 8/9.8b
-
43B2-61012-2 Gasket driveshaft housingGasket driveshaft housing
-
43B2-02312-2 GasketGasket
-
4332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
4345-65015-0 O-RingO-Ring
-
4369-60111-0 Oil SealOil Seal
-
43B2-65029-2 GasketGasket
-
4309-60111-0 Oil Seal 12-24-8Oil Seal 12-24-8
-
43B2-65020-1 Gasket, water pump case lowerGasket, water pump case lower
-
4369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
4332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
43B2-65018-2 GasketGasket
-
53B2-87322-2 Water pump repair kit 8-9.8 hpWater pump repair kit 8-9.8 hp
-
53B2-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
53B2-65022-0 New partNew part
-
53B2-65011-0 New partNew part
-
53B2-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
53B2-65018-2 GasketGasket
-
53B2-65029-2 GasketGasket
-
59161E3-0650 BoltBolt
-
5940103-0600 WasherWasher
-
53B2-65020-1 Gasket, water pump case lowerGasket, water pump case lower
-
63B2-65231-2 Water pump repair kit, chrome, 8 hpWater pump repair kit, chrome, 8 hp
-
63B2-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
63B2-65238-0 Liner chrome plated water pump case
CHROME PLATEDLiner chrome plated water pump case
CHROME PLATED -
63B2-65239-0 Guide plate chrome plated water pump
CHROME PLATEDGuide plate chrome plated water pump
CHROME PLATED -
63B2-65018-2 GasketGasket
-
63B2-65029-2 GasketGasket
-
73V1Q87314-4 Extension housing kit ul (amb)
FOR TRANSOM L --> ULExtension housing kit ul (amb)
FOR TRANSOM L --> UL -
73B2Q61110-2 Extension housing ul (amb)Extension housing ul (amb)
-
73V2-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
73B2-60003-1 Bushing Drive Shaft HousingBushing Drive Shaft Housing
-
73V1-64332-0 Stopoer,BushingStopoer,Bushing
-
79101E3-5612 Bolt & washerBolt & washer
-
73V1-64309-1 Drive Shaft ULDrive Shaft UL
-
73V1-66014-0 Cam Rod(UL)Cam Rod(UL)
-
73V1-65120-0 Труба воднаяТруба водная
-
83V2-76300-2 Electric start kit 8/9.8a2 a3 (f type)
FOR MFElectric start kit 8/9.8a2 a3 (f type)
FOR MF -
3V2-76300-3 Electric start kit 8/9.8a2 a3 (f type)Electric start kit 8/9.8a2 a3 (f type)
-
83AA-06091-0 Flywheel CapFlywheel Cap
-
83AA-06023-0 Alternator Ass'yAlternator Ass'y
-
8910103-5630 BoltBolt
-
83V1-06900-1 Electric bracketElectric bracket
-
3V1-06900-0 Electric bracketElectric bracket
-
83T5-06920-0 Mount RubberMount Rubber
-
83B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
83R0-66308-0 WasherWasher
-
83A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
89101E3-0620 BoltBolt
-
910103-0620 BoltBolt
-
83AA-76010-0 Starter Motor Ass'yStarter Motor Ass'y
-
83V1-76011-1 Bracket starter motorBracket starter motor
-
3V1-76011-0 Bracket starter motorBracket starter motor
-
89161F4-0830 BoltBolt
-
916114-0830 BoltBolt
-
89401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
83H8-76040-0 Starter SolenoidStarter Solenoid
-
83AA-76065-0 Rectifire CompleteRectifire Complete
-
8910103-5616 BoltBolt
-
8398-76080-0 Neutral Switch Ass'yNeutral Switch Ass'y
-
8398-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
83AA-76026-0 Main SwitchMain Switch
-
83AC-76120-0 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
8910103-5610 BoltBolt
-
83AA-76145-0 Terminal CapTerminal Cap
-
83B2-76147-2 Starter cableStarter cable
-
3B2-76147-1 Starter cableStarter cable
-
83V1-76148-0 Spiral Tube ProtectorSpiral Tube Protector
-
83Y0-76145-0 Terminal CapTerminal Cap
-
83Y1-76145-0 Terminal CapTerminal Cap
-
83V1-76066-0 Fuse WireFuse Wire
-
83R0-76064-0 Stay,Fuse HolderStay,Fuse Holder
-
83V1-06284-1 Stay terminal holderStay terminal holder
-
3V1-06284-0 Stay terminal holderStay terminal holder
-
83AA-06281-0 Hplder Cable TerminalHplder Cable Terminal
-
8174-35012-0 Collar 6-8-6Collar 6-8-6
-
89101E3-5612 Bolt & washerBolt & washer
-
89101E3-5616 Bolt & washerBolt & washer
-
83AA-06902-0 Cover Terminal HolderCover Terminal Holder
-
93V1-87122-0 Carburetor Rerair KitCarburetor Rerair Kit
-
93V1-03121-0 Gasket,float ChamberGasket,float Chamber
-
9922503-6412 Stud BoltStud Bolt
-
93C8-03125-0 FloatFloat
-
93C8-03126-0 Float Arm PinFloat Arm Pin
-
9921703-0406 Stud BoltStud Bolt
-
93V1-03147-1 Float ValveFloat Valve
-
93V1-03116-0 O-RingO-Ring
-
93V1-03182-0 Gasket,Cabretor CoverGasket,Cabretor Cover
-
9922503-6410 Stud BoltStud Bolt
-
93V1-03193-0 O-RingO-Ring
-
103V1Q80404-0 Front shift kit f8a a2 a3/9.8a a2 a3
FOR MF & EF/EFTFront shift kit f8a a2 a3/9.8a a2 a3
FOR MF & EF/EFT -
103Y3-66110-0 Shift lever f8/9.8a3 (amb)Shift lever f8/9.8a3 (amb)
-
109101E3-0625 BoltBolt
-
910103-0625 BoltBolt
-
103H6-63619-1 Collar, BracketCollar, Bracket
-
10346-67115-0 WasherWasher
-
103Y3Q67480-0 Bracket shift lever (amb)Bracket shift lever (amb)
-
109101E3-5625 Bolt & washerBolt & washer
-
109301E3-0600 NutNut
-
930103-0600 NutNut
-
103Y3-66134-0 Rod shift lever (amb)Rod shift lever (amb)
-
103R0-83715-0 Cable JointCable Joint
-
10930103-0500 NutNut
-
103AA-83719-0 WasherWasher
-
10951603-0800 R-PinR-Pin
-
103AA-66135-1 Shaft shift lever (amb)Shaft shift lever (amb)
-
103Y3-63621-0 GrommetGrommet
-
103Y3-67192-0 Choke RodChoke Rod
-
103Y3-67578-0 Shift decalShift decal
-
113V1-62500-0 Steering lock kit (f8/9.8 ep/ept)
FOR EP/EPTSteering lock kit (f8/9.8 ep/ept)
FOR EP/EPT -
113V1-62510-0 Steering lock plateSteering lock plate
-
113Z0-61334-0 Washer 8.5-34-3Washer 8.5-34-3
-
113Y3-60108-0 Pre-coated bolt 6-12Pre-coated bolt 6-12
-
113Y4-60108-0 Pre-coated bolt 8-20Pre-coated bolt 8-20
-
11346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
123FK-87130-0 Piston repair kit, std.
STDPiston repair kit, std.
STD -
123FK-87131-0 Piston repair kit, (0.5 o/s)
OPTPiston repair kit, (0.5 o/s)
OPT -
133V1-00001-1 Piston (std)
STDPiston (std)
STD -
3V1-00001-0 Piston (std)Piston (std)
-
133V1-00004-1 Piston (0.5mm o/z)
OPTPiston (0.5mm o/z)
OPT -
3V1-00004-0 Piston (0.5mm o/z)Piston (0.5mm o/z)
-
14332-00021-1 Piston PinPiston Pin
-
332-00021-0 Piston PinPiston Pin
-
15350-00024-1 Clip piston pinClip piston pin
