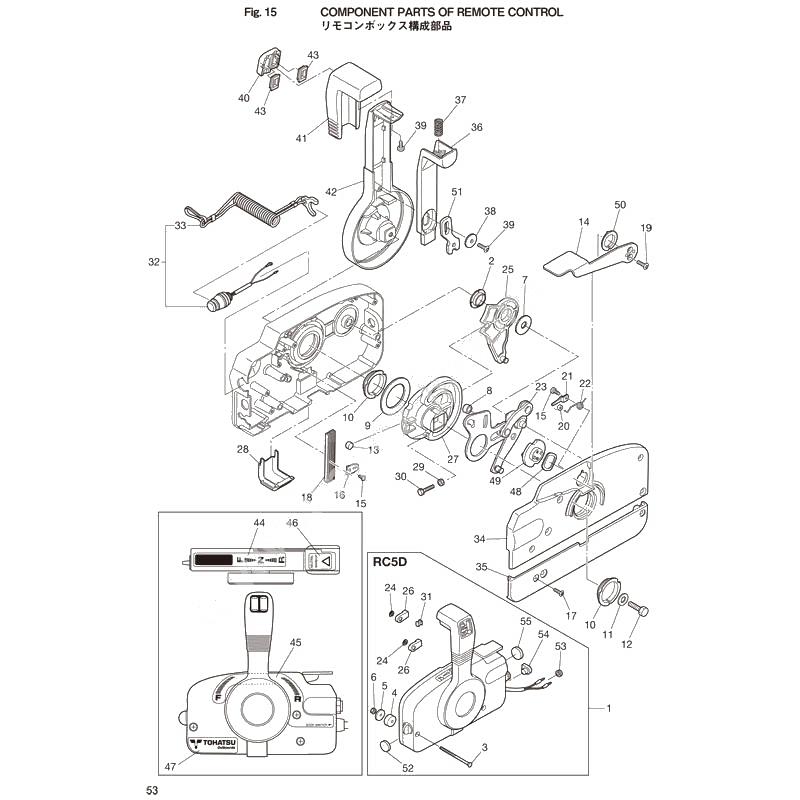

Component parts of remote control для Tohatsu MFS6CD - 2012 года выпуска`
-
№АртикулНазвание
-
13B7Q84360-1 Control Box Ass'y(RC5D)
RC5DControl Box Ass'y(RC5D)
RC5D -
23A3-84432-0 Bushing BBushing B
-
33A3-84375-0 ScrewScrew
-
43A3-84374-0 SpacerSpacer
-
5353-84371-0 WasherWasher
-
6930103-0600 NutNut
-
73A3-84383-0 WasherWasher
-
83A3-84421-0 RollerRoller
-
93A3-84422-0 Thrust PlateThrust Plate
-
103A3-84431-0 Bushing ABushing A
-
11940103-0800 WasherWasher
-
123A3-84442-0 BoltBolt
-
13353-84388-0 Roller Throttle DrumRoller Throttle Drum
-
143B7Q84312-0 Free throttle leverFree throttle lever
-
15921503-0406 ScrewScrew
-
163A3-84423-0 Retainer DetentRetainer Detent
-
17921603-0518 ScrewScrew
-
183A3-84307-0 Spring DetentSpring Detent
-
19921603-0512 ScrewScrew
-
203A3-84424-0 Roller Free AccelRoller Free Accel
-
213A3-84426-0 Retainer RollerRetainer Roller
-
223A3-84425-0 Spring Free AccelSpring Free Accel
-
233A3-84365-1 Throttle ArmThrottle Arm
-
24945303-0600 E-RingE-Ring
-
253A3-84381-0 Shift Gear Ass'yShift Gear Ass'y
-
263A3-83314-2 Terminal EyeTerminal Eye
-
273A3-84364-2 Drive GearDrive Gear
-
283A3-84429-0 Wire CoverWire Cover
-
29930103-0500 NutNut
-
30910103-0525 BoltBolt
-
313A3-84376-0 GrommetGrommet
-
32398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
33353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
343B7Q84441-0 Rear housingRear housing
-
353B7Q84366-0 Rear panelRear panel
-
363A3-84401-0 Arm Neutral LockArm Neutral Lock
-
373A3-84403-0 Spring Neutral LockSpring Neutral Lock
-
383A3-84407-0 Washer Lock ArmWasher Lock Arm
-
39921503-0510 ScrewScrew
-
403A3-84451-0 Finisher TiltFinisher Tilt
-
413A3-84404-0 GripGrip
-
423B7Q84343-0 コントロールレバーコントロールレバー
-
433A3-84452-0 Plug Tilt SwitchPlug Tilt Switch
-
443N5-84336-0 デカール(ハンドルポジション)デカール(ハンドルポジション)
-
453N5-84465-0 デカール(ハンドルポジションサイド)デカール(ハンドルポジションサイド)
-
463N5-84331-0 デカール(レバー)デカール(レバー)
-
473N5-84333-0 デカール(トーハツ)デカール(トーハツ)
-
483A3-84368-0 Wave WasherWave Washer
-
493A3-84391-0 Drum Free AccelDrum Free Accel
-
503A3-84435-0 Bushing EBushing E
-
513A3-84406-0 Plate, Lock ArmPlate, Lock Arm
-
52361-84414-0 Grommet AGrommet A
-
53369-84418-0 Grommet EGrommet E
-
54353-84321-0 GrommetGrommet
-
55369-84416-0 Grommet CGrommet C
