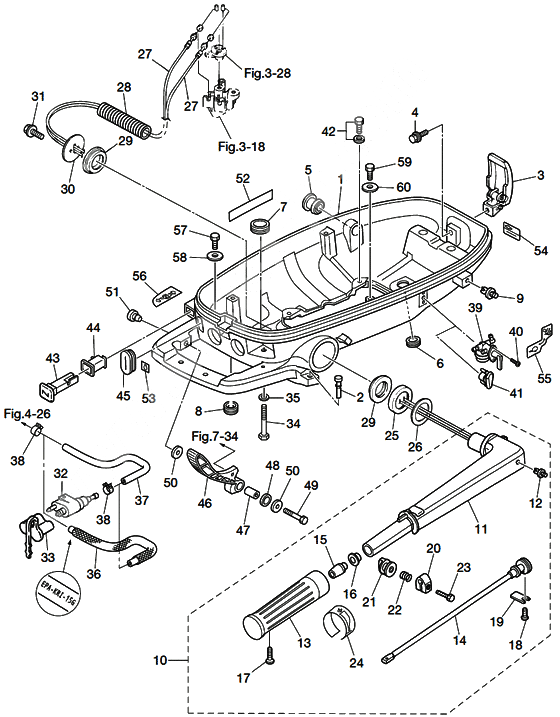

Bottom cowl & tiller handle для Tohatsu MFS5C - 2012 года выпуска
-
№АртикулНазвание
-
13GRQ67100-0 Lower motor cover f5/6c (amb)Lower motor cover f5/6c (amb)
-
23GR-67161-0 Grommet 5.5-9.5 - 44Grommet 5.5-9.5 - 44
-
33AA-67120-0 Cowl latch assy.Cowl latch assy.
-
3AA-67120-1 Cowl latch assy.Cowl latch assy.
-
4910103-5616 BoltBolt
-
53GR-67187-0 Grommet 10.5-15.5-20.5-32Grommet 10.5-15.5-20.5-32
-
6338-67163-0 Supporting Rubber Fuel PipeSupporting Rubber Fuel Pipe
-
73B7-76093-0 Grommet, 25-5Grommet, 25-5
-
8345-67117-0 New partNew part
-
9350-67154-0 New partNew part
-
103V1Q63003-4 Handle assy (amb)Handle assy (amb)
-
113V1Q63011-3 Tiller handle (amb)Tiller handle (amb)
-
12350-67154-0 New partNew part
-
133R3-63012-0 GripGrip
-
143V1-63041-0 Throttle ShaftThrottle Shaft
-
153H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
163H6-63510-0 BushingBushing
-
17920803-0518 Stud BoltStud Bolt
-
189215E3-0612 ScrewScrew
-
921503-0612 ScrewScrew
-
193B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
203V1-63035-1 Friction PieceFriction Piece
-
213V1-63077-0 Adjusting NutAdjusting Nut
-
223V1-63036-0 Spring WasherSpring Washer
-
239101E3-0625 BoltBolt
-
910103-0625 BoltBolt
-
243V9-72019-0 Label,ThrottleLabel,Throttle
-
253H6-63026-0 Spacer, HandleSpacer, Handle
-
263B2-63108-0 WasherWasher
-
273GR-63600-0 Throttle WireThrottle Wire
-
283H6-06133-0 Protector,wire HarnessProtector,wire Harness
-
293H6-63102-0 Bushing, Steering HandleBushing, Steering Handle
-
303GR-63107-0 CoverCover
-
319101E3-5616 Bolt & washerBolt & washer
-
32394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
333H6-70262-0 Propeller Fuel ConectorPropeller Fuel Conector
-
34910103-0625 BoltBolt
-
35940203-0600 WasherWasher
-
363JF-02160-0 Fuel hose w/protector
LOW PERMEATION PARTS / EPA-KRI-15G USAFuel hose w/protector
LOW PERMEATION PARTS / EPA-KRI-15G USA -
373JG-02203-0 Fuel hose
SEPARATE FUEL TANK MODEL / STD F/CONNECTOR-F/PUMPFuel hose
SEPARATE FUEL TANK MODEL / STD F/CONNECTOR-F/PUMP -
383AB-35143-0 Clip @ 9.5
SEPARATE FUEL TANK MODELClip @ 9.5
SEPARATE FUEL TANK MODEL -
393H9-70311-0 Fuel Cock
DUAL FUEL TANK MODELFuel Cock
DUAL FUEL TANK MODEL -
403GR-83821-0 Screw
DUAL FUEL TANK MODELScrew
DUAL FUEL TANK MODEL -
413GR-67129-0 Grommet
SEPARATE FUEL TANK MODELGrommet
SEPARATE FUEL TANK MODEL -
429101E3-5616 Bolt & washerBolt & washer
-
433H6-67151-0 Choke RodChoke Rod
-
443GR-67104-0 Choke rod bushingChoke rod bushing
-
453GR-66260-0 Grommet 21-38.5Grommet 21-38.5
-
463GR-66110-0 Shift LeverShift Lever
-
473GR-63066-0 Collar 15.9-17.9Collar 15.9-17.9
-
483GR-63108-0 Washer 30 - 45-1Washer 30 - 45-1
-
493H6-62445-0 BoltBolt
-
50345-05122-1 Washer rachetWasher rachet
-
513A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
-
523H6-67572-0 LABEL, STORAGELABEL, STORAGE
-
533BA-76199-0 Decal oil pressureDecal oil pressure
-
543H6-72026-0 Label, Spark Plug
DCPR6ELabel, Spark Plug
DCPR6E -
553JJ-72024-0 Decal fuel levelDecal fuel level
-
563JJ-67578-0 Decal shiftDecal shift
-
57910103-0612 New part
DUAL FUEL TANK MODELNew part
DUAL FUEL TANK MODEL -
58345-05122-1 Washer rachet
DUAL FUEL TANK MODELWasher rachet
DUAL FUEL TANK MODEL -
59910103-0612 New part
SEPARATE FUEL TANK MODEL / STDNew part
SEPARATE FUEL TANK MODEL / STD -
60345-05122-1 Washer rachet
SEPARATE FUEL TANK MODEL / STDWasher rachet
SEPARATE FUEL TANK MODEL / STD
