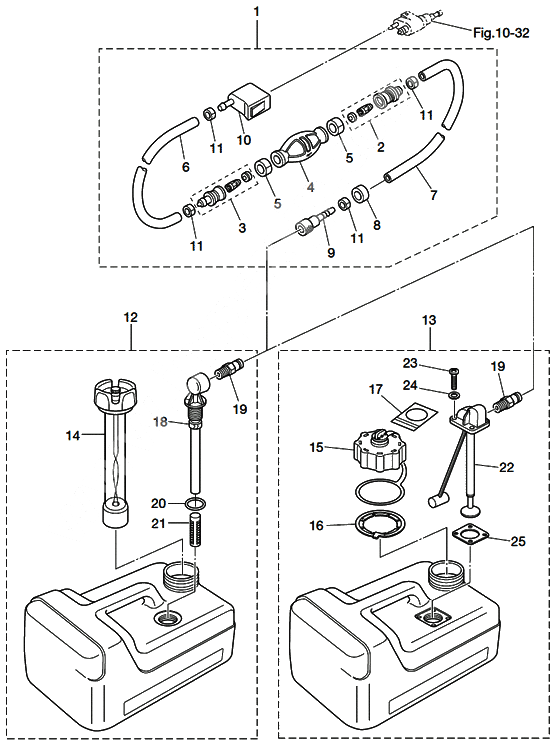

Separate fuel tank для Tohatsu MFS4C - 2012 года выпуска`
-
№АртикулНазвание
-
13H6-70200-2 Primer bulb assy (4-stroke - 4-30hp)
STDPrimer bulb assy (4-stroke - 4-30hp)
STD -
13AD-70200-2 Primer bulb assy (low permeation)
LOW PERMEATION PARTS / FOR USA MODELPrimer bulb assy (low permeation)
LOW PERMEATION PARTS / FOR USA MODEL -
23C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
33C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
43C7-70211-1 Primer Bulb
STDPrimer Bulb
STD -
43GF-70211-1 Primer bulb low permeation
LOW PERMEATION PARTS / FOR USA MODELPrimer bulb low permeation
LOW PERMEATION PARTS / FOR USA MODEL -
53C7-70217-0 ClampClamp
-
698AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
63GF-70241-1 Hose (low permeation)
LOW PERMEATION PARTS / EPA-KRI-15G USAHose (low permeation)
LOW PERMEATION PARTS / EPA-KRI-15G USA -
3GF-70241-0 Hose (low permeation)Hose (low permeation)
-
798AB70160-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 X2Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 X2 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
73GF-70240-1 Hose (low permeation)
LOW PERMEATION PARTS / EPA-KRI-15G USAHose (low permeation)
LOW PERMEATION PARTS / EPA-KRI-15G USA -
3GF-70240-0 Hose (low permeation)Hose (low permeation)
-
83GR-70280-0 Fuel connector mark
FOR USA MODELFuel connector mark
FOR USA MODEL -
93GF-70281-0 Fuel connectorFuel connector
-
103GR-70250-0 Fuel conn engine side female 4 stroke 4-30Fuel conn engine side female 4 stroke 4-30
-
11332-70201-0 ClampClamp
-
123B2-70167-1 Fuel tank 12l (3.1 gal) epa cap (tohatsu)
STD / TOHATSUFuel tank 12l (3.1 gal) epa cap (tohatsu)
STD / TOHATSU -
3V1-70167-1 Fuel tank 12l (3.1 gal) epa cap (tohatsu)Fuel tank 12l (3.1 gal) epa cap (tohatsu)
-
123B3-70167-1 Fuel tank 12l (3.1 gal) epa cap (nissan)
STD / NISSANFuel tank 12l (3.1 gal) epa cap (nissan)
STD / NISSAN -
3Y3-70167-1 Fuel tank 12l (3.1 gal) epa cap (nissan)Fuel tank 12l (3.1 gal) epa cap (nissan)
-
133V1-70167-1 Fuel tank 12l (3.1 gal) epa cap (tohatsu)
FOR USA MODEL / TOHATSUFuel tank 12l (3.1 gal) epa cap (tohatsu)
FOR USA MODEL / TOHATSU -
133Y3-70167-1 Fuel tank 12l (3.1 gal) epa cap (nissan)
FOR USA MODEL / NISSANFuel tank 12l (3.1 gal) epa cap (nissan)
FOR USA MODEL / NISSAN -
143B2-70050-1 Fuel gauge vented cap 3 gal tank
STDFuel gauge vented cap 3 gal tank
STD -
153AC-70052-1 Fuel tank cap assy (epa/carb)
FOR USA MODELFuel tank cap assy (epa/carb)
FOR USA MODEL -
163AC-70055-0 Retaining ring fuel cap
FOR USA MODELRetaining ring fuel cap
FOR USA MODEL -
173AC-70352-1 Instruction tag
FOR USA MODELInstruction tag
FOR USA MODEL -
183B2-70155-0 Fuel Pickup
STDFuel Pickup
STD -
193E0-70270-0 New partNew part
-
203C7-70199-0 O-Ring
STDO-Ring
STD -
213C7-70113-0 Filter
STDFilter
STD -
223V1-70157-0 Fuel pick-up assy w/gauge 3 gal.(epa)
FOR USA MODELFuel pick-up assy w/gauge 3 gal.(epa)
FOR USA MODEL -
233AC-70140-0 Screw fuel pick-up
FOR USA MODELScrew fuel pick-up
FOR USA MODEL -
243AC-70145-0 Washer fuel pick-up
FOR USA MODELWasher fuel pick-up
FOR USA MODEL -
253AC-70150-0 Gasket fuel pick-up
FOR USA MODELGasket fuel pick-up
FOR USA MODEL
