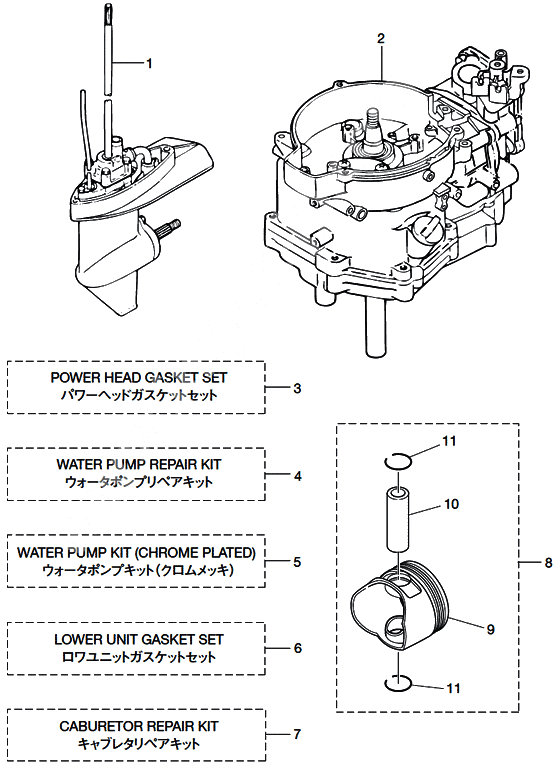

Assembly & kit parts для Tohatsu MFS4C - 2012 года выпуска`
-
№АртикулНазвание
-
1369Q87301-4 LOWER UNIT ASSEMBLY (S)
FOR TRANSOM SLOWER UNIT ASSEMBLY (S)
FOR TRANSOM S -
1369Q87302-4 Lower unit l (amb)
FOR TRANSOM L / STDLower unit l (amb)
FOR TRANSOM L / STD -
23GRB87090-0 Engine short block kit f4/5/6cEngine short block kit f4/5/6c
-
3GRB87090-1 Engine short block kit f4/5/6cEngine short block kit f4/5/6c
-
33AS-87121-0 Power head gasket set 4b/5b/6bPower head gasket set 4b/5b/6b
-
33H6-01005-1 Gasket, Cyl. HeadGasket, Cyl. Head
-
33H6-02306-0 Gasket,exh.portGasket,exh.port
-
33H6-01024-0 Gasket,head CoverGasket,head Cover
-
3346-01032-0 New partNew part
-
33AS-07432-0 Gasket breather capGasket breather cap
-
33H6-07422-0 New partNew part
-
3101-00121-0 Oil seal,20-35-7Oil seal,20-35-7
-
33H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
33H6-02011-0 Gasket, carburetorGasket, carburetor
-
33H6-02104-0 O-RingO-Ring
-
3334-00122-0 Oil seal 25-40-8Oil seal 25-40-8
-
33H6-07402-0 Gasket, Oil PanGasket, Oil Pan
-
33H6-02305-0 Gasket, Exh.plateGasket, Exh.plate
-
33R1-07605-0 O-ring Oil PumpO-ring Oil Pump
-
3345-66021-0 O-RingO-Ring
-
3369-01215-0 Oil SealOil Seal
-
3369-01214-0 Gasket Crank Case HeadGasket Crank Case Head
-
33H6-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
4369-87322-1 New partNew part
-
4369-65018-0 Gasket water pump caseGasket water pump case
-
4369-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
4369-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
4369-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
49161E3-0645 BoltBolt
-
4940103-0600 WasherWasher
-
4369-65022-0 Key water pump impellerKey water pump impeller
-
4369-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
4369-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
5369-65231-0 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
5369-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
5369-65238-0 Liner chrome plated water pump case
CHROME PLATEDLiner chrome plated water pump case
CHROME PLATED -
5369-65239-0 Guide plate chrome plated water pump
CHROME PLATEDGuide plate chrome plated water pump
CHROME PLATED -
5369-65018-0 Gasket water pump caseGasket water pump case
-
5369-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
6369-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
6369-60111-0 Oil SealOil Seal
-
6345-65015-0 O-RingO-Ring
-
6369-65018-0 Gasket water pump caseGasket water pump case
-
6369-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
6369-60223-0 Oil SealOil Seal
-
6369-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
6369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
6332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
73H6-87122-0 Carburetor Rerair KitCarburetor Rerair Kit
-
73H6-03222-0 Gasket,float ChamberGasket,float Chamber
-
7922503-6412 Stud BoltStud Bolt
-
73H6-03231-0 FloatFloat
-
73H6-03232-0 Aym Pin, FloatAym Pin, Float
-
73H6-03240-0 Float ValveFloat Valve
-
73H6-03244-0 ClipClip
-
73H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
83JD-87130-0 Piston repair kit std
STDPiston repair kit std
STD -
83JD-87131-0 Piston repair kit (0.5 o/z )
OPTPiston repair kit (0.5 o/z )
OPT -
93R4-00001-3 Piston std 4/5/6a2/b mark 6
STDPiston std 4/5/6a2/b mark 6
STD -
93R4-00004-3 Piston 5 mm o/z 4/5/6b
OPTPiston 5 mm o/z 4/5/6b
OPT -
103AE-00021-0 Piston PinPiston Pin
-
113H6-00024-0 Clip, Piston PinClip, Piston Pin
