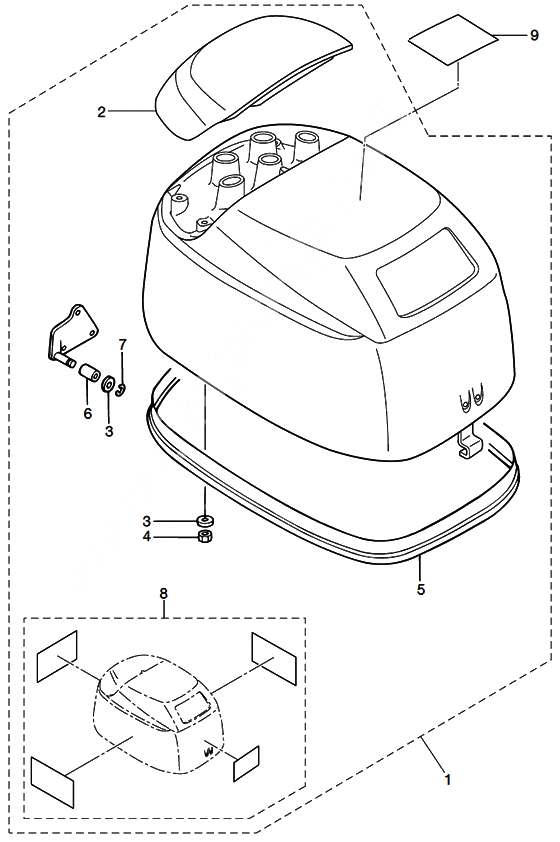

Top cowl для Tohatsu MFS30B - 2012 года выпуска`
-
№АртикулНазвание
-
13ACQ67645-4 Motor cover upper mfs25/30 (aqua marine blue)
TOHATSUMotor cover upper mfs25/30 (aqua marine blue)
TOHATSU -
3ACQ67645-5 Motor cover upper mfs25/30 (aqua marine blue)Motor cover upper mfs25/30 (aqua marine blue)
-
13AEQ67645-3 Motor cover upper nsf25/30 (aqua marine blue)
NISSANMotor cover upper nsf25/30 (aqua marine blue)
NISSAN -
23R0Q67521-2 Tilt handle (amb)Tilt handle (amb)
-
33C8-66308-0 New part
TILT HANDLE COVER STAYNew part
TILT HANDLE COVER STAY -
4930403-0600 Nylon NutNylon Nut
-
53AD-67501-0 Top cowl sealTop cowl seal
-
63R0-67517-0 Roller,6.1-14.7-14Roller,6.1-14.7-14
-
7945303-0500 E-RingE-Ring
-
83AC-87801-2 Decal set (f30b)
30PS / TOHATSUDecal set (f30b)
30PS / TOHATSU -
3AC-87801-3 Decal set (f30b)Decal set (f30b)
-
83AE-87801-0 Decal set nsf30b efi (aqua marine blue)
30PS / NISSANDecal set nsf30b efi (aqua marine blue)
30PS / NISSAN -
3AEN87801-0 Decal set nsf30b efi (aqua marine blue)Decal set nsf30b efi (aqua marine blue)
-
93R0-72180-0 Caution Lable ACaution Lable A
Все узлы модели:
- Bottom cowl
- Bracket (manual tilt)
- Bracket (ptt & gas assist)
- Component parts of remote control (electric parts)
- Component parts of remote control
- Cylinder & crank case
- Cylinder head & oil pump
- Drive shaft housing
- Electric parts
- Fuel system
- Fuel tank
- Gear case
- Intake manifold
- Magneto
- Optional parts & accessories
- Piston & crank shaft
- Power tilt
- Pulley & timing belt
- Recoil starter
- Remote control
- Shift & throttle
- Tiller handle
- • Top cowl
