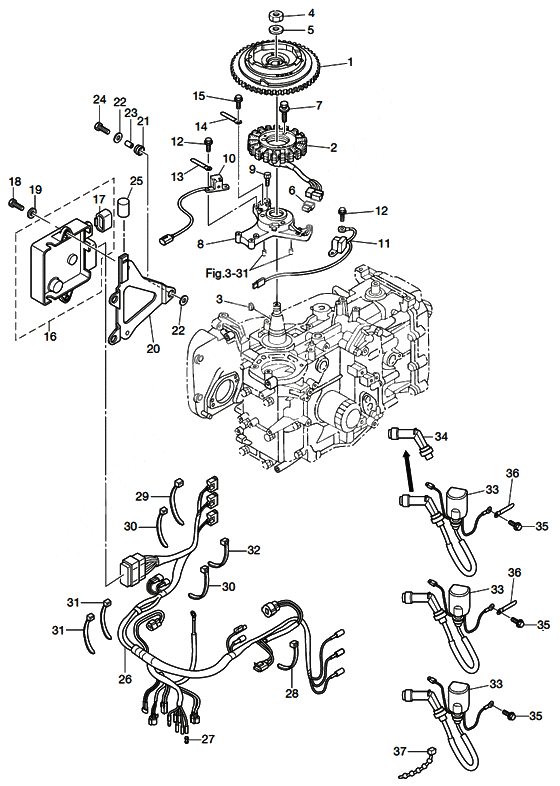

Magneto для Tohatsu MFS30B - 2012 года выпуска`
-
№АртикулНазвание
-
13AD-06101-0 Flywheel assy w/ring gear (zf 91)
ZF 91 / WITH RING GEARFlywheel assy w/ring gear (zf 91)
ZF 91 / WITH RING GEAR -
23AC-06123-0 AlternatorAlternator
-
3334-00131-0 Key Magneto
MAGNETOKey Magneto
MAGNETO -
4353-00132-0 Nut 18P1.5Nut 18P1.5
-
5353-00133-0 WasherWasher
-
63AC-01047-0 Plug (alternator coupler)
FOR MFPlug (alternator coupler)
FOR MF -
73AD-06864-0 Bolt 6-25 pre-coatedBolt 6-25 pre-coated
-
83AC-06008-1 Coil bracketCoil bracket
-
3AC-06008-0 Coil bracketCoil bracket
-
93AC-06864-0 BoltBolt
-
103AC-06071-0 Pulser coil #1Pulser coil #1
-
113AD-06071-0 Pulser coil #2Pulser coil #2
-
12910103-5512 BoltBolt
-
13309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
14398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
15910103-5612 BoltBolt
-
163AC-06401-3 Ecu f30b
30PS / EXCEPT EUEcu f30b
30PS / EXCEPT EU -
3AC-06401-4 Ecu f30bEcu f30b
-
163AH-06401-3 Ecu f30b (europe only)
30PS / FOR EUEcu f30b (europe only)
30PS / FOR EU -
173AC-03169-0 Plug ecu
ECUPlug ecu
ECU -
189101E3-0616 BoltBolt
-
910103-0616 BoltBolt
-
193R0-66308-0 WasherWasher
-
203AC-10204-0 Bracket ecuBracket ecu
-
213AC-06920-0 Rubber MountRubber Mount
-
223R0-66308-0 WasherWasher
-
233A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
249101E3-0620 BoltBolt
-
910103-0620 BoltBolt
-
253AC-06133-0 Protector
FOR MFProtector
FOR MF -
263AC-10205-0 Ecu cord mf & ef
FOR MF/EFEcu cord mf & ef
FOR MF/EF -
263AD-10205-0 Ecu cord ep & ept
FOR EP/EPTEcu cord ep & ept
FOR EP/EPT -
273A3-76037-0 Plug B Cable Terminal
EXCEPT P-TYPEPlug B Cable Terminal
EXCEPT P-TYPE -
283T5-84398-0 Band Lead Wire 104
FOR MF/EFBand Lead Wire 104
FOR MF/EF -
293T5-84398-0 Band Lead Wire 104
FOR EFT/EPTBand Lead Wire 104
FOR EFT/EPT -
30369-84398-0 Band Lead Wire,158
FOR MFBand Lead Wire,158
FOR MF -
31369-84398-0 Band Lead Wire,158
FOR ELECTRIC STARTER MODELBand Lead Wire,158
FOR ELECTRIC STARTER MODEL -
323AC-76091-0 Lead wire band-local purchase
FOR EP/EPTLead wire band-local purchase
FOR EP/EPT -
333AC-06469-0 Ignition CoilIgnition Coil
-
343AC-06999-0 Plug cap (with resistance)Plug cap (with resistance)
-
35910103-5620 BoltBolt
-
36309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
37336-76091-0 Band Battery CordBand Battery Cord
