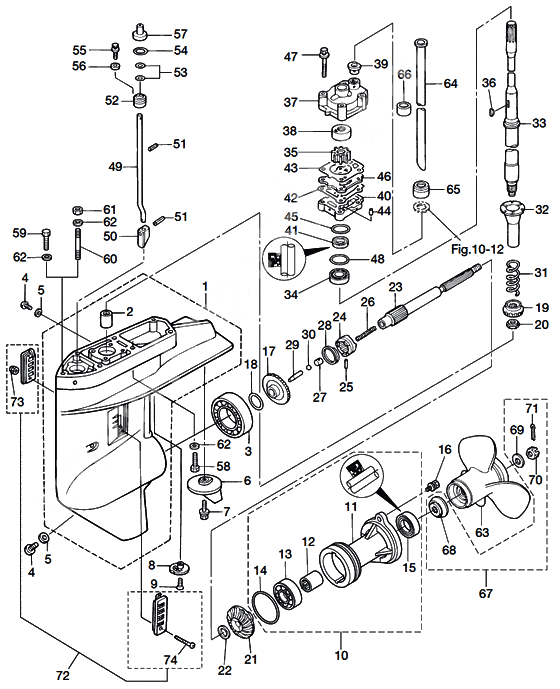

Gear case для Tohatsu MFS30B - 2012 года выпуска`
-
№АртикулНазвание
-
13AEQ60000-2 Gear caseGear case
-
23AE-60211-0 New partNew part
-
3346-60215-0 Подшипник (30205) 25x52x16,25Подшипник (30205) 25x52x16,25
-
4332-60005-2 Oil Plug Water Plug
WATER PLUGOil Plug Water Plug
WATER PLUG -
5332-60006-0 Gasket (8.1x15.1)
WATER PLUGGasket (8.1x15.1)
WATER PLUG -
63C8-60217-1 Trim TabTrim Tab
-
7910103-5620 BoltBolt
-
8369-60206-0 Water StrainerWater Strainer
-
99208E3-0620 ScrewScrew
-
10346Q87323-5 Prop shaft housing assyProp shaft housing assy
-
349Q60100-7 Prop shaft housing assyProp shaft housing assy
-
11346Q60101-6 Prop shaft housingProp shaft housing
-
346Q60101-8 Prop shaft housingProp shaft housing
-
12346-60102-0 Needle BearingNeedle Bearing
-
139601-0-6205 Подшипник 25x52x15Подшипник 25x52x15
-
14332-60103-0 O-RingO-Ring
-
15346-60111-0 Oil seal, 18-28-8Oil seal, 18-28-8
-
169101E3-5830 BoltBolt
-
910103-5830 BoltBolt
-
17346-64010-1 Bevel Gear ABevel Gear A
-
18369-64081-1 Shim, 26. 5-34. 8-0.1Shim, 26. 5-34. 8-0.1
-
18369-64082-1 Shim, 26. 5-34. 8-0.15Shim, 26. 5-34. 8-0.15
-
19346-64020-1 Bevel Gear BBevel Gear B
-
20346-64027-1 Nut, Bevel Gear BNut, Bevel Gear B
-
213AC-64030-0 Bevel Gear C
3 LINEBevel Gear C
3 LINE -
22346-64032-0 New partNew part
-
23346-64211-6 プロペラシャフトプロペラシャフト
-
243AC-64215-1 Clutch f25/30bClutch f25/30b
-
25346-64218-0 New partNew part
-
26332-64221-0 New partNew part
-
27350-64222-1 Spring holder clutchSpring holder clutch
-
28346-64219-0 New partNew part
-
293C8-64223-1 Push rod, clutchPush rod, clutch
-
30965002-0803 Steel ball, 3/8Steel ball, 3/8
-
31346-64327-0 Spring Drive ShaftSpring Drive Shaft
-
32346-64328-0 New partNew part
-
333R0-64301-0 Drive shaft s""
FOR TRANSOM SDrive shaft s""
FOR TRANSOM S -
33346-64302-5 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
33346-64303-5 Drive Shaft UL
FOR TRANSOM ULDrive Shaft UL
FOR TRANSOM UL -
34346-60213-0 Bearing, 32004Bearing, 32004
-
35345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
36332-65022-0 Key, pump impellerKey, pump impeller
-
373R0-65016-0 Upper Pump CaseUpper Pump Case
-
383R0-65011-0 Liner,Pump CaseLiner,Pump Case
-
393B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
40346-65017-2 Pump Case LowerPump Case Lower
-
41346-65013-0 Oil' seal, 17-30-9Oil' seal, 17-30-9
-
42348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
433R0-65018-0 Gasket,Pump CaseGasket,Pump Case
-
44334-65012-0 СтопорСтопор
-
45336-62415-0 O-RingO-Ring
-
463R0-65025-0 Guide Plate,Water PumpGuide Plate,Water Pump
-
479101E3-5652 Bolt & washerBolt & washer
-
48346-64081-0 Shim, 35-41.9-0.1Shim, 35-41.9-0.1
-
48346-64082-0 Shim, 35-41.9-0.15Shim, 35-41.9-0.15
-
48346-64083-0 Shim, 35-41.9-0.3Shim, 35-41.9-0.3
-
48346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
493R0-66012-0 Cam rod s""
FOR TRANSOM SCam rod s""
FOR TRANSOM S -
493R0-66013-0 Cam rod l""
FOR TRANSOM LCam rod l""
FOR TRANSOM L -
493R0-66014-0 Cam Rod UL""
FOR TRANSOM ULCam Rod UL""
FOR TRANSOM UL -
503AC-66011-1 Clutch CamClutch Cam
-
51951407-0312 Spring WasherSpring Washer
-
523R0-66031-0 Bushing,Cam RodBushing,Cam Rod
-
53332-66021-0 O-RingO-Ring
-
543C8-66032-0 O-RingO-Ring
-
559101E3-5612 Bolt & washerBolt & washer
-
563R0-66308-0 WasherWasher
-
57346-66037-0 Holder Cam Rod
FOR TRANSOM ULHolder Cam Rod
FOR TRANSOM UL -
589161E3-0840 Bolt bBolt b
-
599161E3-0845 Bolt
FOR TRANSOM LBolt
FOR TRANSOM L -
916113-0845 BoltBolt
-
609153E3-0830 Stud Bolt
FOR TRANSOM SStud Bolt
FOR TRANSOM S -
915313-0830 Stud BoltStud Bolt
-
619301E3-0800 Nut
FOR TRANSOM SNut
FOR TRANSOM S -
930103-0800 NutNut
-
629401E3-0800 Washer
GEAR CASEWasher
GEAR CASE -
940103-0800 WasherWasher
-
633R0B64521-0 Propeller ds 10 (9.7 dia x 10 pitch) black
TRANSOM L FOR JAPAN / STD 3X247X254Propeller ds 10 (9.7 dia x 10 pitch) black
TRANSOM L FOR JAPAN / STD 3X247X254 -
633R0B64518-0 Propeller ds 9 (9.8 dia x 9.3 pitch) black
TRANSOM UL / STD 3X247X229Propeller ds 9 (9.8 dia x 9.3 pitch) black
TRANSOM UL / STD 3X247X229 -
633R0B64523-0 Propeller ds 11 (9.8 dia x 11 pitch) black
TRANSOM S&L FOR EX / STD 3X249X279Propeller ds 11 (9.8 dia x 11 pitch) black
TRANSOM S&L FOR EX / STD 3X249X279 -
633R0B64525-0 Propeller ds 12 (9.8 dia x 12 pitch) black
TRANSOM S FOR JAPAN / STD 3X249X305Propeller ds 12 (9.8 dia x 12 pitch) black
TRANSOM S FOR JAPAN / STD 3X249X305 -
633R0B64527-0 Propeller ds 13 (9.6 dia x 13 pitch) black
TRANSOM S FOR EX / STD 3X244X330Propeller ds 13 (9.6 dia x 13 pitch) black
TRANSOM S FOR EX / STD 3X244X330 -
63346B64106-5 Prop 25&30 hp (10.2 dia. x 8.3 pitch)
OPT 3X260X210Prop 25&30 hp (10.2 dia. x 8.3 pitch)
OPT 3X260X210 -
63349B64529-1 Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)
OPT 3X252X360Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)
OPT 3X252X360 -
643R0-65100-0 Water pipe s""
FOR TRANSOM SWater pipe s""
FOR TRANSOM S -
643R0-65110-0 Water pipoe l""
FOR TRANSOM LWater pipoe l""
FOR TRANSOM L -
643R0-65120-0 Water PipeUL""
FOR TRANSOM ULWater PipeUL""
FOR TRANSOM UL -
653R0-65206-0 Upper Seal Rubber,Water PipeUpper Seal Rubber,Water Pipe
-
6698AM120-015 Rubber pipe (1ea.=1 meter)
FOR TRANSOM L & UL / 98AM1201000Rubber pipe (1ea.=1 meter)
FOR TRANSOM L & UL / 98AM1201000 -
98AM12100-0 Rubber pipe (1ea.=1 meter)Rubber pipe (1ea.=1 meter)
-
673R0-87326-0 Propeller Hardwear KitPropeller Hardwear Kit
-
68346-64231-5 New partNew part
-
69346-64124-5 WasherWasher
-
70346-64121-5 ナット、プロペラナット、プロペラ
-
71951503-0322 Split pin, 3-22Split pin, 3-22
-
723A1-60235-0 Water Strainer SetWater Strainer Set
-
73930403-0400 Nylon NutNylon Nut
-
749215E3-0430 ScrewScrew
-
921503-0430 ScrewScrew
