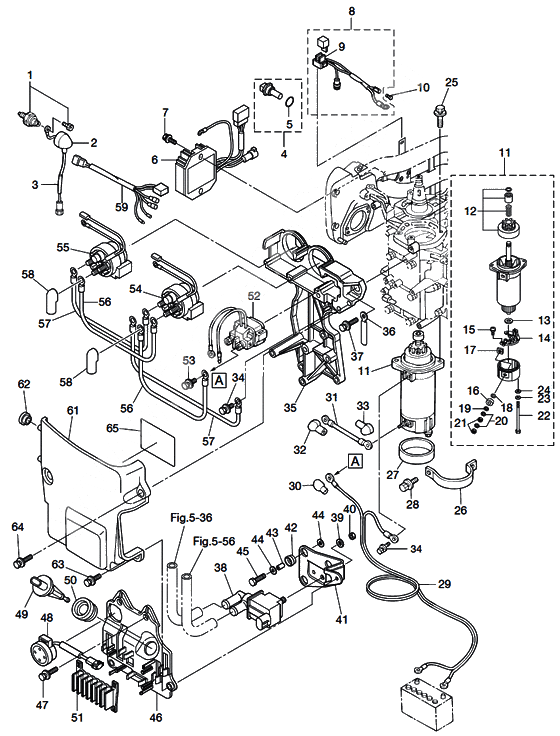

Electric parts для Tohatsu MFS30B - 2012 года выпуска`

№

Артикул

Название
1

3H6-07611-0 Switch, Oil Pressure

Switch, Oil Pressure

2 010 ₽
2

3H6-07612-0 Grommet, oil pressure switch

Grommet, oil pressure switch

280 ₽
3

3AC-07613-0 Lead cable pressure switch

Lead cable pressure switch

1 490 ₽
4

3Y9-72514-0 Water Temperature Sensor

Water Temperature Sensor

2 500 ₽
5

3G9-66136-0 O-Ring

O-Ring

330 ₽
6

3AC-76065-2 Rectifier (rs27-55) f25/30b
FOR ELECTRIC STARTER MODEL

Rectifier (rs27-55) f25/30b
FOR ELECTRIC STARTER MODEL

16 210 ₽
3AC-76065-0 Rectifier (rs27-55) f25/30b

Rectifier (rs27-55) f25/30b

16 850 ₽
7

910103-5625 Bolt
FOR ELECTRIC STARTER MODEL

Bolt
FOR ELECTRIC STARTER MODEL

170 ₽
8

3AC-76066-0 Fuse cable
FOR ELECTRIC STARTER MODEL

Fuse cable
FOR ELECTRIC STARTER MODEL

6 280 ₽
9

3T5-76247-0 Предохранитель
FOR ELECTRIC STARTER MODEL

Предохранитель
FOR ELECTRIC STARTER MODEL

360 ₽
10

3A3-76037-0 Plug B Cable Terminal
FOR ELECTRIC STARTER MODEL

Plug B Cable Terminal
FOR ELECTRIC STARTER MODEL

140 ₽
11

3C8-76010-1 Starter Motor Ass'y
FOR ELECTRIC STARTER MODEL

Starter Motor Ass'y
FOR ELECTRIC STARTER MODEL

52 860 ₽
12

3C8-76015-0 Pinion Ass'y
FOR ELECTRIC STARTER MODEL

Pinion Ass'y
FOR ELECTRIC STARTER MODEL

16 530 ₽
13

3C8-75015-0 Washer
FOR ELECTRIC STARTER MODEL

Washer
FOR ELECTRIC STARTER MODEL

460 ₽
14

3C8-75014-0 Brush Holder Ass'y
FOR ELECTRIC STARTER MODEL

Brush Holder Ass'y
FOR ELECTRIC STARTER MODEL

4 510 ₽
15

921521-6408 Stud Bolt
FOR ELECTRIC STARTER MODEL

Stud Bolt
FOR ELECTRIC STARTER MODEL

110 ₽
16

3C8-75016-0 Bushing
FOR ELECTRIC STARTER MODEL

Bushing
FOR ELECTRIC STARTER MODEL

290 ₽
17

3C8-75017-0 Bushing
FOR ELECTRIC STARTER MODEL

Bushing
FOR ELECTRIC STARTER MODEL

290 ₽
18

3C8-75018-0 O-Ring
FOR ELECTRIC STARTER MODEL

O-Ring
FOR ELECTRIC STARTER MODEL

210 ₽
19

940103-0600 Washer
FOR ELECTRIC STARTER MODEL

Washer
FOR ELECTRIC STARTER MODEL

110 ₽
20

941303-0600 New part
FOR ELECTRIC STARTER MODEL

New part
FOR ELECTRIC STARTER MODEL

120 ₽
21

930203-0600 Nut
FOR ELECTRIC STARTER MODEL

Nut
FOR ELECTRIC STARTER MODEL

110 ₽
22

3C8-75019-0 Bolt
FOR ELECTRIC STARTER MODEL

Bolt
FOR ELECTRIC STARTER MODEL

730 ₽
23

941321-0500 Spring Washer
FOR ELECTRIC STARTER MODEL

Spring Washer
FOR ELECTRIC STARTER MODEL

120 ₽
24

940221-0500 Washer
FOR ELECTRIC STARTER MODEL

Washer
FOR ELECTRIC STARTER MODEL

70 ₽
25

910103-5830 Bolt
FOR ELECTRIC STARTER MODEL

Bolt
FOR ELECTRIC STARTER MODEL

210 ₽
26

3R0-76009-0 Band,Starter Motor
FOR ELECTRIC STARTER MODEL

Band,Starter Motor
FOR ELECTRIC STARTER MODEL

660 ₽
27

3C8-76007-0 Rubber Starter Motor
FOR ELECTRIC STARTER MODEL

Rubber Starter Motor
FOR ELECTRIC STARTER MODEL

290 ₽
28

9101E3-5820 Bolt
FOR ELECTRIC STARTER MODEL

Bolt
FOR ELECTRIC STARTER MODEL

320 ₽
910103-5820 Bolt

Bolt

210 ₽
29

3AC-76120-0 Battery cable +/- (new style) 8.2 ft.
FOR ELECTRIC STARTER MODEL

Battery cable +/- (new style) 8.2 ft.
FOR ELECTRIC STARTER MODEL

7 280 ₽
30

3AA-76145-0 Terminal Cap
RED BATTERY CABLE / FOR ELECTRIC STARTER MODEL

Terminal Cap
RED BATTERY CABLE / FOR ELECTRIC STARTER MODEL

290 ₽
31

3R3-76141-0 STARTER CORD
FOR ELECTRIC STARTER MODEL

STARTER CORD
FOR ELECTRIC STARTER MODEL

2 600 ₽
32

3Y1-76145-0 Terminal Cap
RED STARTER SOLENOID / FOR ELECTRIC STARTER MODEL

Terminal Cap
RED STARTER SOLENOID / FOR ELECTRIC STARTER MODEL

290 ₽
33

3Y0-76145-0 Terminal Cap
RED STARTER MOTOR / FOR ELECTRIC STARTER MODEL

Terminal Cap
RED STARTER MOTOR / FOR ELECTRIC STARTER MODEL

290 ₽
34

910103-5612 Bolt
FOR ELECTRIC STARTER MODEL

Bolt
FOR ELECTRIC STARTER MODEL

140 ₽
35

3AC-06901-0 Electric bracket

Electric bracket

5 150 ₽
36

309-06972-0 Clamp,6.5-47.5P

Clamp,6.5-47.5P

190 ₽
37

910103-5625 Bolt

Bolt

170 ₽
38

3AC-10211-0 Isc valve

Isc valve

18 740 ₽
39

9401E3-0600 Washer

Washer

120 ₽
940113-0600 Washer

Washer

140 ₽
40

9301E3-0600 Nut

Nut

90 ₽
930103-0600 Nut

Nut

190 ₽
41

3AC-02501-0 Plate

Plate

1 670 ₽
42

3AC-06920-0 Rubber Mount

Rubber Mount

210 ₽
43

3A0-76079-0 Collar, 6.2-9-7.5

Collar, 6.2-9-7.5

600 ₽
44

3R0-66308-0 Washer

Washer

190 ₽
45

9101E3-0620 Bolt

Bolt

150 ₽
910103-0620 Bolt

Bolt

140 ₽
46

3AC-62004-0 Cord holder

Cord holder

2 700 ₽
47

910103-5625 Bolt

Bolt

170 ₽
48

3AC-76171-0 Over-heat Buzzer
FOR MF/EF

Over-heat Buzzer
FOR MF/EF

4 140 ₽
49

3AC-10215-0 Mat sensor

Mat sensor

2 670 ₽
50

3AC-04319-0 Grommet mat sensor

Grommet mat sensor

430 ₽
51

3AC-06135-0 Holder

Holder

650 ₽
52

3H8-76040-0 Starter Solenoid
FOR ELECTRIC STARTER MODEL

Starter Solenoid
FOR ELECTRIC STARTER MODEL

7 110 ₽
53

910103-5610 Bolt
FOR ELECTRIC STARTER MODEL

Bolt
FOR ELECTRIC STARTER MODEL

190 ₽
54

3AC-72580-0 Ptt solenoid switch inain
UP / FOR PTT MODEL

Ptt solenoid switch inain
UP / FOR PTT MODEL

8 120 ₽
55

3AC-72581-0 Ptt solenoid switch
DN / FOR PTT MODEL

Ptt solenoid switch
DN / FOR PTT MODEL

8 120 ₽
56

3C7-72583-0 Cord B Solenoid Switch (L=150)
RED (+) / FOR PTT MODEL

Cord B Solenoid Switch (L=150)
RED (+) / FOR PTT MODEL

410 ₽
57

3C8-72583-1 Cord B Solenoid Switch (L=130)
BLACK (-) / FOR PTT MODEL

Cord B Solenoid Switch (L=130)
BLACK (-) / FOR PTT MODEL

450 ₽
58

3Y1-76145-0 Terminal Cap
RED STARTER SOLENOID / FOR PTT MODEL

Terminal Cap
RED STARTER SOLENOID / FOR PTT MODEL

290 ₽
59

3AC-72569-0 Ptt extension cord
FOR PTT MODEL

Ptt extension cord
FOR PTT MODEL

9 260 ₽
61

3AC-06919-0 Cover electric bracket

Cover electric bracket

3 490 ₽
62

309-65032-0 Water Tube Grommet Lower

Water Tube Grommet Lower

180 ₽
63

9101E3-5616 Bolt & washer

Bolt & washer

320 ₽
64

9101E3-5620 Bolt & washer

Bolt & washer

360 ₽
65

3AC-72028-0 Wiring diagram decal

Wiring diagram decal

440 ₽
