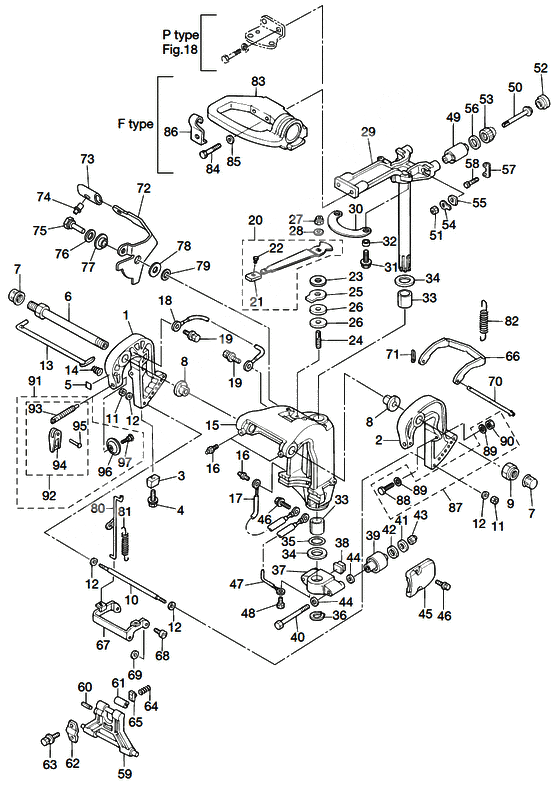

Bracket (manual tilt) для Tohatsu MFS30B - 2012 года выпуска`
-
№АртикулНазвание
-
13AEQ62112-2 Clamp bracket right
STARBOARD SIDEClamp bracket right
STARBOARD SIDE -
23AEQ62113-2 Clamp bracket left
PORT SIDEClamp bracket left
PORT SIDE -
33B7-60218-1 AnodeAnode
-
4910103-5630 BoltBolt
-
53H8-72049-0 Labe
FOR MF/EFLabe
FOR MF/EF -
63AC-62191-0 Swivel bracket boltSwivel bracket bolt
-
7346-62127-0 Cap,Bracket Bolt
FOR MF/EFCap,Bracket Bolt
FOR MF/EF -
8349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
9346-62124-1 Bracket nutBracket nut
-
10346-62117-1 Distance PieceDistance Piece
-
119301E3-0600 NutNut
-
930103-0600 NutNut
-
129401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
13345-62121-1 Thrust RodThrust Rod
-
14345-62122-2 Spring Thrust RodSpring Thrust Rod
-
153AEQ62310-2 Swivel bracketSwivel bracket
-
3AEQ62310-0 Swivel bracketSwivel bracket
-
16344-67177-1 Grease NippleGrease Nipple
-
173C8-62396-1 Ground Wire
SWIVEL BRACKET-MOUNT HOLDING PLATEGround Wire
SWIVEL BRACKET-MOUNT HOLDING PLATE -
18398-62396-1 Ground Wire
CLAMP BRACKET-SWIVEL BRACKETGround Wire
CLAMP BRACKET-SWIVEL BRACKET -
19910103-5612 BoltBolt
-
203AC-62450-0 Handle co-pilot
FOR MF/EFHandle co-pilot
FOR MF/EF -
213AC-63012-0 Grip
FOR MF/EFGrip
FOR MF/EF -
22346-66334-0 Stopper
FOR MF/EFStopper
FOR MF/EF -
233R3-62443-0 Washer
FOR MF/EFWasher
FOR MF/EF -
243R3-62445-0 Bolt
FOR MF/EFBolt
FOR MF/EF -
253R3-62448-1 Washer, Co Pilot
FOR MF/EFWasher, Co Pilot
FOR MF/EF -
263R3-62449-0 Disk, Co Pilot
FOR MF/EFDisk, Co Pilot
FOR MF/EF -
27930403-0800 Nylon Nut
FOR MF/EFNylon Nut
FOR MF/EF -
289401E3-0800 Washer
FOR MF/EFWasher
FOR MF/EF -
940103-0800 WasherWasher
-
293R0Q62010-1 Steering shaft assySteering shaft assy
-
3AHQ62010-0 Steering shaft assySteering shaft assy
-
303AC-62447-0 Plate co-pilot
FOR MF/EFPlate co-pilot
FOR MF/EF -
319101E3-5616 Bolt & washer
FOR MF/EFBolt & washer
FOR MF/EF -
323AC-63619-0 Collar
FOR MF/EFCollar
FOR MF/EF -
33353-62417-0 BushingBushing
-
34353-62423-1 Thrust PlateThrust Plate
-
35353-62415-0 O-RingO-Ring
-
36945103-2800 C-RingC-Ring
-
945127-2800 C-RingC-Ring
-
373AEQ61411-1 Mount bracketMount bracket
-
3AEQ61411-0 Mount bracketMount bracket
-
383C8-61336-0 Damper RubberDamper Rubber
-
393C8-61302-0 Lower Mount RubberLower Mount Rubber
-
403R0-61321-0 Bolt,Lower Mount RubberBolt,Lower Mount Rubber
-
41353-61334-0 WasherWasher
-
423C7-61338-0 Damper RubberDamper Rubber
-
433R0-61324-0 Nylon Nut,12-P1.25Nylon Nut,12-P1.25
-
449402E3-1200 WasherWasher
-
453R0Q61342-0 Mount holding plate (lower)
RUBBER MOUNT CAPMount holding plate (lower)
RUBBER MOUNT CAP -
469101E3-5620 Bolt & washerBolt & washer
-
473A3-62396-1 New part
MOUNT HOLDING PLATE-MOUNT BRACKETNew part
MOUNT HOLDING PLATE-MOUNT BRACKET -
48910103-5612 BoltBolt
-
493R0-61301-1 Upper Mount RobberUpper Mount Robber
-
503R0-61307-0 Bolt,Mount RubberBolt,Mount Rubber
-
51930103-1000 NutNut
-
523R0-61333-0 Upper Damper Rubber AUpper Damper Rubber A
-
533R0-61337-1 Upper Damper Rubber BUpper Damper Rubber B
-
543R0-61323-0 Rock Plate,Mount RubberRock Plate,Mount Rubber
-
55345-61322-2 Washer Rubber Mount BWasher Rubber Mount B
-
563R0-61335-0 Upper Rock PlateUpper Rock Plate
-
573R0-61312-1 Retainer,Mount RubberRetainer,Mount Rubber
-
589101E3-0620 BoltBolt
-
910103-0620 BoltBolt
-
59349Q62993-2 Tilt StopperTilt Stopper
-
349Q62993-1 Tilt StopperTilt Stopper
-
60951403-0640 Spring WasherSpring Washer
-
61346-62437-0 BushingBushing
-
623AC-62439-0 Setting plate tilt stopperSetting plate tilt stopper
-
633AC-63201-0 BoltBolt
-
643C8-62421-1 Spring Friction PlateSpring Friction Plate
-
65346-62438-0 Set PieceSet Piece
-
66346-66322-0 Reverse LockReverse Lock
-
67349-66313-0 Arm,Reverse LockArm,Reverse Lock
-
68336-66319-1 Shaft Leverse Lock LinkShaft Leverse Lock Link
-
693R0-66308-0 WasherWasher
-
70346-66321-0 Rod,Reverse LockRod,Reverse Lock
-
71951503-0212 Split PinSplit Pin
-
723P0-66311-0 Reverse lock leverReverse lock lever
-
733AL-66333-0 Lock lever gripLock lever grip
-
74346-66334-0 StopperStopper
-
753AL-05254-0 Shoulder boltShoulder bolt
-
76940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
773AL-05212-0 BushingBushing
-
783AA-83719-0 WasherWasher
-
793R0-66308-0 WasherWasher
-
80349-66312-0 Link, Reverse LockLink, Reverse Lock
-
81346-66323-1 Spring,Reverse Lock LeverSpring,Reverse Lock Lever
-
823R0-66332-0 Spring (L) Reverse Lock
FOR TRANSOM LSpring (L) Reverse Lock
FOR TRANSOM L -
82346-66331-0 Spring (S) Reverse Lock
FOR TRANSOM SSpring (S) Reverse Lock
FOR TRANSOM S -
833R3Q62001-0 Steering bracket (amb)
FOR MF/EFSteering bracket (amb)
FOR MF/EF -
843R3-62094-2 Bolt
FOR MF/EFBolt
FOR MF/EF -
859401E3-1000 Washer
FOR MF/EFWasher
FOR MF/EF -
863R0-63628-0 Clamp,throttle Cable
FOR MF/EFClamp,throttle Cable
FOR MF/EF -
873AC-72120-0 Rigging bolt setRigging bolt set
-
889161E3-0885 BoltBolt
-
899401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
909301E3-0800 NutNut
-
930103-0800 NutNut
-
913AAQ62105-0 Clamp screw kit (w/pad & bolt)Clamp screw kit (w/pad & bolt)
-
923AAQ62108-0 Clamp screw assy (no pad)Clamp screw assy (no pad)
-
933AA-62106-0 Clamp screwClamp screw
-
94332Q62102-1 Handle clamp screwHandle clamp screw
-
953C8-62104-2 RivetRivet
-
3C8-62104-1 RivetRivet
-
96332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
973C8-62107-0 Shoulder boltShoulder bolt
