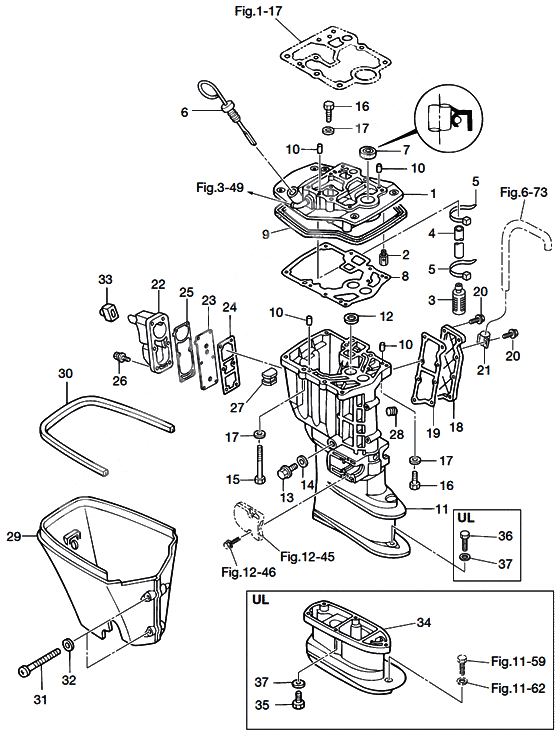

Drive shaft housing для Tohatsu MFS25B - 2012 года выпуска`
-
№АртикулНазвание
-
13ACQ01300-0 Engine base
NIPPLEEngine base
NIPPLE -
23V2-07620-0 Pluger Ass'yPluger Ass'y
-
33R3-07710-1 Oil strainerOil strainer
-
498AH-9-5220 Hose
ENGINE BASE-OIL STRAINER / 98AH-951000Hose
ENGINE BASE-OIL STRAINER / 98AH-951000 -
98AH-951000 HoseHose
-
5369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
63AC-07421-0 Oil level gaugeOil level gauge
-
7346-01215-0 New partNew part
-
83R0-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
93R0-67116-0 Seal Rubber,Engine BaseSeal Rubber,Engine Base
-
10345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
113AEQ61191-1 Drive shaft housing s
FOR TRANSOM SDrive shaft housing s
FOR TRANSOM S -
3AEQ61191-0 Drive shaft housing sDrive shaft housing s
-
113AEQ61192-1 Drive shaft housing l
FOR TRANSOM L & ULDrive shaft housing l
FOR TRANSOM L & UL -
3AEQ61192-2 Drive shaft housing lDrive shaft housing l
-
123R0-65207-0 Plate,Water PipePlate,Water Pipe
-
133R3-07405-1 Bolt, DrainBolt, Drain
-
143R3-07406-0 WasherWasher
-
153B7-61017-3 Bolt 8-105Bolt 8-105
-
163R0-61017-1 BoltBolt
-
3R0-61017-0 BoltBolt
-
179401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
183R0Q61028-0 Drain coverDrain cover
-
193R0-61029-0 Gascket,Drain CoverGascket,Drain Cover
-
209101E3-5618 BoltBolt
-
910103-5618 BoltBolt
-
21345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
223ACQ61208-0 Cover idle exhaust portCover idle exhaust port
-
233AC-62114-0 PlatePlate
-
243R0-61207-0 Gasket,Idole Port
INSIDEGasket,Idole Port
INSIDE -
253AC-61220-1 Gasket idle exhaust port cover
OUTSIDEGasket idle exhaust port cover
OUTSIDE -
269101E3-5620 Bolt & washerBolt & washer
-
273AC-61182-0 GrommetGrommet
-
283H6-07257-0 Exhaust PlugExhaust Plug
-
293R0Q61210-0 ApronApron
-
303R0-61213-0 Seal Rubber,ApronSeal Rubber,Apron
-
313AC-61217-0 Tapping ScrewTapping Screw
-
329401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
333R0-61212-0 Grommet,ApronGrommet,Apron
-
34346Q61110-5 Extension housing ul
FOR TRANSOM ULExtension housing ul
FOR TRANSOM UL -
359161E3-0835 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
369161E3-0845 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
916113-0845 BoltBolt
-
373P0-66233-0 New part
FOR TRANSOM ULNew part
FOR TRANSOM UL
