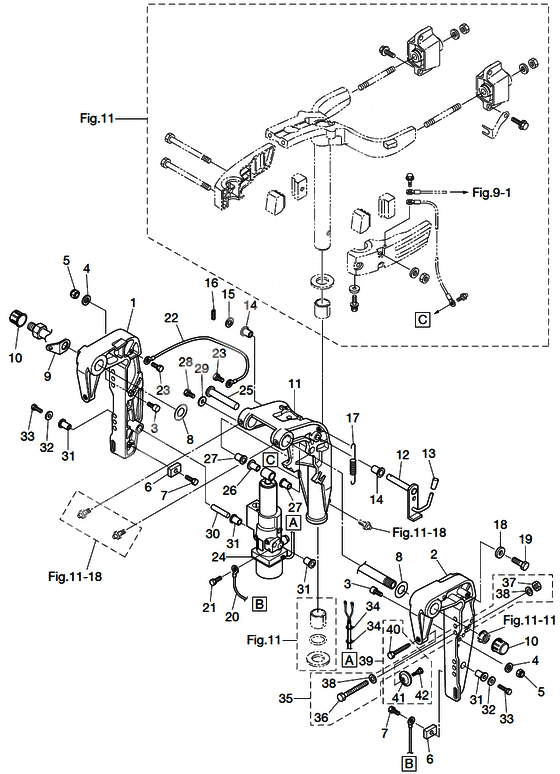

Bracket (ptt) для Tohatsu MFS20C - 2012 года выпуска`
-
№АртикулНазвание
-
13Z0Q77211-2 Clamp bracket (ptt right) starboard
STARBOARD SIDEClamp bracket (ptt right) starboard
STARBOARD SIDE -
23Z0Q77212-0 Clamp bracket (ptt left) port
PORT SIDEClamp bracket (ptt left) port
PORT SIDE -
33Z0-77115-0 Trim lock pinTrim lock pin
-
43P0-66233-0 New partNew part
-
53V5-62442-0 Nylon Nut(2T)M8 P1.25Nylon Nut(2T)M8 P1.25
-
63H6-60218-0 AnodeAnode
-
7910103-5616 BoltBolt
-
83AA-62116-0 Washer
NYLONWasher
NYLON -
93AA-62114-1 PlatePlate
-
3AA-62114-0 PlatePlate
-
10346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
113BAQ77208-0 Swivel bracket (ptt)Swivel bracket (ptt)
-
123Z0-62476-2 Tilt StopperTilt Stopper
-
3Z0-62476-1 Tilt StopperTilt Stopper
-
13369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
14353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
159401E3-1000 WasherWasher
-
16951403-3516 New partNew part
-
173R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
18345-05122-1 Washer rachetWasher rachet
-
199101E3-0616 BoltBolt
-
910103-0616 BoltBolt
-
20398-62396-1 Ground Wire
ANODE-PT ASSYGround Wire
ANODE-PT ASSY -
21910103-5612 BoltBolt
-
22398-62396-1 Ground Wire
CLAMP BRACKET-SWIVEL BRACKETGround Wire
CLAMP BRACKET-SWIVEL BRACKET -
23910103-5612 BoltBolt
-
243BAQ77151-1 Power tilt assy
SEE FIG. 13Power tilt assy
SEE FIG. 13 -
253R0-77071-1 Cylinder pin upperCylinder pin upper
-
3KY-77071-0 Cylinder pin upperCylinder pin upper
-
263Z0-77076-0 Bushing 13-16-31Bushing 13-16-31
-
273R0-77076-0 BushingBushing
-
289101E3-0612 BoltBolt
-
910103-0612 BoltBolt
-
29345-05122-1 Washer rachetWasher rachet
-
303Z0-77101-1 Cylinder pin (lower)Cylinder pin (lower)
-
313Z0-77076-0 Bushing 13-16-31Bushing 13-16-31
-
32307-62116-1 WasherWasher
-
339101E3-0820 BoltBolt
-
910103-0820 BoltBolt
-
343Z0-84398-0 Band lead wire 203-local purchaseBand lead wire 203-local purchase
-
353BJ-72120-0 Rigging bolt set
FOR EFT/EPTRigging bolt set
FOR EFT/EPT -
369101E3-0885 BoltBolt
-
9161E3-0885 BoltBolt
-
379301E3-0800 NutNut
-
930103-0800 NutNut
-
389401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
393C8-77217-0 Clamp screw kitClamp screw kit
-
403C8-77216-0 Clamp screw (ptt)Clamp screw (ptt)
-
41332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
423C8-62107-0 Shoulder boltShoulder bolt
