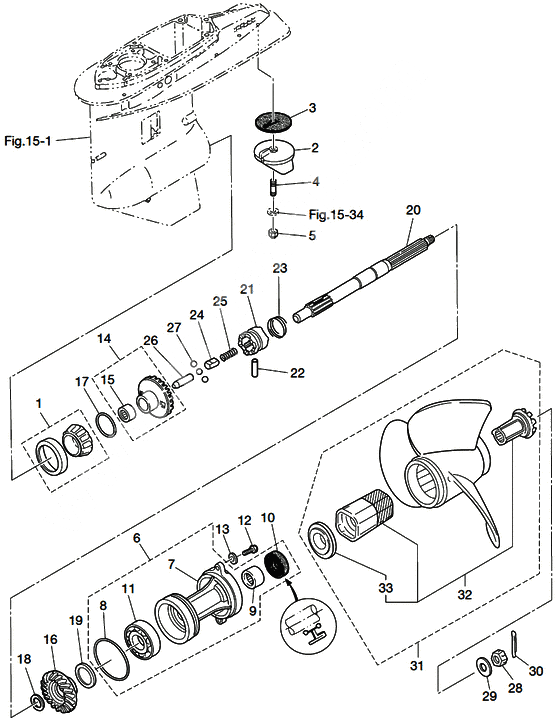

Gear case (propeller shaft) для Tohatsu MD75C2 - 2012 года выпуска`

№

Артикул

Название
1

3C7-60215-0 Bearing, 30209

Bearing, 30209

3 820 ₽
2

3B7-60217-1 Trim Tab

Trim Tab

1 670 ₽
3

3B7-60219-0 Packing, Trim Tab

Packing, Trim Tab

540 ₽
4

915303-0825 Stud Bolt

Stud Bolt

280 ₽
5

930403-0800 Nylon Nut

Nylon Nut

280 ₽
6

3B7Q87323-1 Propeller shaft housing assy (amb)

Propeller shaft housing assy (amb)

14 840 ₽
7

3B7Q60101-1 Housing propeller shaft (amb)

Housing propeller shaft (amb)

14 920 ₽
8

3B7-60103-0 O-Ring

O-Ring

1 310 ₽
9

3B7-60211-0 Needle Bearing, 30-40-30

Needle Bearing, 30-40-30

3 690 ₽
10

3B7-60111-0 Oil seal, 30-50-12

Oil seal, 30-50-12

3 290 ₽
11

9601-0-6208 Ball bearing, 6208

Ball bearing, 6208

1 950 ₽
12

3C7-60108-2 Bolt 8-30 precoated

Bolt 8-30 precoated

1 230 ₽
13

9402E3-0800 Washer

Washer

170 ₽
940203-0800 Washer

Washer

110 ₽
14

3FW-64010-0 Bevel gear assy (A)

Bevel gear assy (A)

26 290 ₽
15

3B7-64011-0 Needle Bearing, 25-32-26

Needle Bearing, 25-32-26

2 500 ₽
16

3Y7-64093-0 Bevel Gear C

Bevel Gear C

18 570 ₽
17

3B7-64015-0 Shim, 47-57-0.15

Shim, 47-57-0.15

140 ₽
17

3B7-64016-0 Shim, 47-57-0.1

Shim, 47-57-0.1

210 ₽
18

3B7-64032-0 Washer, t=3.2

Washer, t=3.2

1 150 ₽
18

3B7-64034-0 Washer, t=3.0

Washer, t=3.0

1 150 ₽
18

3B7-64035-0 Washer, t=3.0

Washer, t=3.0

1 150 ₽
19

3B7-64036-0 Shim , 42-50-0.15

Shim , 42-50-0.15

140 ₽
19

3B7-64037-0 Shim, 42-50-0.1

Shim, 42-50-0.1

140 ₽
20

3B7-64211-0 Propeller Shaft

Propeller Shaft

31 090 ₽
21

3T1-64215-2 Clutch

Clutch

20 960 ₽
22

3B7-64218-0 Clutch Pin

Clutch Pin

280 ₽
23

3B7-64219-1 Snap, Clutch Pin

Snap, Clutch Pin

650 ₽
24

3T1-64222-0 Spring retainer l=30,5

Spring retainer l=30,5

1 200 ₽
25

346-64221-0 Spring Clutch

Spring Clutch

170 ₽
26

3T1-64223-0 Push Rod

Push Rod

1 240 ₽
27

3T1-64224-0 Ball

Ball

150 ₽
28

353-64121-0 Nut Propeller

Nut Propeller

1 150 ₽
29

345-64124-0 Washer

Washer

600 ₽
30

951503-0325 Split Pin

Split Pin

210 ₽
31

3N4B64523-1 Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)
OPT 3x355x279

Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)
OPT 3x355x279

27 710 ₽
31

3N4B64527-1 Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)
OPT 3x355x330

Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)
OPT 3x355x330

28 980 ₽
31

3N4B64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
90PS 75PS / OPT 3x349x381

Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
90PS 75PS / OPT 3x349x381

28 980 ₽
31

3N4B64534-1 Prop m-16 70c 90a 115a2 120a2 140a2 (13.25 x 16 pitch)
OPT 3x336x406

Prop m-16 70c 90a 115a2 120a2 140a2 (13.25 x 16 pitch)
OPT 3x336x406

27 710 ₽
31

3N4B64536-1 Prop m-17 70c 90a 115a2 120a2 140a2 (13.25 x 17 pitch)
OPT 3x336x432

Prop m-17 70c 90a 115a2 120a2 140a2 (13.25 x 17 pitch)
OPT 3x336x432

27 710 ₽
31

3N4B64541-1 Prop m-19 70c 90a 115a2 120a2 140a2 (13.0 x 19 pitch)
OPT 3x330x483

Prop m-19 70c 90a 115a2 120a2 140a2 (13.0 x 19 pitch)
OPT 3x330x483

27 710 ₽
31

3N4B64545-1 Prop m-21 70c 90a 115a2 120a2 140a2 (12.75 x 21 pitch)
OPT 3x324x533

Prop m-21 70c 90a 115a2 120a2 140a2 (12.75 x 21 pitch)
OPT 3x324x533

27 710 ₽
32

3Y9-64238-0 Propeller Hub Kit

Propeller Hub Kit

19 030 ₽
33

3E0-64235-0 Foward Thrust Washer

Foward Thrust Washer

6 940 ₽
