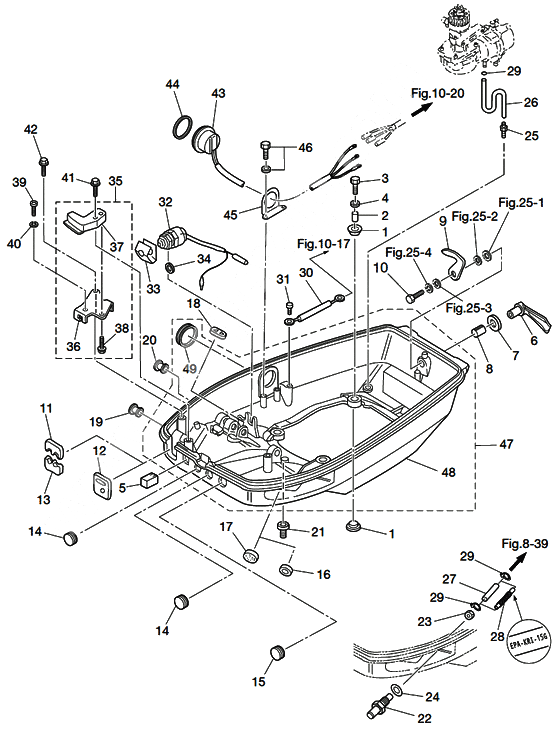

Bottom cowl для Tohatsu MD40B2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    346-67113-0 Mount Rubber
    Mount Rubber
  • 2
    346-67114-1 Spacer
    Spacer
  • 346-67114-0 Spacer
    Spacer
  • 3
    9101E3-0630 Bolt
    Bolt
  • 4
    346-67115-0 Washer
    Washer
  • 5
    3T5-67150-0 Cap, Choke Knob
    Cap, Choke Knob
  • 6
    3C8Q67141-0 Hook lever (amb)
    Hook lever (amb)
  • 7
    338-67147-0 New part
    New part
  • 8
    369-67105-0 Bushing
    Bushing
  • 9
    3C8-67142-1 Cover Hook
    Cover Hook
  • 10
    9101F4-0612 Bolt
    Bolt
  • 910114-0612 Bolt
    Bolt
  • 11
    3C8-83732-0 Grommet Remote Control Cable
    UPPER / FOR P TYPE
    Grommet Remote Control Cable
    UPPER / FOR P TYPE
  • 12
    3T5-67162-0 Grommet, Battery Cord
    FOR F TYPE
    Grommet, Battery Cord
    FOR F TYPE
  • 13
    3C8-76116-1 Grommet Cord
    LOWER / FOR P TYPE
    Grommet Cord
    LOWER / FOR P TYPE
  • 14
    345-67117-0 New part
    FOR PTT MODEL
    New part
    FOR PTT MODEL
  • 15
    345-76092-0 Grommet
    Grommet
  • 16
    338-67163-0 Supporting Rubber Fuel Pipe
    PTT CORD / FOR PTT MODEL
    Supporting Rubber Fuel Pipe
    PTT CORD / FOR PTT MODEL
  • 17
    345-67117-0 New part
    FOR MANUAL & GAS ASSIST MODEL
    New part
    FOR MANUAL & GAS ASSIST MODEL
  • 18
    3C8-63621-0 Grommet throttle wire
    THROTTLE WIRE / FOR F TYPE
    Grommet throttle wire
    THROTTLE WIRE / FOR F TYPE
  • 18
    3C8-63624-0 Grommet Throttle Hole
    THROTTLE WIRE HOLE / FOR P TYPE
    Grommet Throttle Hole
    THROTTLE WIRE HOLE / FOR P TYPE
  • 19
    3B2-67187-0 Grommet Throttle Shaft
    THROTTLE SHAFT HOLE / FOR P TYPE
    Grommet Throttle Shaft
    THROTTLE SHAFT HOLE / FOR P TYPE
  • 20
    3B7-01046-0 Plug
    Plug
  • 21
    345-66226-0 Grommet, 17-3
    SHIFT ROD
    Grommet, 17-3
    SHIFT ROD
  • 22
    3B2-70260-1 New part
    New part
  • 23
    332-70261-0 Nut Fuel Connector B
    Nut Fuel Connector B
  • 24
    336-70112-0 Gasket 10.2-16-0.5
    Gasket 10.2-16-0.5
  • 25
    3T1-01138-0 Water Nipple
    Water Nipple
  • 26
    98AB-5-0250 Fuel pipe 5mm (1 ea.=1 meter)
    AIR COMP-WATER NIPPLE / 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    AIR COMP-WATER NIPPLE / 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 27
    98AB-5-0260 Fuel pipe 5mm (1 ea.=1 meter)
    F/CONNECTOR-FUEL FILTER / STD 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    F/CONNECTOR-FUEL FILTER / STD 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 28
    3GF-02165-0 Fuel hose w/protector
    LOW PERMEATION PARTS / EPA-KRI-15G USA
    Fuel hose w/protector
    LOW PERMEATION PARTS / EPA-KRI-15G USA
  • 29
    338-02215-0 Clip
    Clip
  • 30
    3N4-76142-1 Grounding wire
    CYLINDER BLOCK -BOTTOM COWL
    Grounding wire
    CYLINDER BLOCK -BOTTOM COWL
  • 3N4-76142-0 Grounding wire
    Grounding wire
  • 31
    910103-6612 Bolt
    Bolt
  • 32
    398-76080-0 Neutral Switch Ass'y
    FOR F TYPE
    Neutral Switch Ass'y
    FOR F TYPE
  • 33
    398-76083-0 Actuator Neutral Switch
    FOR F TYPE
    Actuator Neutral Switch
    FOR F TYPE
  • 34
    3B7-63731-0 Washer
    FOR F TYPE
    Washer
    FOR F TYPE
  • 35
    3C8Q83737-0 Cable clip bracket assy
    FOR P TYPE
    Cable clip bracket assy
    FOR P TYPE
  • 36
    3Z5-83738-0 Bracket clutch cable clip
    FOR P TYPE
    Bracket clutch cable clip
    FOR P TYPE
  • 37
    3C8Q76118-0 Clamp
    FOR P TYPE
    Clamp
    FOR P TYPE
  • 38
    910103-5612 Bolt
    FOR P TYPE
    Bolt
    FOR P TYPE
  • 39
    3C8-83821-0 Stud Bolt
    FOR P TYPE
    Stud Bolt
    FOR P TYPE
  • 40
    941303-0400 Spring Washer
    FOR P TYPE
    Spring Washer
    FOR P TYPE
  • 41
    910103-5625 Bolt
    Bolt
  • 42
    910103-5616 Bolt
    FOR P TYPE
    Bolt
    FOR P TYPE
  • 43
    3GF-72615-0 Switch b assy ptt m40/50b2
    FOR EPTO MODEL
    Switch b assy ptt m40/50b2
    FOR EPTO MODEL
  • 44
    3F3-72616-1 Gasket Ptt Switch Ass'y
    FOR EPTO MODEL
    Gasket Ptt Switch Ass'y
    FOR EPTO MODEL
  • 45
    3GF-72617-0 Bracket ptt switch d40/50b2
    FOR EPTO MODEL
    Bracket ptt switch d40/50b2
    FOR EPTO MODEL
  • 46
    910103-6614 Bolt
    FOR EPTO MODEL
    Bolt
    FOR EPTO MODEL
  • 47
    3C8Q67110-0 Lower motor cover w/grommet
    EXCEPT EPTO MODEL
    Lower motor cover w/grommet
    EXCEPT EPTO MODEL
  • 48
    3C8Q67100-1 Lower motor cover d40/50b2 (amb)
    FOR EPTO MODEL
    Lower motor cover d40/50b2 (amb)
    FOR EPTO MODEL
  • 49
    3F3-72618-0 Grommet Power Trim & Tilt Switch
    EXCEPT EPTO MODEL
    Grommet Power Trim & Tilt Switch
    EXCEPT EPTO MODEL
