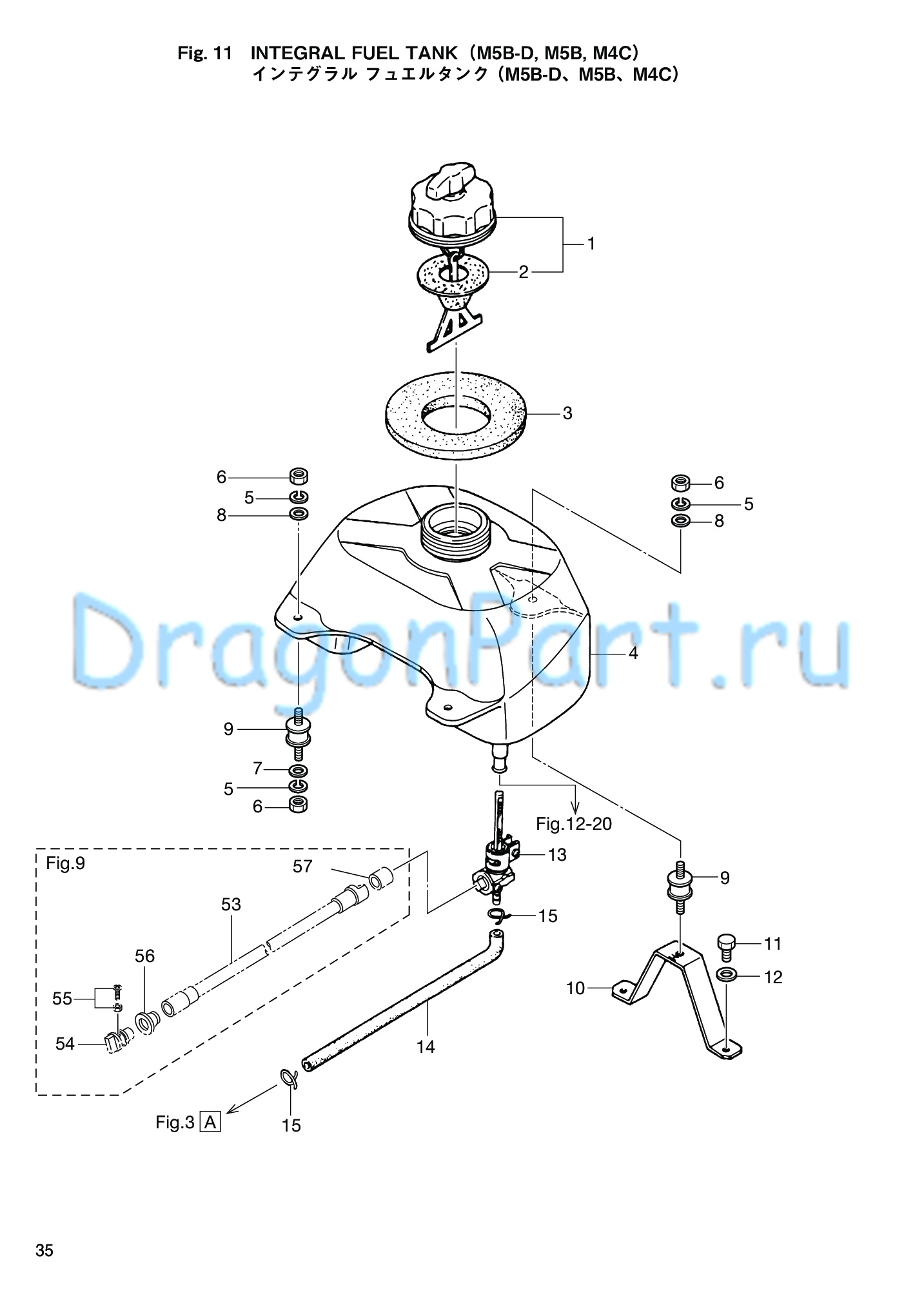

INTEGRAL FUEL TANK (M5B-D, M5B, M4C) для Tohatsu M5B - 2012 года выпуска`
-
№АртикулНазвание
-
1393-70020-6 Fuel Tank Cap Ass'yFuel Tank Cap Ass'y
-
23D6-70021-0 * Tank Filler Cap Gasket* Tank Filler Cap Gasket
-
3369-70036-2 Fuel Tank SealFuel Tank Seal
-
4369-70316-2 Fuel TankFuel Tank
-
5941303-0600 Spring WasherSpring Washer
-
6930103-0600 NutNut
-
73C8-66308-0 Washer 6-16-1.5Washer 6-16-1.5
-
8345-05122-1 Washer 6.5-23-1.5Washer 6.5-23-1.5
-
9369-70057-0 Fuel Tank Mount
STDFuel Tank Mount
STD -
93F9-70057-0 Fuel Tank Mount
OPT Large SizeFuel Tank Mount
OPT Large Size -
10369-70312-1 Fuel Tank StayFuel Tank Stay
-
119101F4-0616 BoltBolt
-
12940103-0600 WasherWasher
-
13369-70311-0 Fuel Cock Ass'y
for M5B, M4CFuel Cock Ass'y
for M5B, M4C -
14369-70315-0 Fuel Hose
for M5B, M4CFuel Hose
for M5B, M4C -
15338-02215-0 Clip ?10
for M5B, M4CClip ?10
for M5B, M4C
