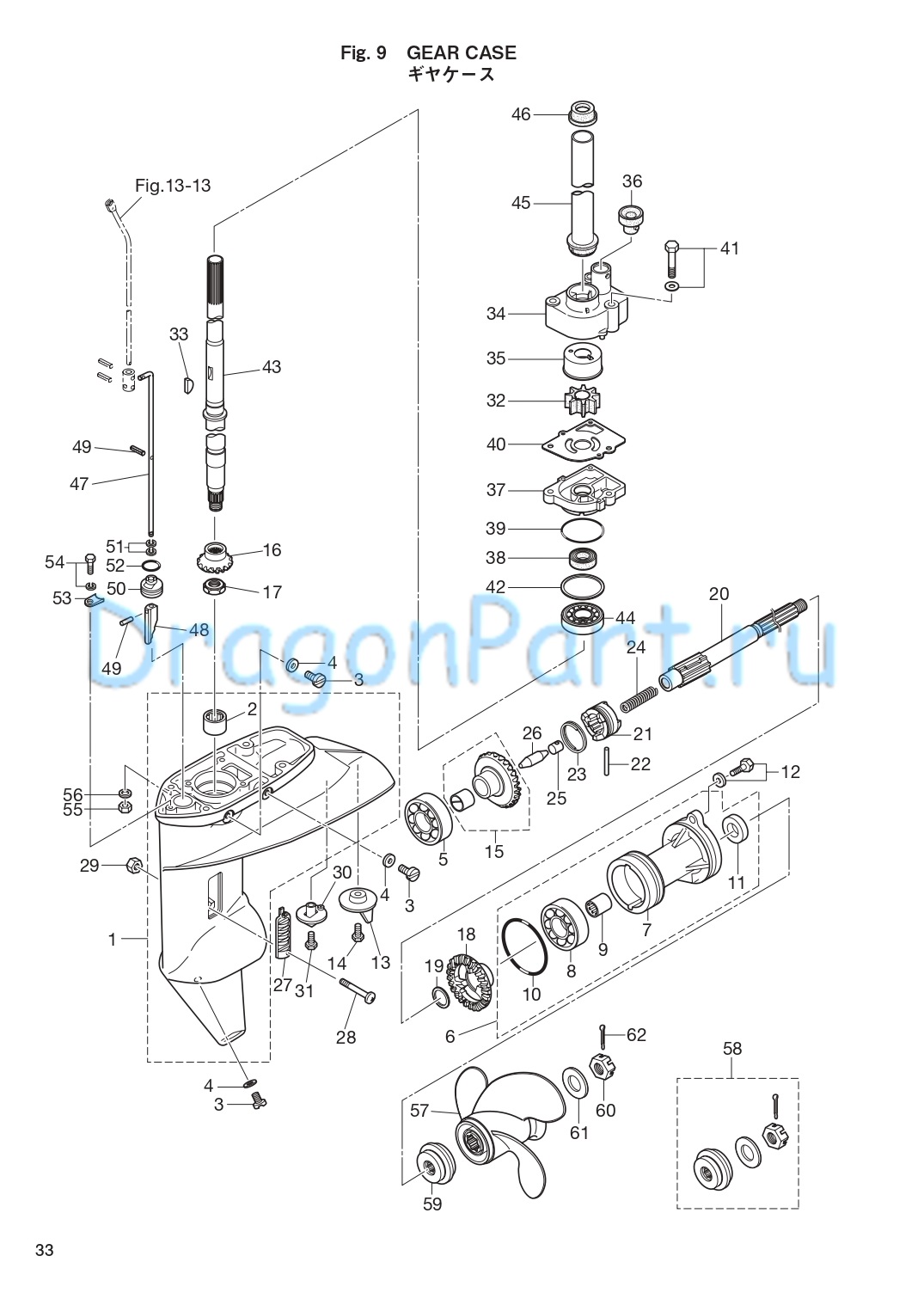

GEAR CASE для Tohatsu M15D2 - 2012 года выпуска`
-
№АртикулНазвание
-
13V9Q60000-0 Gear Case Ass'yGear Case Ass'y
-
2350-60211-0 * Roller Bearing 16-24-20* Roller Bearing 16-24-20
-
3332-60005-2 PlugPlug
-
4332-60006-0 Gasket 8.1-15-1Gasket 8.1-15-1
-
59601-0-6205 Ball Bearing 6205Ball Bearing 6205
-
6398Q60100-1 Propeller Shaft Housing Ass'yPropeller Shaft Housing Ass'y
-
7362Q60101-1 * Propeller Shaft Housing* Propeller Shaft Housing
-
89601-0-6205 * Ball Bearing 6205* Ball Bearing 6205
-
9362-60211-0 * Roller Bearing 17-24-20* Roller Bearing 17-24-20
-
10121-32071-0 * O-Ring 2.4-59.6* O-Ring 2.4-59.6
-
11346-65013-0 * Oil Seal 17-30-9* Oil Seal 17-30-9
-
129101E3-5625 BoltBolt
-
133V1-60217-0 Trim TabTrim Tab
-
149101E3-5620 BoltBolt
-
15350-64010-0 Bevel Gear Ass'y (A)Bevel Gear Ass'y (A)
-
16350-64020-0 Bevel Gear BBevel Gear B
-
17346-64027-1 NutNut
-
18362-64030-0 Bevel Gear CBevel Gear C
-
19350-64032-0 Washer 17.1-22-1.5Washer 17.1-22-1.5
-
20362-64211-2 Propeller ShaftPropeller Shaft
-
21362-64215-0 ClutchClutch
-
22350-64218-0 Pin Ø5-30Pin Ø5-30
-
23350-64219-0 SnapSnap
-
24332-64221-0 SpringSpring
-
25350-64222-1 Spring RetainerSpring Retainer
-
26350-64223-1 Push RodPush Rod
-
27362-60206-1 Water StrainerWater Strainer
-
28921503-0430 ScrewScrew
-
29930403-0400 Nylon Nut 4-P0.7Nylon Nut 4-P0.7
-
30369-60206-0 Water StrainerWater Strainer
-
31921803-0620 ScrewScrew
-
32334-65021-0 Water Pump ImpellerWater Pump Impeller
-
33350-65022-0 KeyKey
-
34350-65016-1 Pump Case (Upper)Pump Case (Upper)
-
35350-65011-1 Pump Case LinerPump Case Liner
-
36350-65014-0 Water Pipe Seal (Lower)Water Pipe Seal (Lower)
-
37350-65017-0 Pump Case (Lower)Pump Case (Lower)
-
38332-60223-0 Oil Seal 13.8-26-9.5Oil Seal 13.8-26-9.5
-
39336-62415-0 O-Ring 3.5-36O-Ring 3.5-36
-
40350-65025-0 Water Pump Guide PlateWater Pump Guide Plate
-
419101F4-5652 BoltBolt
-
42346-64081-0 Shim 35-41.9-0.1Shim 35-41.9-0.1
-
42346-64082-0 Shim 35-41.9-0.15Shim 35-41.9-0.15
-
42346-64083-0 Shim 35-41.9-0.3Shim 35-41.9-0.3
-
42346-64084-0 Shim 35-41.9-0.5Shim 35-41.9-0.5
-
43350-64301-0 Drive Shaft (S)
for Transom “S”Drive Shaft (S)
for Transom “S” -
43350-64302-0 Drive Shaft (L)
for Transom “L”Drive Shaft (L)
for Transom “L” -
43350-64303-0 Drive Shaft (Ul)
for Transom “UL”Drive Shaft (Ul)
for Transom “UL” -
449601-0-6302 Ball Bearing 6302Ball Bearing 6302
-
45350-64322-0 Gird PipeGird Pipe
-
46350-64326-0 GrommetGrommet
-
47398-66012-0 Cam Rod (S)
for Transom “S”Cam Rod (S)
for Transom “S” -
47398-66013-0 Cam Rod (L)
for Transom “L”Cam Rod (L)
for Transom “L” -
47398-66014-0 Cam Rod (Ul)
for Transom “UL”Cam Rod (Ul)
for Transom “UL” -
483C8-66011-0 Clutch CamClutch Cam
-
49951407-0312 Spring Pin 3-12Spring Pin 3-12
-
50398-66031-0 Cam Rod BushingCam Rod Bushing
-
51332-66021-0 O-Ring 2.4-5.8O-Ring 2.4-5.8
-
52336-62415-0 O-Ring 3.5-36O-Ring 3.5-36
-
53332-66033-0 StopperStopper
-
54910103-6512 BoltBolt
-
55930103-0800 NutNut
-
563P0-66233-0 Washer 8.1-16-1.5Washer 8.1-16-1.5
-
573BAB64516-1 Propeller Ass'y (8")
M18:UL, M15/9.9:L&UL STD 3X235X203Propeller Ass'y (8")
M18:UL, M15/9.9:L&UL STD 3X235X203 -
573BAB64518-1 Propeller Ass'y (9")
M18:S&L, M15/9.9:S STD 3X235X229Propeller Ass'y (9")
M18:S&L, M15/9.9:S STD 3X235X229 -
57362B64107-0 Propeller Ass'y
OPT 3X234X155Propeller Ass'y
OPT 3X234X155 -
573BAB64521-1 Propeller Ass'y (10")
OPT 3X235X254Propeller Ass'y (10")
OPT 3X235X254 -
573BAB64524-1 Propeller Ass'y (11.5")
OPT 3X235X292Propeller Ass'y (11.5")
OPT 3X235X292 -
583V9-87326-0 Propeller Hardware KitPropeller Hardware Kit
-
59362-64231-0 * Thrust Holder* Thrust Holder
-
60346-64121-5 * Propeller Nut* Propeller Nut
-
61346-64124-5 * Washer 12.5-32-2.5* Washer 12.5-32-2.5
-
62951503-0322 * Split Pin 3-22* Split Pin 3-22
