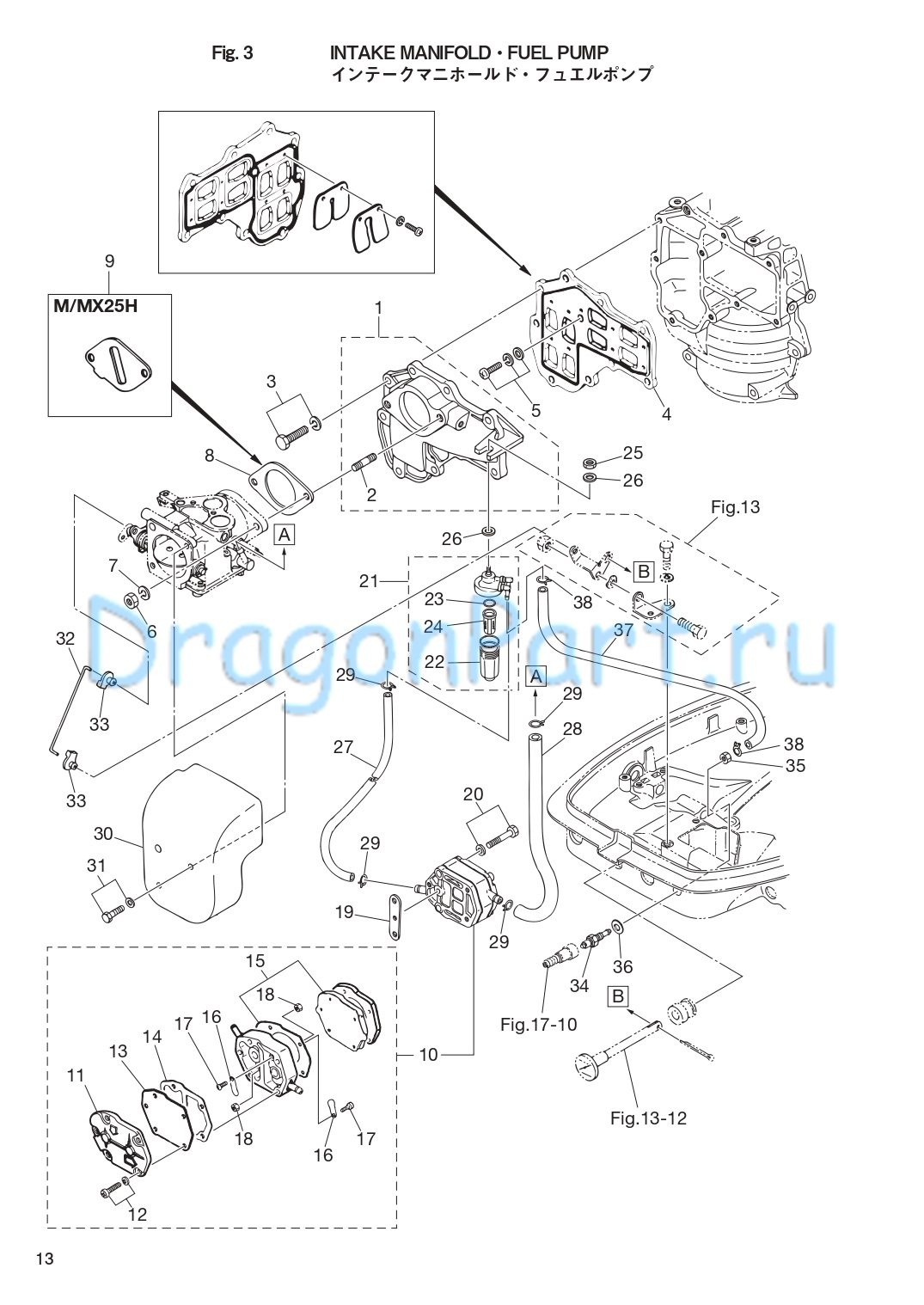

INTAKE MAINFOLD FUEL PUMP для Tohatsu 25JET - 2012 года выпуска`
-
№АртикулНазвание
-
1346B02010-1 INTAKE MANIFOLD ASSY
Black for M25/30H & 25JETINTAKE MANIFOLD ASSY
Black for M25/30H & 25JET -
2915321-0618 * STUD* STUD
-
3910121-6625 BOLTBOLT
-
4346-02100-2 REED VALVE ASSYREED VALVE ASSY
-
5921521-7616 SCREWSCREW
-
6930103-0600 NUTNUT
-
7941303-0600 SPRING WASHERSPRING WASHER
-
8346-02011-1 CARBURETOR GASKET
for M30H, MX30H & 25JETCARBURETOR GASKET
for M30H, MX30H & 25JET -
93P1-03536-0 RESTRICTOR
for M25H, MX25HRESTRICTOR
for M25H, MX25H -
10356-04000-1 FUEL PUMP ASSYFUEL PUMP ASSY
-
11334-04004-0 * PUMP COVER* PUMP COVER
-
129225F2-6528 * SCREW* SCREW
-
13334-04005-0 * PUMP DIAPHRAGM* PUMP DIAPHRAGM
-
14334-04007-0 * DIAPHRAGM GASKET* DIAPHRAGM GASKET
-
15356-04030-0 * DIAPHRAGM GASKET SET* DIAPHRAGM GASKET SET
-
16356-04044-0 * CHECK VALVE* CHECK VALVE
-
17921722-0306 * SCREW* SCREW
-
18930222-0300 * NUT* NUT
-
19346-04901-1 GASKETGASKET
-
20921503-6640 SCREWSCREW
-
213AD-02230-0 FUEL FILTER ASSYFUEL FILTER ASSY
-
223AD-02237-0 * CUP* CUP
-
233AD-02235-0 * O-RING* O-RING
-
243AD-02234-0 * FILTER* FILTER
-
25930103-0800 NUTNUT
-
26334-66233-0 WASHER 8.1-16-1.5WASHER 8.1-16-1.5
-
2798AB-50-160 HOSE
F/Filter - F/Pump 98AB-501000HOSE
F/Filter - F/Pump 98AB-501000 -
2898AB-50-230 HOSE
F/Pump - Carbureter 98AB-501000HOSE
F/Pump - Carbureter 98AB-501000 -
29338-02215-0 CLIP φ10CLIP φ10
-
30346-02411-1 INTAKE SILENCERINTAKE SILENCER
-
31910103-5614 BOLTBOLT
-
32346-67191-1 CHOKE RODCHOKE ROD
-
33346-67196-1 ROD SNAP 3-BROD SNAP 3-B
-
343B2-70260-1 FUEL CONNECTOR (MALE)FUEL CONNECTOR (MALE)
-
35332-70261-0 NUT 10-P1.25NUT 10-P1.25
-
36336-70112-0 GASKET 10.2-16-0.5GASKET 10.2-16-0.5
-
3798AB-50-110 HOSE
F/Connector - F/Filter 98AB-501000HOSE
F/Connector - F/Filter 98AB-501000 -
38338-02215-0 CLIP φ10CLIP φ10
