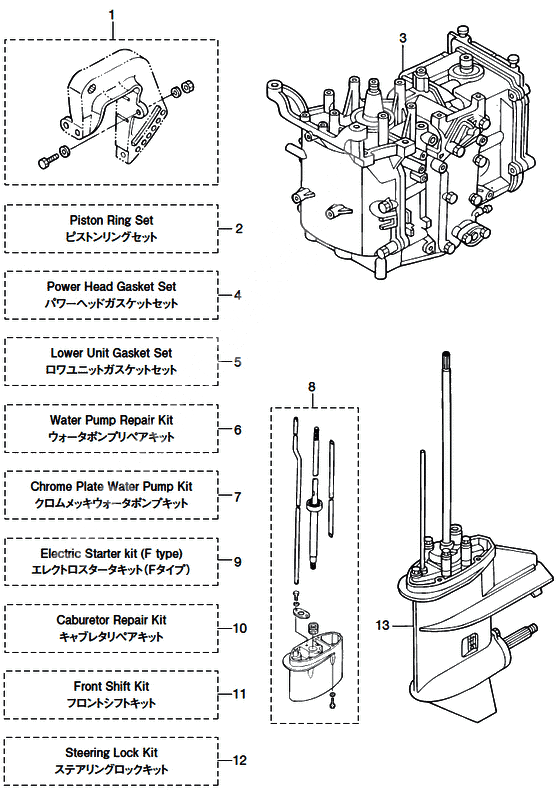

Assembly & kits для Tohatsu MFS9.8A3 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3V1-72120-0 Rigging bolt set
    STD
    Rigging bolt set
    STD
  • 1
    3V2-72120-0 Rigging bolt set eft/ept
    FOR EFT/EPT
    Rigging bolt set eft/ept
    FOR EFT/EPT
  • 2
    3V1-87123-0 Кольца поршневые
    STD
    Кольца поршневые
    STD
  • 2
    3V1-87124-0 Кольца поршневые
    OPT
    Кольца поршневые
    OPT
  • 3
    3V1B87090-7 Short block (8-9.8/4-st)
    8/9.8PS
    Short block (8-9.8/4-st)
    8/9.8PS
  • 4
    3V1-87121-0 Power Head Gasket Set
    Power Head Gasket Set
  • 5
    3B2-87321-3 Lower unit gasket kit 8/9.8b
    Lower unit gasket kit 8/9.8b
  • 3B2-87321-4 Lower unit gasket kit 8/9.8b
    Lower unit gasket kit 8/9.8b
  • 6
    3B2-87322-1 ウォ-タ-ポンプリペアキット
    ウォ-タ-ポンプリペアキット
  • 7
    3B2-65231-1 Water pump repair kit chrome 8 hp
    Water pump repair kit chrome 8 hp
  • 3B2-65231-2 Water pump repair kit chrome 8 hp
    Water pump repair kit chrome 8 hp
  • 8
    3V1Q87314-4 Extension housing kit ul (amb)
    FOR TRANSOM L
    Extension housing kit ul (amb)
    FOR TRANSOM L
  • 9
    3V2-76300-2 Electric start kit 8/9.8a2 a3 (f type)
    Electric start kit 8/9.8a2 a3 (f type)
  • 3V2-76300-3 Electric start kit 8/9.8a2 a3 (f type)
    Electric start kit 8/9.8a2 a3 (f type)
  • 10
    3V1-87122-0 Carburetor Rerair Kit
    Carburetor Rerair Kit
  • 11
    3V1Q80404-0 Front shift kit f8a a2 a3/9.8a a2 a3
    Front shift kit f8a a2 a3/9.8a a2 a3
  • 12
    3V1-62500-0 Steering lock kit (f8/9.8 ep/ept)
    Steering lock kit (f8/9.8 ep/ept)
  • 13
    3V1Q87301-3 Lower unit assy s (amb)
    FOR TRANSOM S
    Lower unit assy s (amb)
    FOR TRANSOM S
  • 3V1Q87301-5 Lower unit assy s (amb)
    Lower unit assy s (amb)
  • 13
    3V1Q87302-3 Lower unit assy l (amb)
    FOR TRANSOM L
    Lower unit assy l (amb)
    FOR TRANSOM L
  • 3V1Q87302-5 Lower unit assy l (amb)
    Lower unit assy l (amb)
