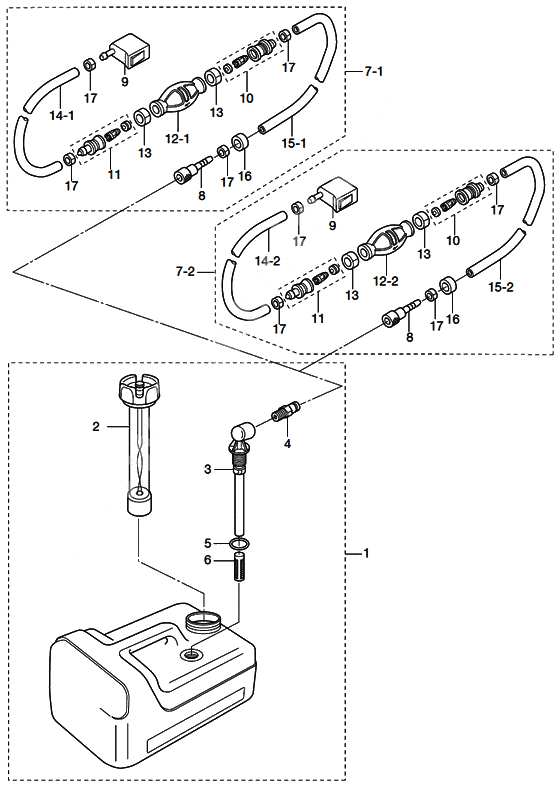

Fuel tank для Tohatsu MFS8A3 - 2011 года выпуска
-
№АртикулНазвание
-
13B2-70167-1 Fuel tank 12l (3.1 gal) epa cap (tohatsu)
TOHATSUFuel tank 12l (3.1 gal) epa cap (tohatsu)
TOHATSU -
3V1-70167-1 Fuel tank 12l (3.1 gal) epa cap (tohatsu)Fuel tank 12l (3.1 gal) epa cap (tohatsu)
-
13Y3-70167-1 Fuel tank 12l (3.1 gal) epa cap (nissan)
NISSANFuel tank 12l (3.1 gal) epa cap (nissan)
NISSAN -
23B2-70050-1 Fuel gauge vented cap 3 gal tankFuel gauge vented cap 3 gal tank
-
23AC-70052-1 Fuel tank cap assy (epa/carb)
NEW EPA/CARB STYLE CAPFuel tank cap assy (epa/carb)
NEW EPA/CARB STYLE CAP -
33B2-70155-0 Fuel PickupFuel Pickup
-
33V1-70157-0 Fuel pick-up assy w/gauge 3 gal.(epa)
12L/3GAL - NEW EPA/CARB STYLE PICK-UP W/ GAUGEFuel pick-up assy w/gauge 3 gal.(epa)
12L/3GAL - NEW EPA/CARB STYLE PICK-UP W/ GAUGE -
33AC-70157-0 Fuel pick-up assy w/gauge 6 gal.(epa)
26L/6GAL - NEW EPA/CARB STYLE PICK-UP W/ GAUGEFuel pick-up assy w/gauge 6 gal.(epa)
26L/6GAL - NEW EPA/CARB STYLE PICK-UP W/ GAUGE -
43E0-70270-0 New partNew part
-
53C7-70199-0 O-RingO-Ring
-
63C7-70113-0 FilterFilter
-
7-13H6-70200-1 Primer bulb assy (4-stroke - 4-30hp)
STDPrimer bulb assy (4-stroke - 4-30hp)
STD -
3H6-70200-2 Primer bulb assy (4-stroke - 4-30hp)Primer bulb assy (4-stroke - 4-30hp)
-
7-23AC-70200-3 Primer bulb assy (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL)Primer bulb assy (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL) -
3AD-70200-2 Primer bulb assy (low permeation)Primer bulb assy (low permeation)
-
83GF-70281-0 Fuel connectorFuel connector
-
9394-70250-0 Соединитель топливныйСоединитель топливный
-
103C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
113C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
12-13C7-70211-1 Primer BulbPrimer Bulb
-
12-23GF-70211-0 Primer bulb low permeation
LOW PERMEATION PARTS (FOR USA MODEL)Primer bulb low permeation
LOW PERMEATION PARTS (FOR USA MODEL) -
3GF-70211-1 Primer bulb low permeationPrimer bulb low permeation
-
133C7-70217-0 ClampClamp
-
14-198AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
14-23GF-70241-0 Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL)Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL) -
15-198AB70160-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD 98AB-701000 X2Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD 98AB-701000 X2 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
15-23GF-70240-0 Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL)Hose (low permeation)
LOW PERMEATION PARTS (FOR USA MODEL) -
163B7-70280-1 Mark, Fuel ConnectorMark, Fuel Connector
-
17332-70201-0 ClampClamp
