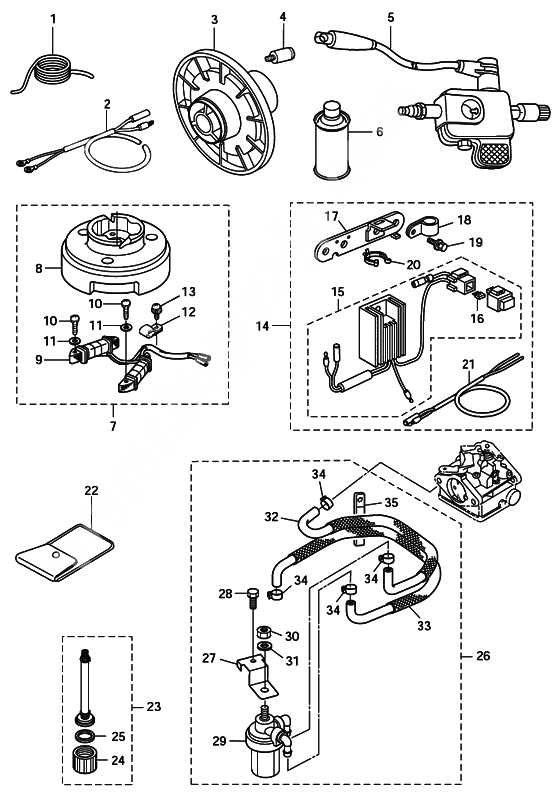

Optional parts - accessories для Tohatsu MFS5C - 2011 года выпуска
-
№АртикулНазвание
-
1312-72201-0 Safety RopeSafety Rope
-
2399-76130-0 Battery cable (1.716m)Battery cable (1.716m)
-
3369-64111-0 Test PropellerTest Propeller
-
4336-60007-0 New partNew part
-
53F3-72540-0 Ignition CheckerIgnition Checker
-
63AC-72326-0 Paint (aqua marine blue) 12 oz spray canPaint (aqua marine blue) 12 oz spray can
-
73GR-06128-0 Alternator kit f4/5/6cAlternator kit f4/5/6c
-
83AS-06001-0 Flywheel cup (mf54) for use w/alternatorFlywheel cup (mf54) for use w/alternator
-
93GR-06023-0 Alternator assy. f5/6c
12V60WAlternator assy. f5/6c
12V60W -
10921503-0525 Stud BoltStud Bolt
-
11940103-0500 WasherWasher
-
12369-06915-0 ClampClamp
-
13921521-6408 Stud BoltStud Bolt
-
143GR-76160-0 Rectifier kit f4/5/6cRectifier kit f4/5/6c
-
153GR-76060-0 Rectifier completeRectifier complete
-
163GR-76246-0 Fuse 10aFuse 10a
-
173GR-06900-0 Electric bracket assyElectric bracket assy
-
18345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
19910103-5614 BoltBolt
-
203BJ-84398-0 Lead wire band 135Lead wire band 135
-
21369-76161-0 Extension CordExtension Cord
-
223BJ-72100-0 Tool set (f15c/f20c)Tool set (f15c/f20c)
-
233GR-72406-0 Flushing attachment assy f2-20hpFlushing attachment assy f2-20hp
-
243GR-70212-0 Joint flushing assyJoint flushing assy
-
253T1-67147-0 Seal ringSeal ring
-
263GR-02217-0 Fuel filter kit f4/5/6cFuel filter kit f4/5/6c
-
273GR-63737-0 StayStay
-
28910103-5610 BoltBolt
-
29346-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
30930103-0800 NutNut
-
31940121-0800 WasherWasher
-
323LE-02160-0 Fuel hose w/protector
LOW PERMEATION PARTSFuel hose w/protector
LOW PERMEATION PARTS -
333JD-02160-0 Fuel hose w/protector
LOW PERMEATION PARTSFuel hose w/protector
LOW PERMEATION PARTS -
343AB-35143-0 Clip @ 9.5Clip @ 9.5
-
353T4-06972-1 ClampClamp
-
3T4-06972-0 ClampClamp
