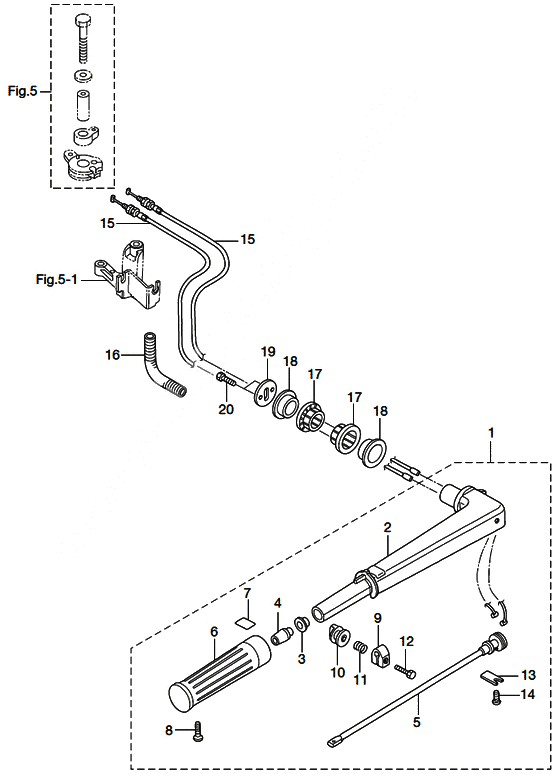

Tiller handle для Tohatsu MFS3.5B - 2011 года выпуска`
-
№АртикулНазвание
-
13V1Q63003-4 Handle assy (amb)Handle assy (amb)
-
23V1Q63011-3 Tiller handle (amb)Tiller handle (amb)
-
33H6-63510-0 BushingBushing
-
43H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
53V1-63041-0 Throttle ShaftThrottle Shaft
-
63R3-63012-0 GripGrip
-
73V9-72019-0 Label,ThrottleLabel,Throttle
-
89208E3-0518 ScrewScrew
-
920803-0518 ScrewScrew
-
93V1-63035-1 Friction PieceFriction Piece
-
103V1-63077-0 Adjusting NutAdjusting Nut
-
113V1-63036-0 Spring WasherSpring Washer
-
12910103-0625 BoltBolt
-
133B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
14921503-0612 Stud BoltStud Bolt
-
153V1-63600-0 Throttle WireThrottle Wire
-
163H9-70313-0 Protector,fuel PipeProtector,fuel Pipe
-
173AB-63102-0 Tiller handle bushingTiller handle bushing
-
183BR-63102-1 Handle bushing (plastic)
ø50-ø32-13.0Handle bushing (plastic)
ø50-ø32-13.0 -
193AB-63107-0 CoverCover
-
209101E3-0616 BoltBolt
-
910103-0616 BoltBolt
