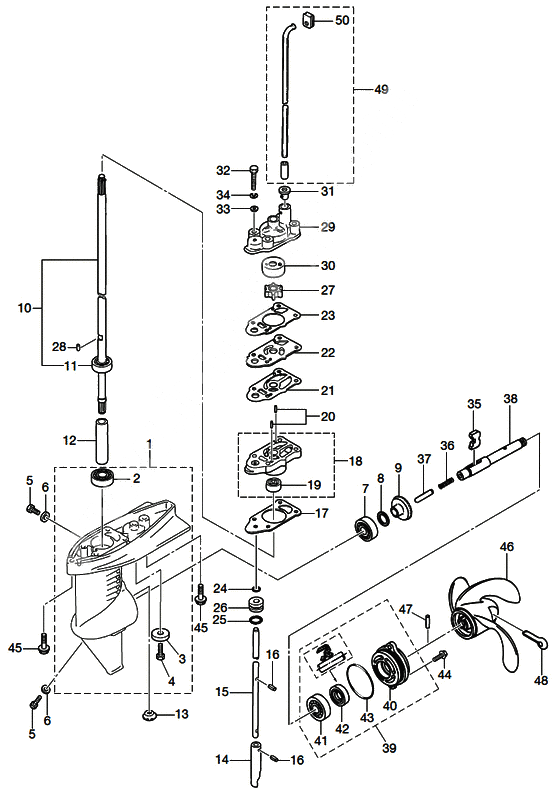

Gear case (drive shaft) для Tohatsu MFS2.5B - 2011 года выпуска

№

Артикул

Название
1

3BMQ60000-1 Gear case f2.5ab/3.5ab

Gear case f2.5ab/3.5ab

13 890 ₽
3BMQ60000-0 Gear case f2.5ab/3.5ab

Gear case f2.5ab/3.5ab

15 210 ₽
2

3AB-60213-0 Ball bearing 6000

Ball bearing 6000

2 100 ₽
3

338-60218-2 New part

New part

1 140 ₽
4

910103-0616 Bolt

Bolt

140 ₽
5

332-60005-2 Oil Plug Water Plug

Oil Plug Water Plug

1 050 ₽
6

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)

200 ₽
7

9601-0-6004 Ball Bearing

Ball Bearing

2 440 ₽
8

369-64014-0 Shim 21-28-0.1

Shim 21-28-0.1

660 ₽
8

369-64015-0 Shim 21-28-0.15

Shim 21-28-0.15

660 ₽
9

369-64010-2 Bevel Gear A Ass'y (with Bushing)

Bevel Gear A Ass'y (with Bushing)

7 890 ₽
10

3AB-64306-0 Drive shaft insin f2.5a/3.5a
FOR TRANSOM S

Drive shaft insin f2.5a/3.5a
FOR TRANSOM S

9 320 ₽
10

3AB-64307-0 Drive shaft inlin f2.5a/3.5a
FOR TRANSOM L

Drive shaft inlin f2.5a/3.5a
FOR TRANSOM L

9 160 ₽
11

3AB-60213-0 Ball bearing 6000

Ball bearing 6000

2 100 ₽
12

3F0-64321-0 Spacer 10.1-15-72

Spacer 10.1-15-72

1 230 ₽
13

369-64020-2 Bevel Gear B

Bevel Gear B

0 ₽
14

3F0-66011-0 Clutch Cam

Clutch Cam

2 020 ₽
15

3F0-66012-0 Cam rod s
FOR TRANSOM S

Cam rod s
FOR TRANSOM S

1 250 ₽
15

3F0-66013-0 Cam Rod L
FOR TRANSOM L

Cam Rod L
FOR TRANSOM L

1 290 ₽
16

951407-0308 Spring Washer

Spring Washer

120 ₽
17

3F0-65020-0 New part

New part

540 ₽
18

3H2-65040-1 3H2-65040-1

3H2-65040-1

6 320 ₽
19

3F0-60223-0 Oil Seal 10-22-8

Oil Seal 10-22-8

1 230 ₽
20

3B2-65022-0 New part

New part

560 ₽
21

3F0-65029-0 New part

New part

680 ₽
22

3AB-65025-0 WATER PUMP GUIDE PLATE

WATER PUMP GUIDE PLATE

1 050 ₽
23

3F0-65018-0 New part

New part

470 ₽
24

369-66021-1 O?????2.5-4.9

O?????2.5-4.9

320 ₽
25

301-66023-0 O-Ring

O-Ring

380 ₽
26

3F0-66031-0 Bushing Cam Rod

Bushing Cam Rod

800 ₽
27

369-65021-1 Крыльчатка водной помпы

Крыльчатка водной помпы

2 660 ₽
28

369-65022-0 Key water pump impeller

Key water pump impeller

270 ₽
29

3F0-65016-0 Pump Case

Pump Case

4 090 ₽
30

3F0-65011-0 Liner Pump Case

Liner Pump Case

1 540 ₽
31

3F0-65032-0 Grommet Lower Water Tube

Grommet Lower Water Tube

530 ₽
32

9161E3-0645 Bolt

Bolt

170 ₽
33

940103-0600 Washer

Washer

110 ₽
34

941303-0600 New part

New part

120 ₽
35

3F0-64215-0 Clutch

Clutch

1 600 ₽
36

3F0-64221-0 Spring Clutch

Spring Clutch

510 ₽
37

3F0-64223-0 Push Rod Clutch

Push Rod Clutch

1 100 ₽
38

3F0-64211-0 Propeller Shaft

Propeller Shaft

12 980 ₽
39

3F0Q87323-1 Propeller shaft housing assy

Propeller shaft housing assy

4 120 ₽
40

3F0Q60101-1 Propeller shaft housing

Propeller shaft housing

6 810 ₽
41

9601-0-6001 Ball Bearing

Ball Bearing

2 200 ₽
42

309-60111-0 Oil Seal 12-24-8

Oil Seal 12-24-8

1 010 ₽
43

345-65015-0 O-Ring

O-Ring

360 ₽
44

9101E3-5620 Bolt & washer

Bolt & washer

360 ₽
45

3AB-60001-1 Bolt 6-30 precoated

Bolt 6-30 precoated

290 ₽
46

3F0-64101-0 Prop 3 blade resin (7.4 dia. x 7 pitch) plastic
3x188x178 STD

Prop 3 blade resin (7.4 dia. x 7 pitch) plastic
3x188x178 STD

5 940 ₽
46

3F0B64512-0 3x188x145 OPT
3x188x145 OPT

3x188x145 OPT
3x188x145 OPT

22 520 ₽
46

309-64106-0 Prop 3 blade resin (7.4 dia. x 5.7 pitch)
3x188x145 OPT

Prop 3 blade resin (7.4 dia. x 5.7 pitch)
3x188x145 OPT

5 940 ₽
46

314-64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
3x188x110 OPT

Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
3x188x110 OPT

3 180 ₽
314B64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic

Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic

6 770 ₽
47

309-64126-1 309-64126-1

309-64126-1

780 ₽
48

951503-0435 New part

New part

270 ₽
49

3AB-65191-0 Water pipe insin f2/3.5a
FOR TRANSOM S

Water pipe insin f2/3.5a
FOR TRANSOM S

1 910 ₽
49

3AB-65192-0 Water pipe inlin f2.5a/3.5a
FOR TRANSOM L

Water pipe inlin f2.5a/3.5a
FOR TRANSOM L

2 180 ₽
50

3AB-65031-0 Grommet water pipe (upper)

Grommet water pipe (upper)

800 ₽
